CODE: CH7485

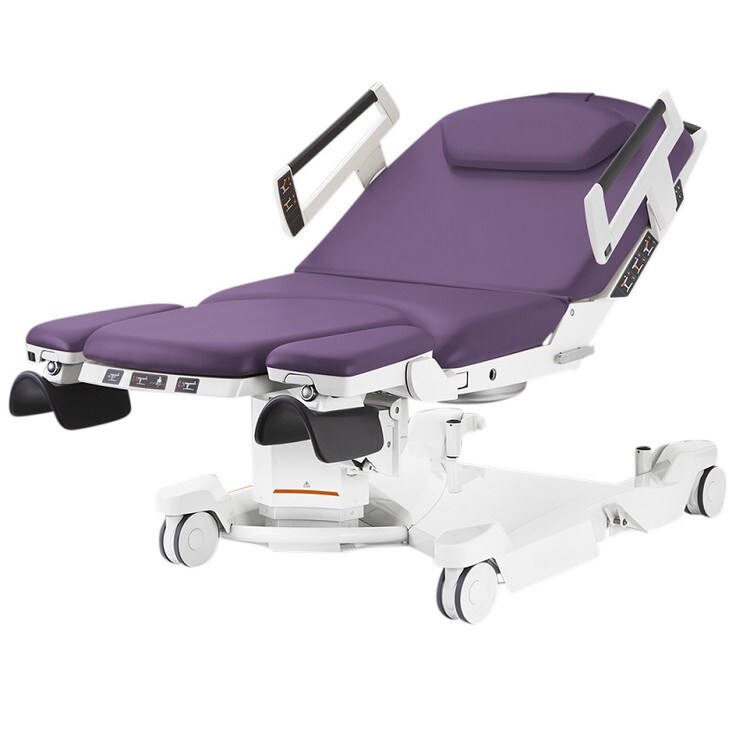

Linet Ave 2 Birthing Bed

The AVE 2 birthing bed brings expectant mothers maximum safety and comfort. Thanks to the AVE 2, the birth takes place naturally according to their expectations. For healthcare staff the bed is a reliable and practical tool which improves the quality and facilitates the care of the woman in labour at all stages of birth. It creates a feeling of a pleasant and safe environment for the woman in labour and family members.

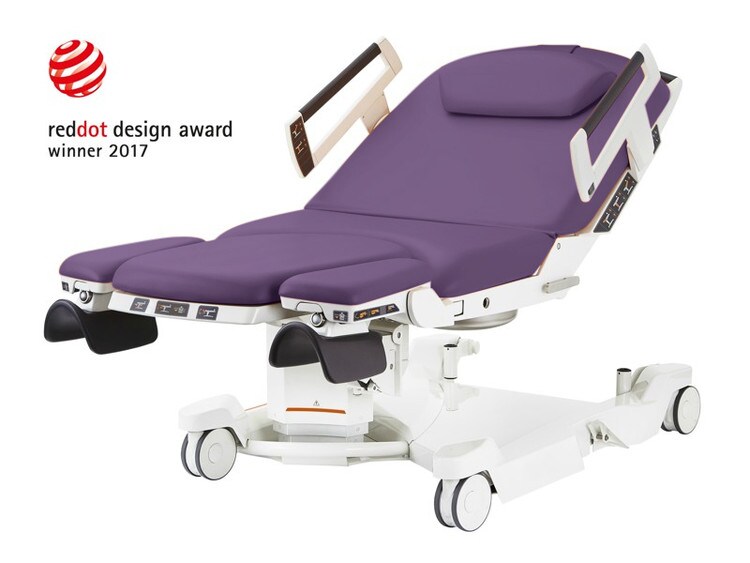

  • Attractive and functional design
  • Women in labour can freely choose their birthing position

High Adjustment

  • Innovative telescopic solution provides extra low height for accessing the bed safely and extra height for treatment.
  • Extra low 600 mm height gives additional assurance to woman in labour accessing the bed and suitable for labour exercises.
  • Max height 1050 mm for perfect position during perineal repair.

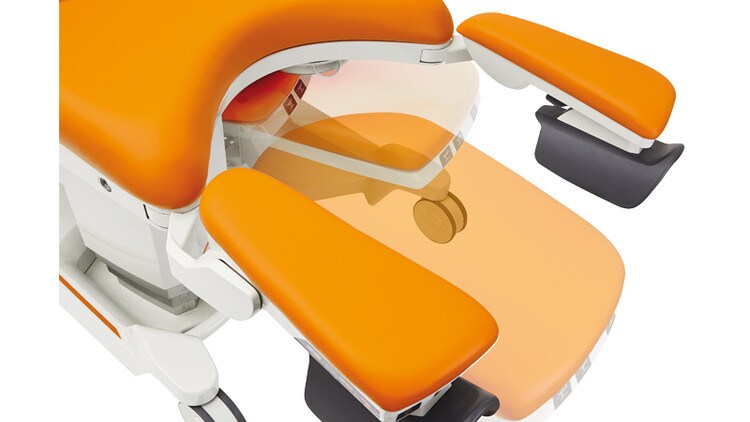

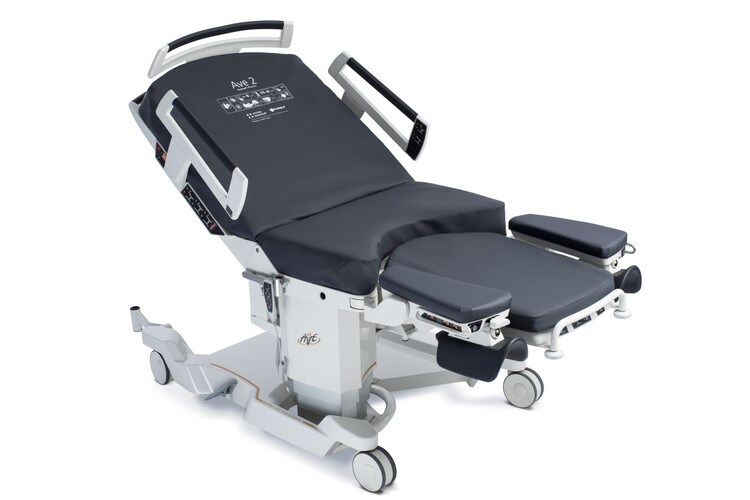

Retractable foot section

  • A swivel mechanism hides the foot section fast and easy for delivery. Remains attached to bed, no storage on the floor.
  • Slide up and get the bed quickly into the horizontal position while making use of a high load capacity of the section.

Leg rests

  • Firm leg rests enable the care team to respond very quickly and effectively to different situations which may occur during the delivery.
  • When retracting the leg rests, doctor or nurse has easy access to the mother in labour.
  • Leg rest height can be adjusted to the bodily proportions of the mother in labour.

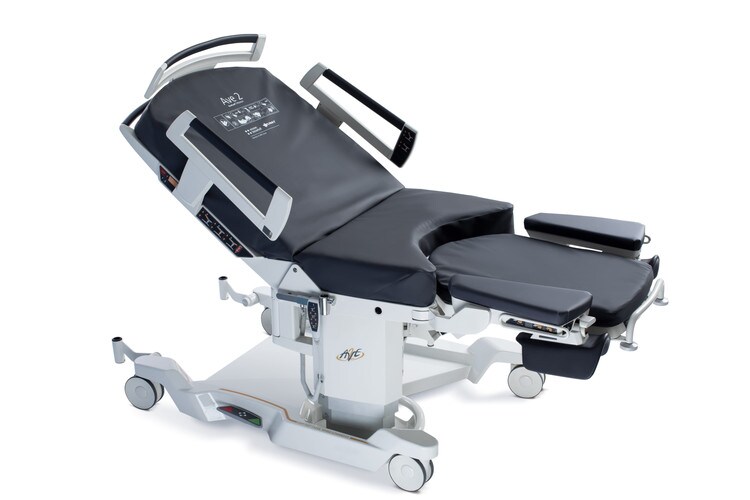

Independent seat tilt

  • Unique oval shape creates space needed for perineal access and fits close to the birthing tub minimising transfer gaps. There is independent motorised pelvic tilt for better coccyx elevation.

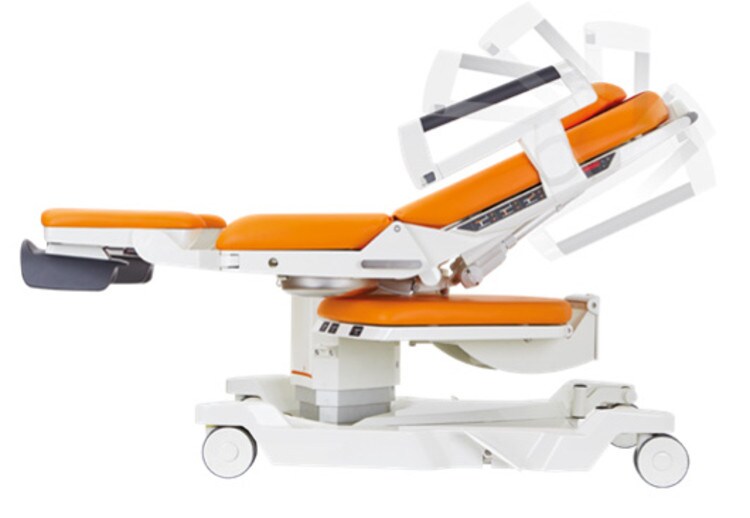

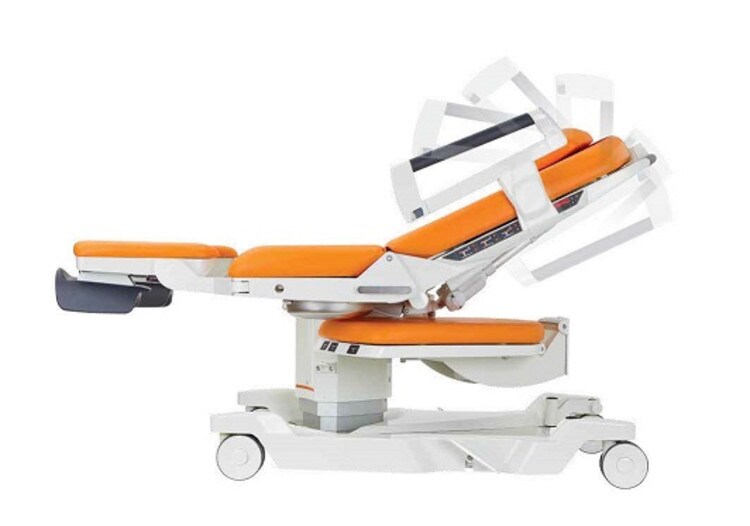

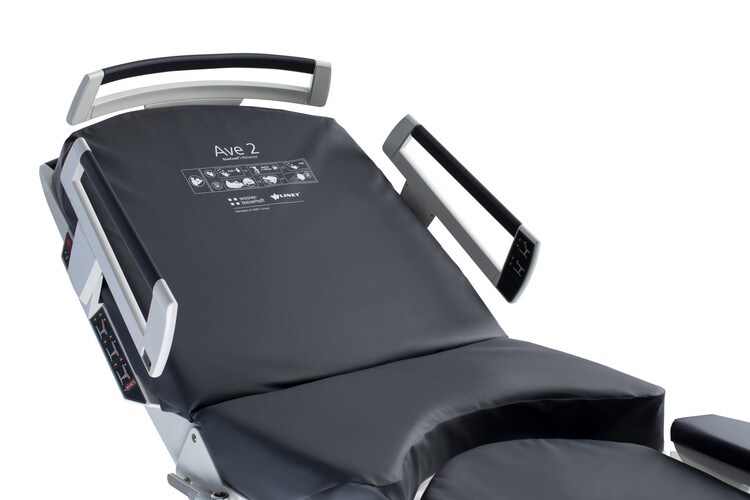

Siderails

  • Side rails with control panel easily integrated and concealable when transferring patients from one bed to another. Silent and easy turning with one hand. No additional space needed beside the bed, serves as support to help patients sit up.

Simple Controls

  • Integrated control panel with clear pictograms and symbols for woman in labour and nursing staff. Nurses control locking of controlling movements.

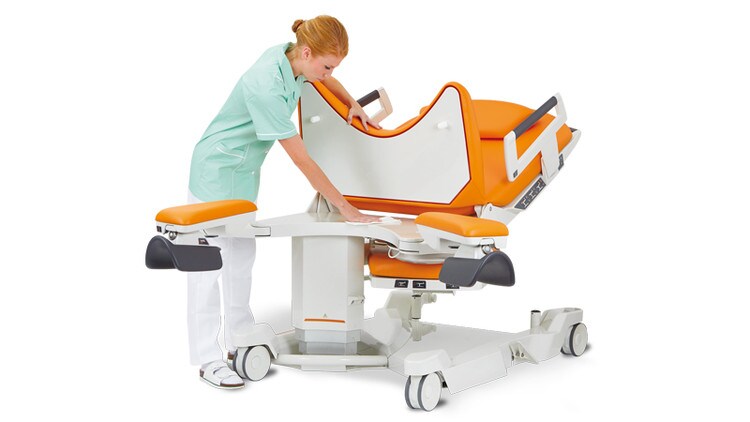

Hygiene and safety

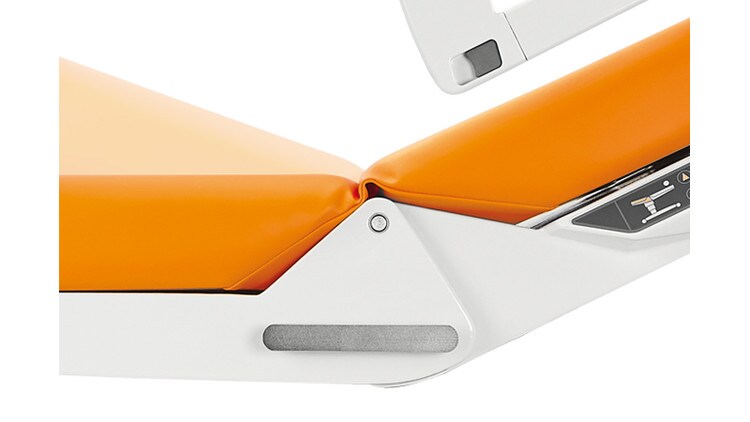

  • High hygienic standard and compact construction of parts of the rest area and plastic cover of the bed base reduce time needed for cleaning.
  • Firm construction, the birthing bed contains no cutting points or sharp edges, which increases the safety of the attending personnel.

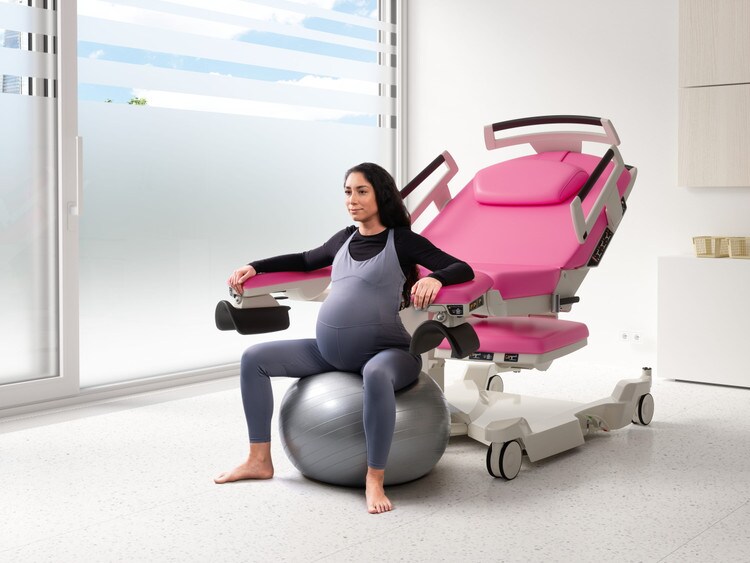

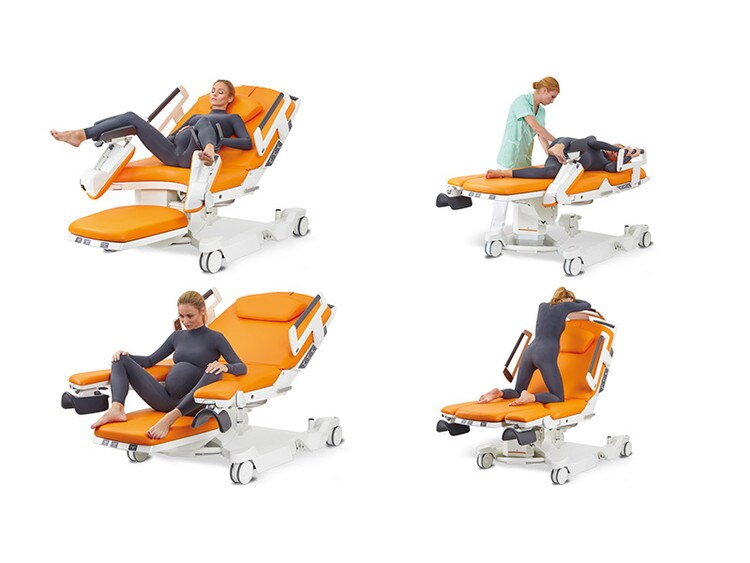

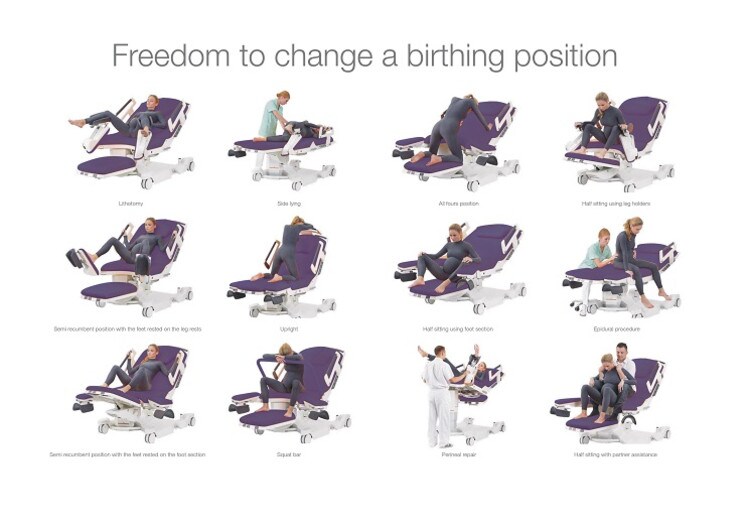

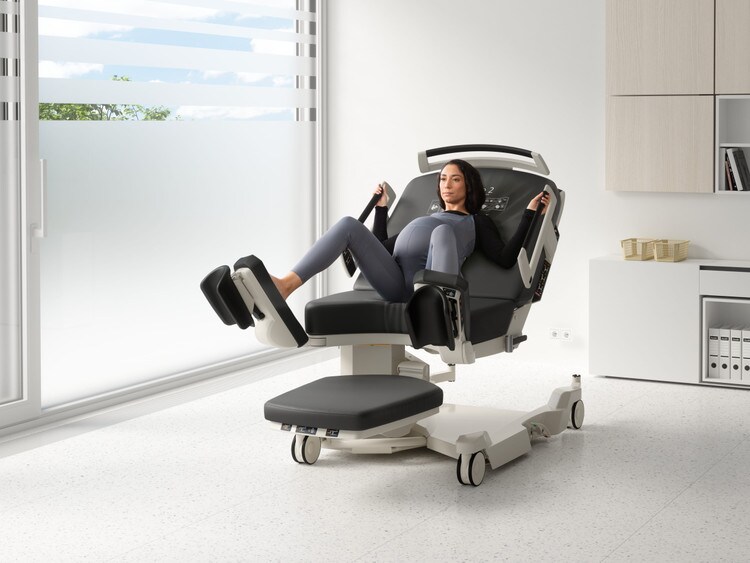

Choice of birthing positions

  • Yes to natural childbirths. The woman in labour can choose a suitable position during labour thanks to the AVE 2 bed.
Code:CH7485
Total length of the lying area (mm):2122
Minimum length in the default setting (mm):1570
Overall width (mm):980
Castor size (mm):150
Minimum height (mm):600
Maximum height (mm):1050
Back section:-10°/+70°
Seat section:0°/+18,5°
Trendelenburg position:0°/-10°
Leg rests vertical:0°/+135°
Leg rests horizontal:0°/+60°
Foot section adjustment angle:0°/-22°
Maximum patient load (kg):240
Overall product weight (kg):245
