CODE: CH7733

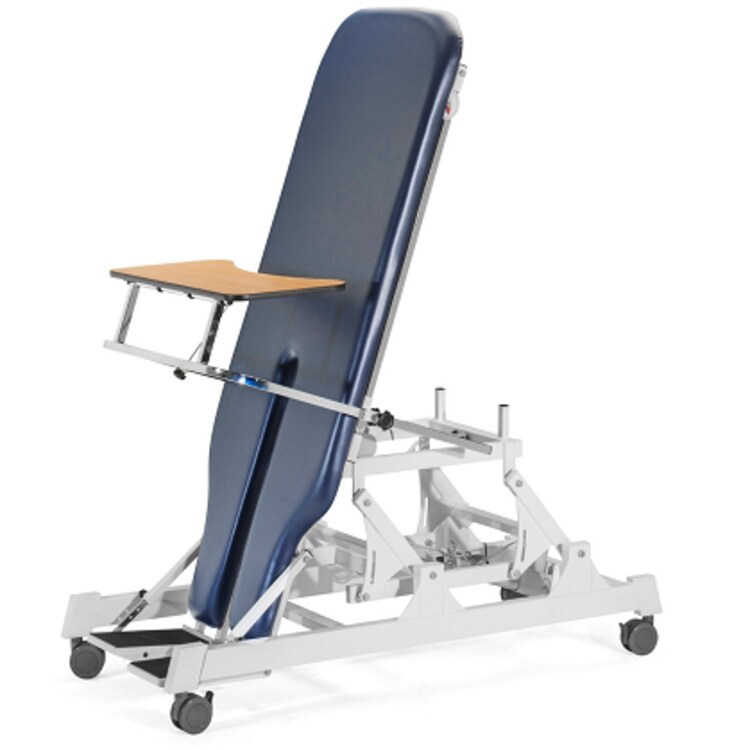

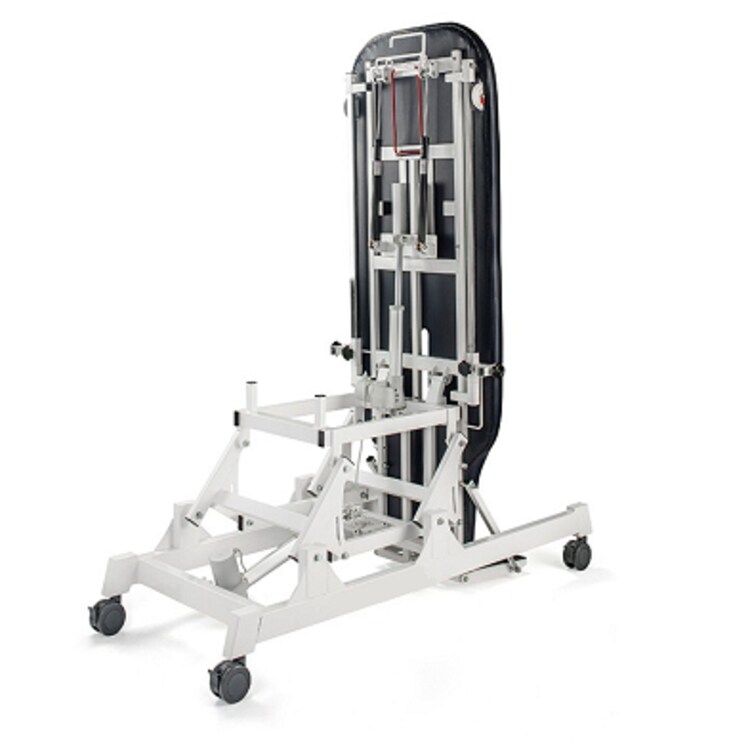

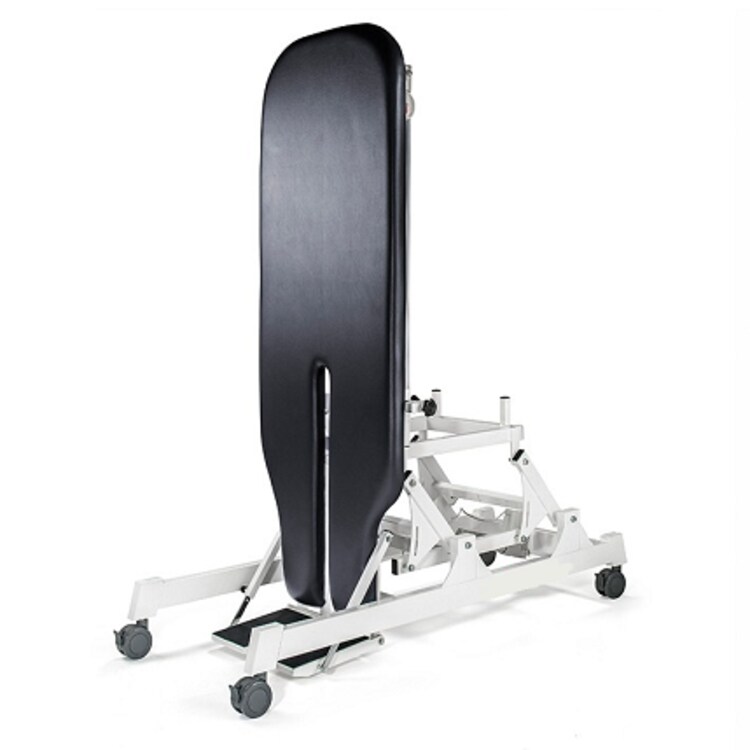

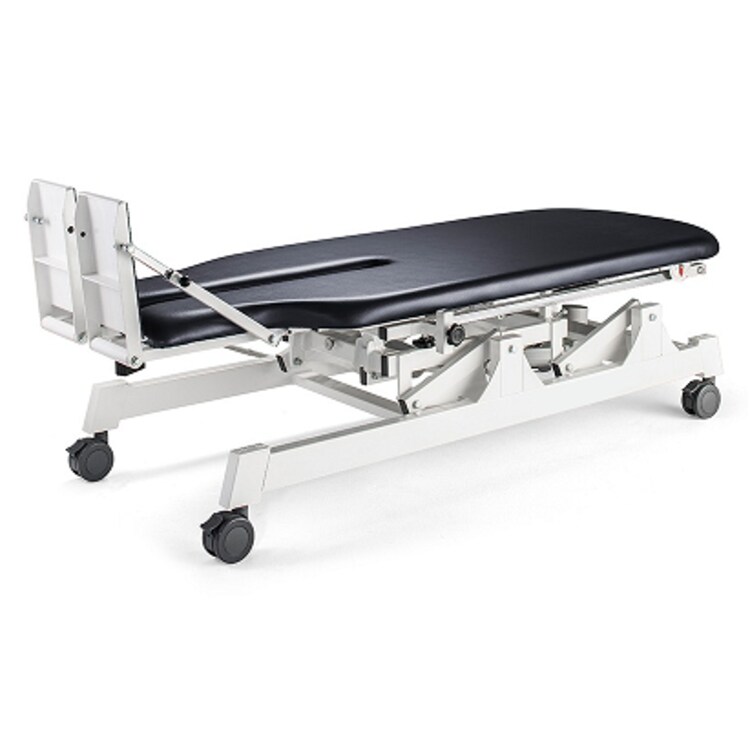

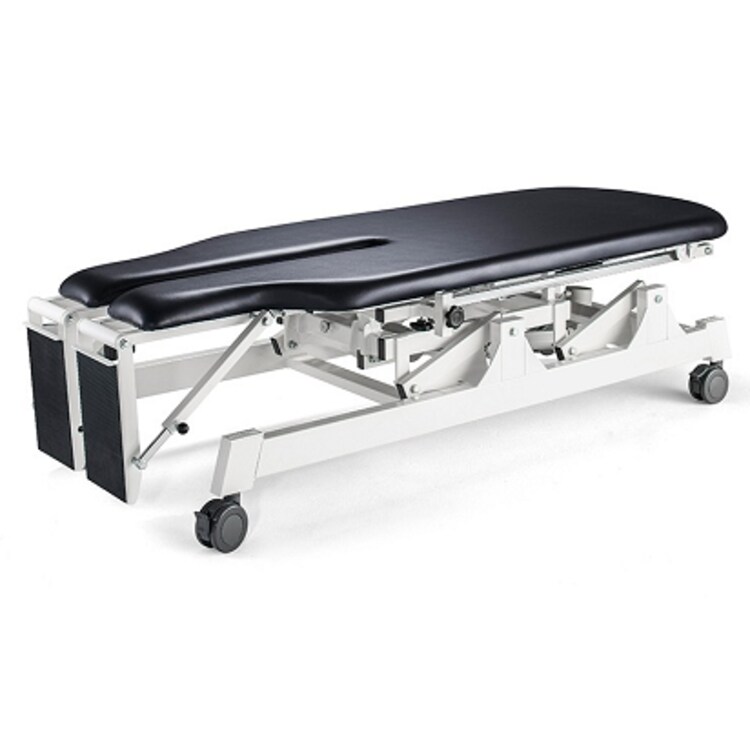

Vita Tilt Table
- Dual motor, electric hi-lo and electric tilt
- Includes Patient Hand Therapy/Activity Table
- Retractable heavy duty castors
- Weight Capacity: 225kgs
- Includes patient straps
- German Motors
- Epoxy powder coated frame
- Warranty: 10 years frame, 5 years electrics
| Code: | CH7733 |

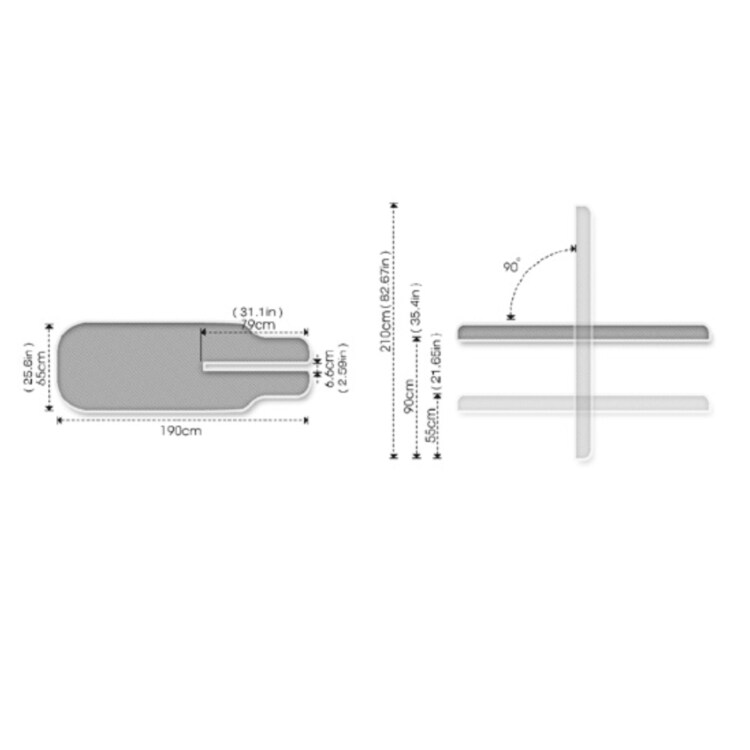

| Minimum height (mm): | 550 (21.65 inches) |
| Maximum height (mm): | 900 (35.43 inches) |
| Top height at 90 degrees (mm): | 2100 (82.67 inches) |
| Table top width (mm): | 650 (25.59 inches) |
| Total length (mm): | 1900 (74.80 inches) |
| Tilt angle: | 0 to 90 degrees |
| Lift mechanism: | Electric |
| Breathing hole/plug: | N/A |
| Castors w/h swivel lock & brake: | 4 |
| Weight rating (max. load) (kg): | 225 (496 lbs) |
| Net weight (kg): | 89.5 |
| Gross weight (kg): | 104.8 |
| Package dimension (mm): | 2090 x 850 x 590 |
| Electrical data | |
| Control box input voltage & rating: | 100–240VAC, 50/60Hz 2A |
| Control box output voltage: | DC 32V, 80VA |
| Actuator input voltage: | DC 24V |
| Duty cycle: | Max. 10% 2min. ON / 18min. OFF |
| Max. load: | Push 8000N |
| Max. current: | Max. 6A |
| CERTIFIED TO AAMI / CSA / IEC / EN STD | |
| AAMI ES 60601-1, CSA-C22.2 NO. 60601-1 | |
| IEC 60601-1, EN 60601-1 | |
| The electrical components used are approved by IEC 60601-1 | |
