CODE: CH9700

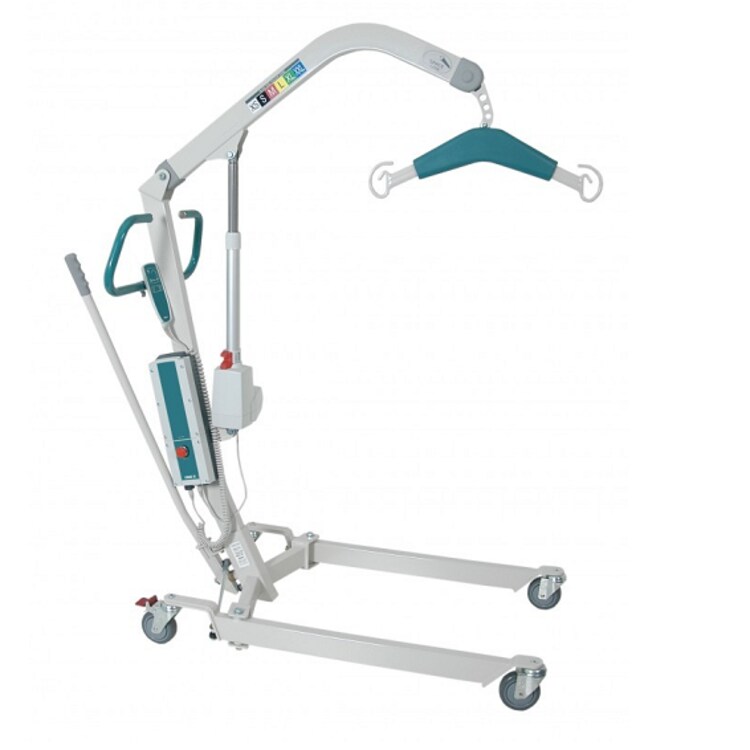

150kg Hoist Manual Leg Spread
The lightweight, compact patient lifter hoist is an easy-to-use, everyday lifter that utilises SPACE LINK Technology that optimises patient space by increasing the maximum lifting height of the hoist and enhancing floor lift capability.
SPACE LINK™ TECHNOLOGY

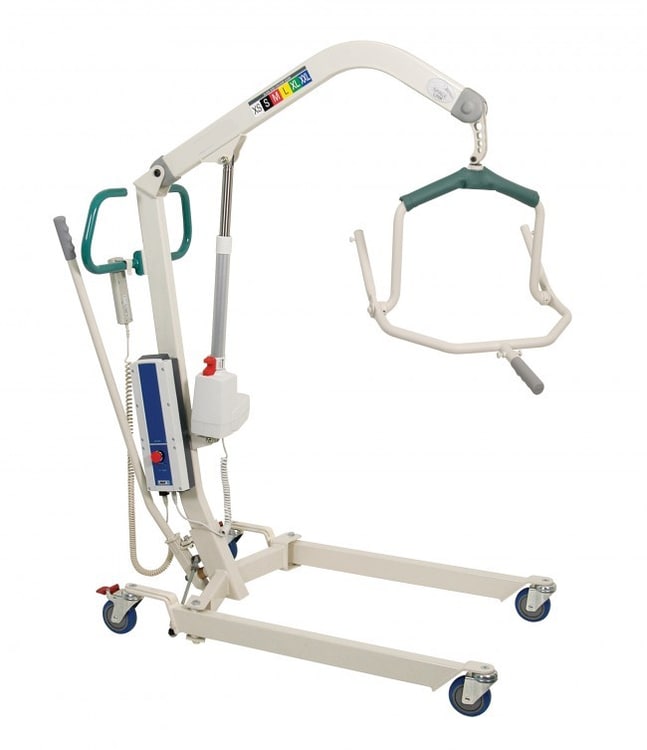

The SPACE LINK Technology is a breakthrough for optimising patient space as it increases the maximum lifting height of the hoist. It also enhances floor lift capability and is compatible with both standard spreader bar and pivot frames.
- Lightweight, compact mobile patient lifting hoist
- Innovative and ergonomic design
- Utilises SPACE LINK Technology for superior patient lifting space
| Code: | CH9700 |
| SWL (kg): | 150 |
| Base length (mm): | 1005 |
| External base width (mm): | 605 |
| Internal base width closed (mm): | 530 |
| Internal base width open (mm): | 1010 |
| Base width adjustment: | 3 Position Manual |
| Under bed clearance (mm): | 125 |
| Minimum height spreader bar (mm): | 340 |
| Maximum height spreader bar (mm): | 1685 |
| Average lift range (mm): | 930 |
| Lifter weight (kg): | 39 |
| Minimum storage height (mm): | 1235 |
| Under base height (mm): | 50 |
| Max. hoist reach (mm): | 875 |
| Min. hoist reach (mm): | 555 |
| Max. hoist reach at max. height (mm): | 555 |
| Min. hoist reach at min. height (mm): | 525 |
| Turning radius (mm): | 1080 |
| Mass of heaviest part (kg): | 16.7 (mast assembly) |
