CODE: CH9730L

General Purpose Sling - Mesh (Large)

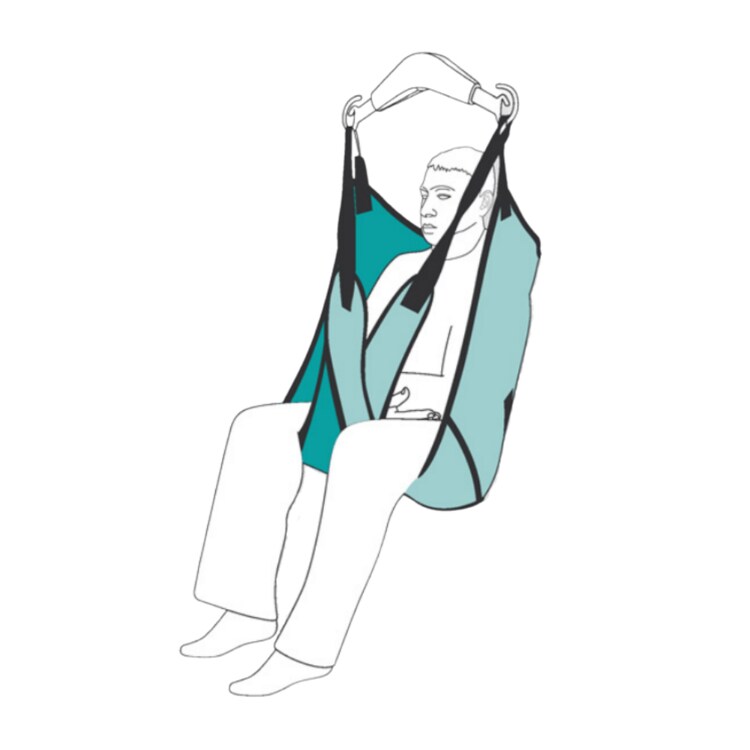

  • Sling is easily fitted to a patient in bed or a chair
  • Provides easy fitting and good support for patients with some upper body control.
  • Recommended for lifting from the floor and general lifting of the less secure patient.
  • Material: Mesh
  • Size: Large
  • Top strap: 110mm, 280mm, 440mm
  • Leg strap: 110mm, 280mm, 440mm

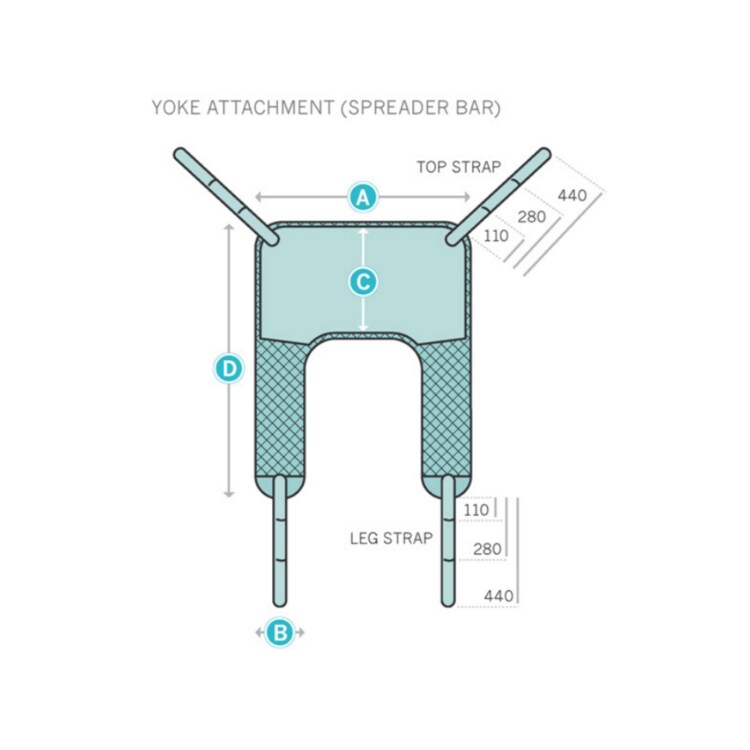

Code:CH9730XSCH9730SCH9730MCH9730LCH9730XLCH9730XXL
Size:Extra SmallSmallMediumLargeExtra LargeExtra Extra Large
Material:MeshMeshMeshMeshMeshMesh
A (mm):790790890111012401400
B (mm):210230240260270290
C (mm):470460530650730750
D (mm):112011301190139015201590
Top strap (mm):110, 280, 440110, 280, 440110, 280, 440110, 280, 440110, 280, 440110, 280, 440
Leg strap (mm):110, 280, 440110, 280, 440110, 280, 440110, 280, 440110, 280, 440110, 280, 440
