CODE: CH9731XL

General Purpose Sling - Fabric (Extra Large)

  • Sling is easily fitted to a patient in bed or a chair
  • Provides easy fitting and good support for patients with some upper body control.
  • Recommended for lifting from the floor and general lifting of the less secure patient.
  • Material: Fabric
  • Size: Extra Large
  • Top strap: 110mm, 280mm, 440mm
  • Leg strap: 110mm, 280mm, 440mm

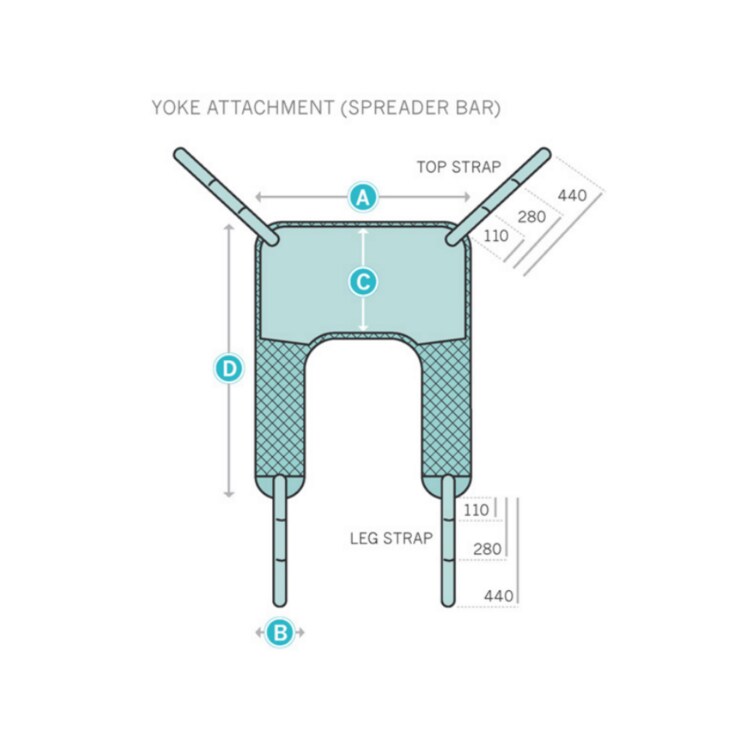

Code:CH9731XSCH9731SCH9731MCH9731LCH9731XLCH9731XXL
Size:Extra SmallSmallMediumLargeExtra LargeExtra Extra Large
Material:FabricFabricFabricFabricFabricFabric
A (mm):790790890111012401400
B (mm):210230240260270290
C (mm):470460530650730750
D (mm):112011301190139015201590
Top strap (mm):110, 280, 440110, 280, 440110, 280, 440110, 280, 440110, 280, 440110, 280, 440
Leg strap (mm):110, 280, 440110, 280, 440110, 280, 440110, 280, 440110, 280, 440110, 280, 440
