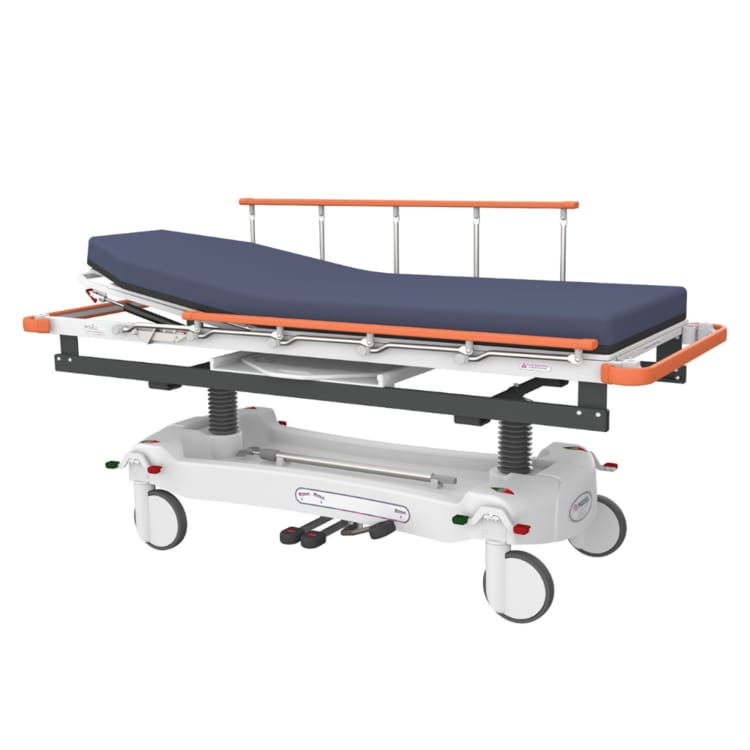

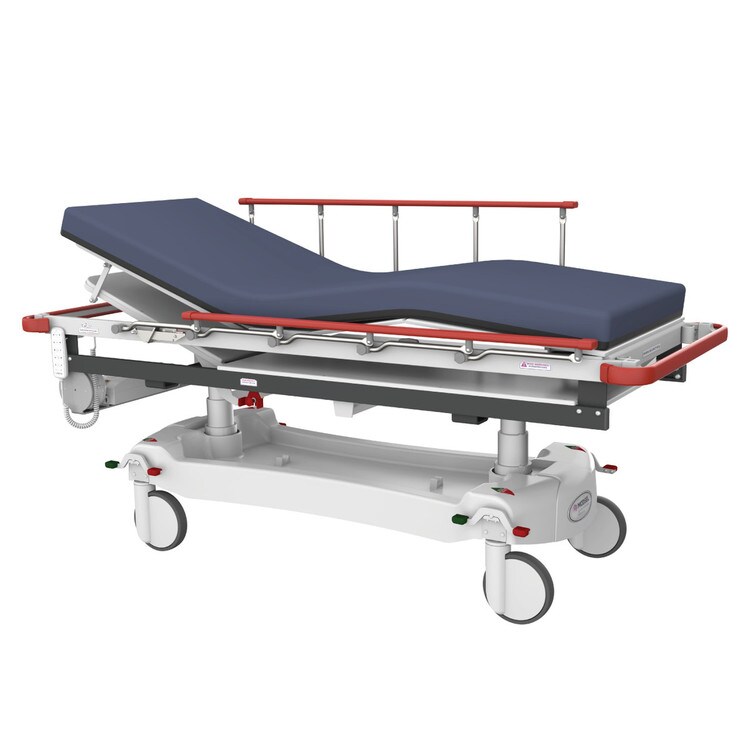

Contour Multi-X Patient Trolley
A trauma x-ray stretcher with ability to custom design and build to adapt to any emergency system.
This stretcher allows our unique InfineX* tracking which gives totally unobstructed head to toe clearance for effortless and efficient x-ray positioning, with an electric backrest that can raise separately to the cassette support surface. We can help you get the most out of your expensive x-ray systems by building to suit the brand and equipment in use. Tailor make the Contour Multi-X with height range choices and shorter, longer, narrower or wider top sizes. Put safety first and select from a range of dropside styles to suit the department requirements. There is a high level of customisation possible on these Modsel trauma stretchers with many accessory mounting options and solutions.
*Patent pending.
- Fully customisable x-ray trolley

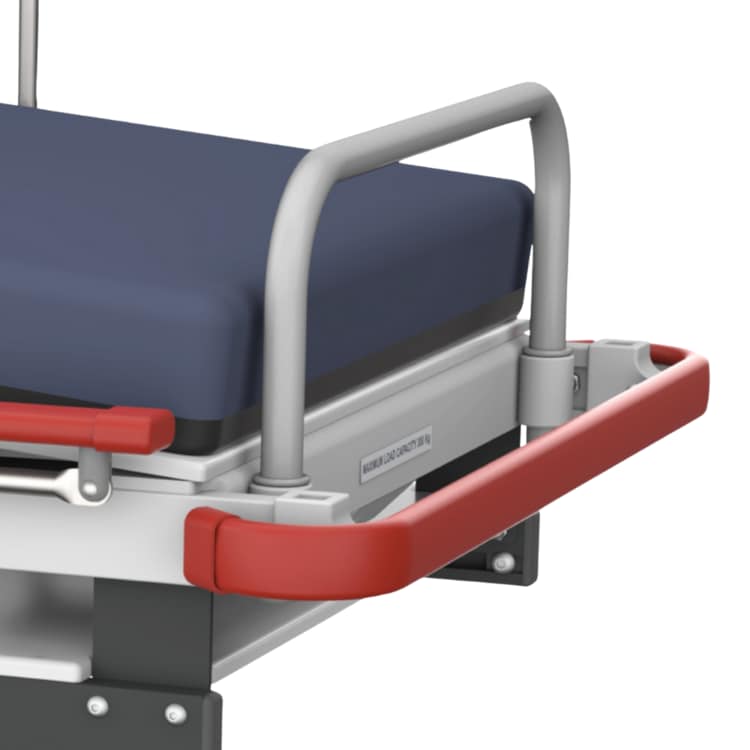

- A variety of dropside options
- Emergency CPR backrest release
- 15° head and foot down Trendelenburg
- Electric and hydraulic versions available
- 300kg safe working load
- Electric height ranges: 545 - 915 (standard) or 625 - 995mm
- Hydraulic height ranges: 630 - 860, 665 - 930 (standard) or 730 - 1060mm
- 200mm castors and Ezi-Trak 5th wheel steering
- 2135 x 815mm overall size
- 705 narrow and 965mm wide top options
- Includes foot end rail & electric knee break
- Choice of 7 dropside armrest/end rail colours for easy identification: Forest Green, Sunny Orange, Flame Red, Pastel Blue, Midnight Blue, Deep Violet, and Hot Pink
- MADE IN AUSTRALIA
Code: | CNTMX-E |
Dimensions (mm): | 2138 L x 815 W |
Mattress size (mm): | 1900 L x 680 W |
SWL (kg): | 300 |
Castor size (mm): | 200 |
Electric height ranges (mm): | 545-915 (standard) or 625-995 |
Narrow top option (mm): | 705 |
Wide top option (mm): | 965 |
Trendelenburg, head and foot down: | 15° |
Includes: | Foot end rail & electric knee break |
Colours: | Forest Green, Sunny Orange, Flame Red, Pastel Blue, Midnight Blue, Deep Violet, Hot Pink |
