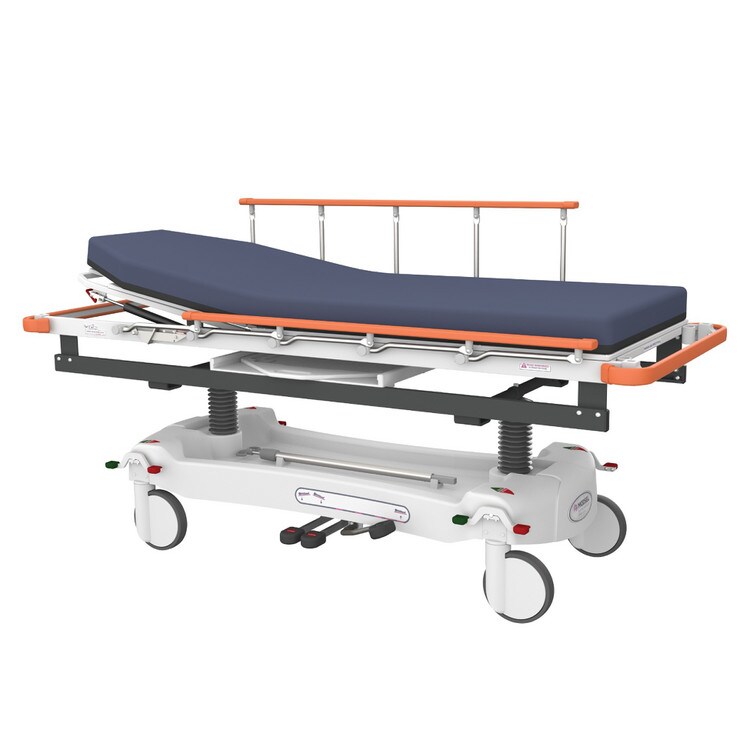

Contour Multi-X Patient Trolley - Hydraulic

A trauma x-ray stretcher with ability to custom design and build to adapt to any emergency system.

This stretcher allows our unique InfineX* tracking which gives totally unobstructed head to toe clearance for effortless and efficient x-ray positioning, with a hydraulic backrest that can raise separately to the cassette support surface. We can help you get the most out of your expensive x-ray systems by building to suit the brand and equipment in use. Tailor make the Contour Multi-X with height range choices, shorter, longer, narrower and wider top sizes. Put safety first and select from a range of dropside styles to suit the department requirements. There is a high level of customisation possible on these Modsel trauma stretchers with many accessory mounting options and solutions.

• Fully customisable x-ray trolley
• A variety of dropside options
• Hydraulic backrest raise and lower
• 15° head and foot down Trendelenburg
• 300kg safe working load
• Hydraulic height ranges: 630 - 860, 665 - 930 (standard) or 730 - 1060mm
• 200mm castors and Ezi-Trak 5th wheel steering
• 2135 x 815mm overall size
• 705 narrow and 965mm wide top options
• Choice of 3 dropside armrest/end rail colours for easy identification: Flame Red, Midnight Blue, Deep Violet
• MADE IN AUSTRALIA
