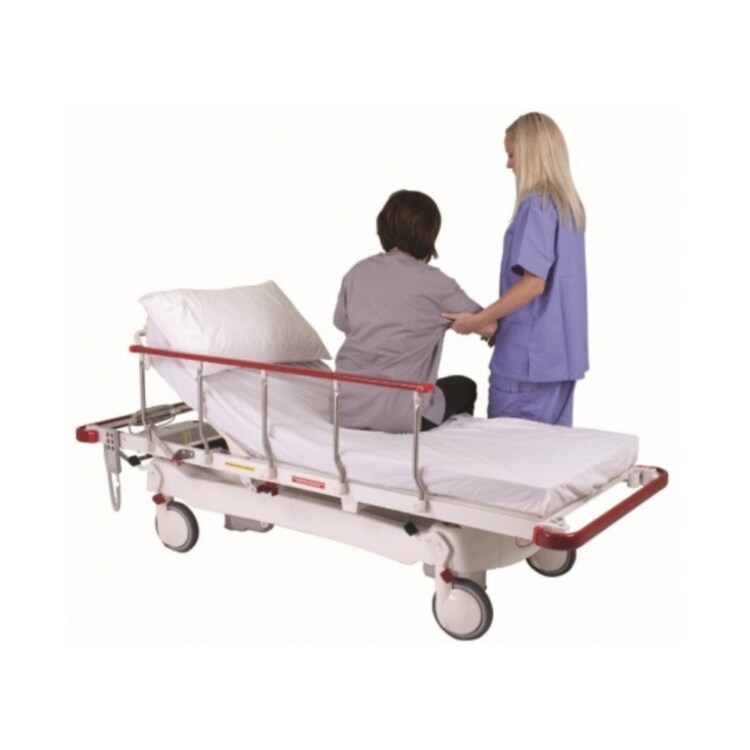

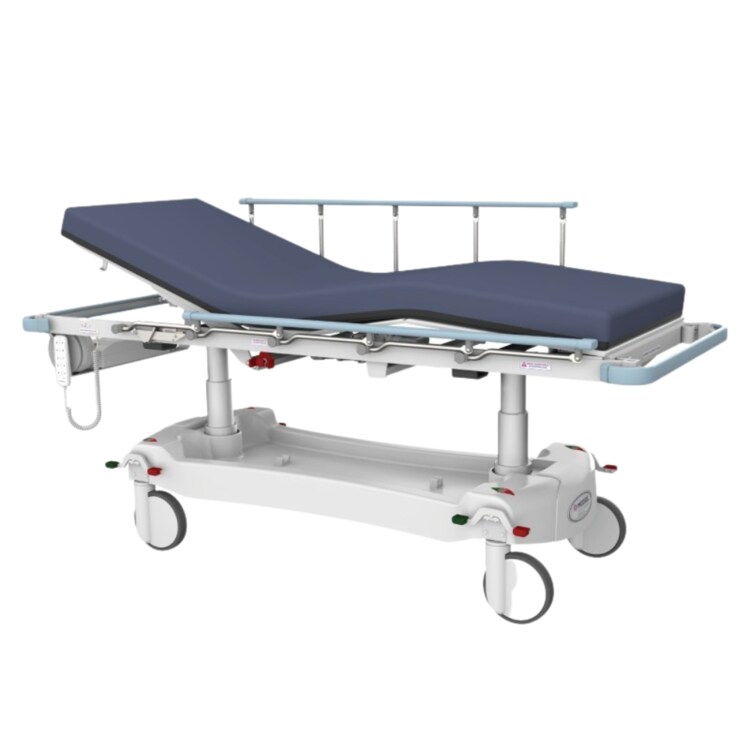

Contour Classic Electric Patient Trolley

The most flexible custom design platform available for a transport and recovery stretcher.

The most flexible platform of all our stretcher range. The twin column design allows for several height range choices - we can build in a low height range for patient egress care or higher height ranges for better equipment or surgeon access with less strain during procedures.

Tailor make the Contour Classic with shorter, longer, narrower and wider top sizes and select from a range of dropside styles to suit specialised procedures or the patient type you are working with. To simply put it, there is a high level of customisation possible with many accessory mounting options and solutions.

  • Fully customisable stretcher
  • A variety of dropside options
  • Emergency CPR backrest release
  • 15° head and foot down Trendelenburg
  • 300kg safe working load
  • Electric height ranges: from 440 - 810 (standard) up to 540 - 910mm
  • 200mm castors and Ezi-Trak 5th wheel steering
  • 2135 x 815mm overall size
  • 705 narrow and 965mm wide top options

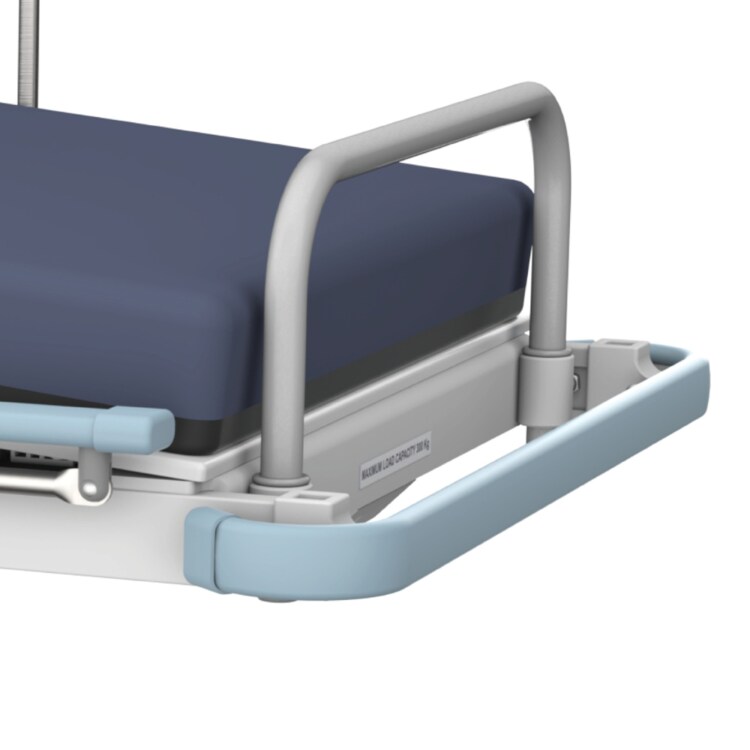

  • Includes foot end rail & electric knee break
  • Choice of 7 dropside armrest/end rail colours for easy identification: Forest Green, Sunny Orange, Flame Red, Pastel Blue, Midnight Blue, Deep Violet, and Hot Pink
Length overall (mm):2135
Width overall (mm):815 (standard)
Mattress (mm):1900 L x 680 W (standard)
Max. load (kg):300
Castor size (mm):200
Electric height ranges (mm):440-810 (standard), up to 540-910
Wide top option (mm):965
Narrow top option (mm):705
Colours:Forest Green, Sunny Orange, Flame Red, Pastel Blue, Midnight Blue, Deep Violet, Hot Pink
