CODE: CNTRHPT

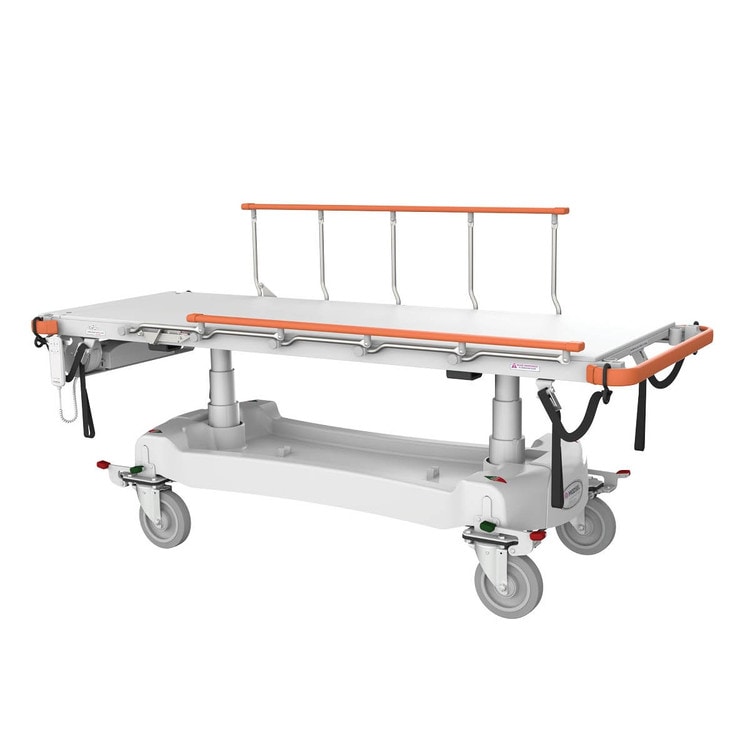

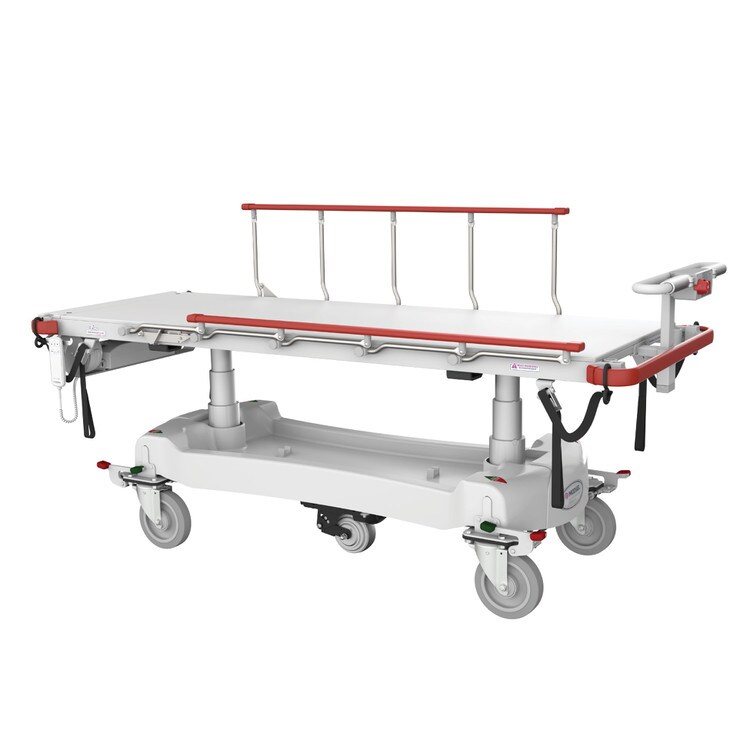

Contour Heli Patient Transport Trolley

A stretcher designed to reduce helicopter patient transfer effort outdoors.

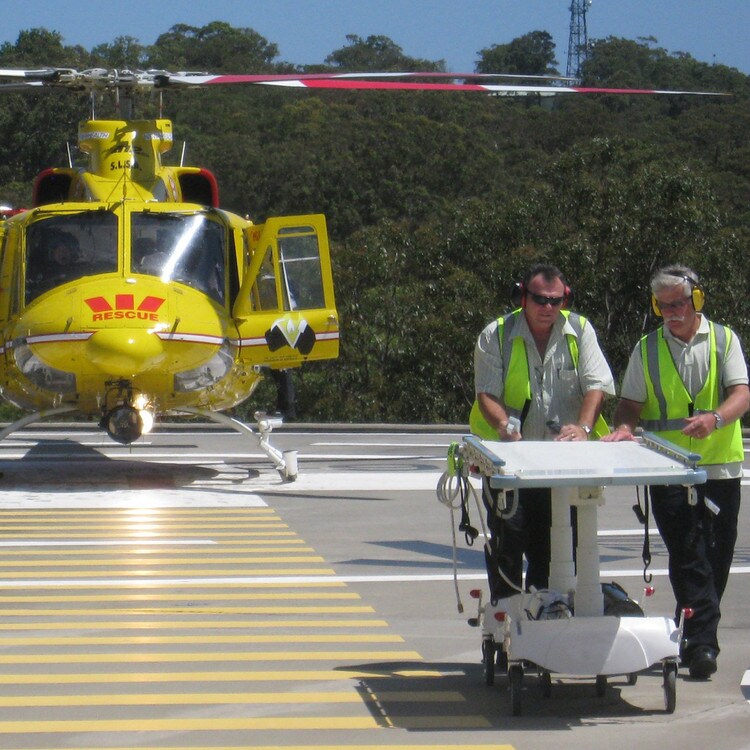

Safely and easily move a helicopter stretcher across onto this transfer stretcher, a platform designed to minimise effort whilst transporting patients over rougher outdoor surfaces. After benefiting from the smooth, ?at bridge that lines up with the helicopter ?oor, rapidly fasten the helicopter stretcher securely down with the four quick pull straps.

Reduce the trauma to patients and babies in cribs and the workload for carer’s whilst transferring via the large diameter castors and very stable stretcher.

  • Flat stretcher top with tie down straps and gap bridge
  • Fully customised top surface option to suit special purpose
  • Can be supplied with or without dropsides
  • Standard without backrest, Emergency CPR backrest available
  • 15° head and foot down Trendelenburg

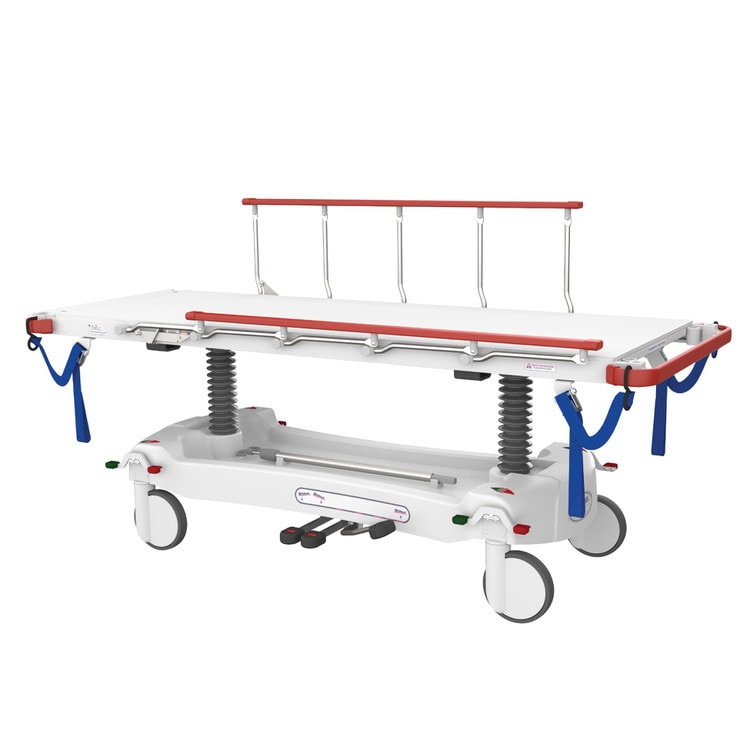

  • Electric and hydraulic versions available
  • 300kg safe working load
  • Electric height ranges: 440 - 810 (standard) or 530 - 900mm
  • Hydraulic height ranges: 530 - 760, 565 - 830 (standard) or 630 - 960mm
  • 200mm castors and Ezi-Trak 5th wheel steering
  • 2135 x 815mm overall size with 705mm narrow and 965mm wide top options
  • Choice of 7 dropside armrest/end rail colours for easy identification: Forest Green, Sunny Orange, Flame Red, Pastel Blue, Midnight Blue, Deep Violet, and Hot Pink
  • MADE IN AUSTRALIA
Code:CNTRHPT
Dimensions (mm):2135 L x 815 W
SWL (kg):300
Castor size (mm):200
Electric height ranges (mm):440-810 (standard) or 530-900
Hydraulic height ranges (mm):530-760, 565-830 (standard) or 630-960
Narrow top option (mm):705
Wide top option (mm):965
Colours: Forest Green, Sunny Orange, Flame Red, Pastel Blue, Midnight Blue, Deep Violet, Hot Pink
