CODE: CR1525-56

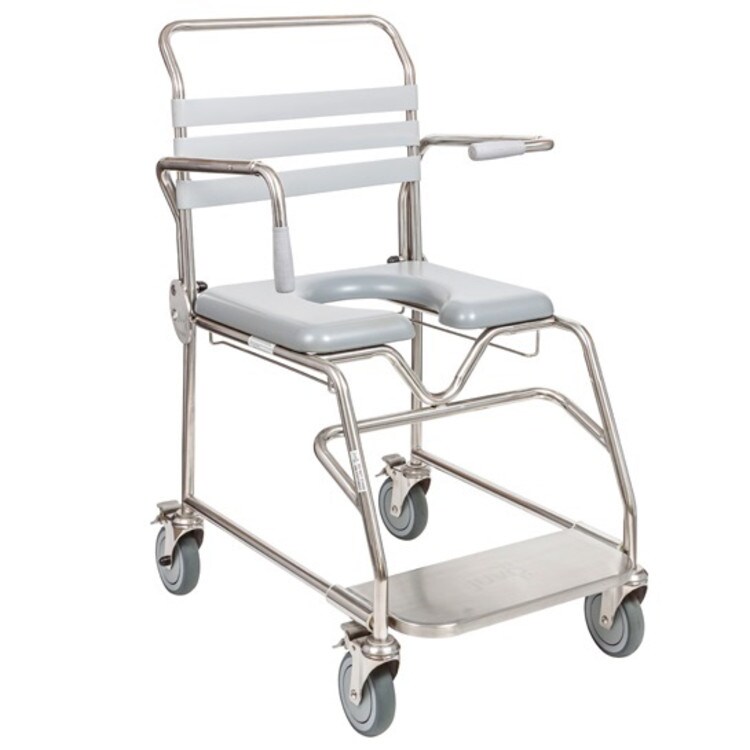

Juvo Attendant Propelled Shower Commode - Sliding Footplate - 560mm
- Assists transportation of the patient for showering and toileting
- Can be positioned over the toilet
- Durable total stainless steel frame
- Selection of seamless PU padded seats & Pressure care seats (open or closed fronts)
- Removable seat
- Reinforced seat/back frame
- Easy foot operated sliding, non-slip, weight-bearing footrest platform
- Now with braking stainless steel 125mm castors
- Swing back independent armrests to assist in side transfer and patient access
- Two position height adjustable armrests
- Safety arms provide user security & safety
- Stainless steel pan rack guides
- Max User Weight 300kg
- This product is tested and certified to Australian Standards
| Code: | CR1525-56 |
| Seat Width (mm) | 560 |
| Width between arms (mm) | 590 |
| Seat depth (mm) | 435 |
| Seat height Anterior (mm) | 595 |
| Seat height Posterior (mm) | 565 |
| Seat to Heel (mm) | 400 |
| Width Overall (mm) | 640 |
| Height Overall (mm) | 1020 |
| Depth Overall (mm) | 850 |
| Armrest height from seat High (mm) | 240 |
| Armrest height from seat Low (mm) | 200 |
| Backrest height to top strap (mm) | 340 |
| Aperture, wall to rear (mm) | 225 |
| Toilet bowl clearance max width x height (mm) | 510x500 |
| Toilet bowl clearance underside pan glides max width x height (mm) | 510x480 |
| Max user weight (kg) | 300 |
| Chair weight excluding seat, (kg) | 14.05 |
| Item Code | Item Name |
|---|---|
| CR127 | Juvo, Pan Carrier, 'Back Saver' |
| CR140-56 | Juvo, Open Front Seat, 560mm, Polyurethane |
| CR286 | Juvo, Arm Trough (Each) |
| CR300 | Juvo, Stainless Steel Castor with Bolt and Expanding Pintle |
| CR301 | Juvo, Padded Arms, Polyurethane, Black, to suit Juvo Shower Commodes |
| CR302 | Handgrip, Grey to suit Juvo Shower Commodes |
| CR304 | Safety Arm Button Stainless Steel |
| CR307 | Safety Arm with Handgrip , Spring and Button |
| CR315 | Juvo, Safety Arm Spring, Stainless Steel, to suit Juvo Shower Commode Range |
| CR323 | Waterpoof Urethane Footplate Bridge Cover |
| CR325PL | Juvo, Yellow Pintle, to suit Juvo Shower Commode Castors CR300 |
| CR342 | Juvo Arm Retaining Bolt Kit (Ea) |
| CR309-55 | Replacement Backrest Strap, Nylon Grey includes Rivets 560mm |
