CODE: CR1641

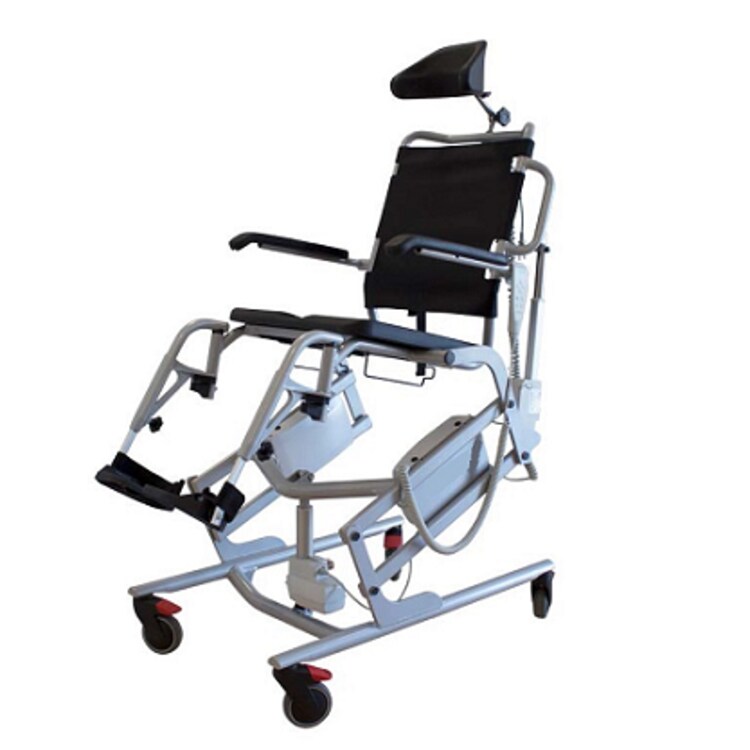

Electric Lift & Recline Mobile Shower Commode
The Electric Reclining & Tilting Care Chair is meticulously designed to ensure exceptional comfort and efficiency for both users and caregivers. With advanced features like electric seat lift, infinite tilt via remote control, and highly adjustable components, this chair enhances mobility, ease of use, and caregiving efficiency in diverse care environments.
- Electric seat lift and recline: Conveniently controlled via remote for optimal comfort and positioning.
- Infinite tilt adjustment: Tilt angles range from +7° to -31°, allowing for customizable user positioning.
- Adjustable height: Ideal for both user comfort and caregiver working height, ranging from 544 mm to 943 mm.
- Durable construction: Powder-coated stainless steel ensures longevity and resistance to wear.
- Safety and versatility: Features include swing-away padded armrests, adjustable leg rests, and central brake with directional lock for easy maneuverability.
- Wet environment tested: All battery components conform to IP66 standards and carry CE certification, ensuring safe usage in challenging conditions.
This chair is an excellent solution for those requiring efficient transfers, such as hoisted, standing, or lateral, while maintaining the highest standards of comfort and safety.
| Code: | CR1641 |
| Seat width (mm): | 460 |
| Width between arms (mm): | 468 |
| Seat height (mm): | 544-943 |
| Seat to heel (mm): | 474 |
| Seat tilt angle: | -30° to +7° |
| Overall width (mm): | 572 |
| Overall height (mm): | 886-1510 |
| Overall depth - tilted (mm): | 996-1294 |
| Armrest height from seat, low - high (mm): | 212 |
| Backrest height - to top strap (mm): | 504 |
| Toilet bowl clearance height (mm): | 544-943 |
| Toilet bowl clearance width (mm): | 430 |
| Max user weight (kg): | 150 |
| Chair weight excluding seat (kg): | 41 |
| Item Code | Item Name |
|---|---|
| CR559 | Battery to suit CR1638/ CR1641 |
| CR589 | Tilting Actuator to suit CR1641 |
| CR590 | Lifting Actuator to suit CR1641 |
| CR591 | Hand control to suit CR1641 |
| CR592 | Battery to suit CR1641 |
| CR595 | 100mm Brake Castor to suit CR1641 |
| CR596 | Wheel with direction lock (green) to suit CR1641 |
| CR597 | Battery cover including expanding Rivets to suit CR1641 |
| CR598 | Control box cover including expanding rivets to suit CR1641 |
| CR599 | PU Armrest to suit CR1641 |
| CR630 | Headrest Flexible to suit CR1641 |
| CR631 | Headrest (Small) to suit CR1641 |
| CR633 | PU Open Front Commode Toilet seat with to suit CR1641 |
| CR634 | PU Open Closed Commode Toilet seat with to suit CR1641 |
| CR634-1 | PU Closed Front Commode Toilet seat, Small Aperture with to suit CR1641 |
| CR635 | PU cover for toilet seat with round hole to suit CR1641 |
| CR636 | PU cover for toilet seat (for factory mounted toilet seat) to suit CR1641 |
| CR637 | Anti-pressure pillow |
| CR638 | Elevating leg rest (set) to suit CR1641 |
| CR640 | Torso-/Hip-/Leg belt |
| CR641L | Amputation leg rest / Left to suit CR1641 |
| CR641R | Amputation leg rest / Right to suit CR1641 |
| CR643 | Crossbar between the armrests to suit CR1641 |
| CR644 | Pu Backrest to suit CR1641 |
| CR645 | Swing Away, Flip over Security Arm (Pr) to suit CR1641 |
| CR647-25 | Wide Armrest Kit, adds additional 25mm on each side |
| CR647-50 | Wide Armrest Kit, adds additional 50mm on each side |
| CR648 | Lockable Armrest Set to suit CR1641 |
| CR649 | Plastic bedpan (compatible with factory mounted bracket set) to suit CR1641 |
| CR650 | Stainless steel bedpan with lid to suit CR1641 |
| CR651 | Bracket set for stainless steel bedpan to suit CR1641 |
| CR652 | Round plastic bedpan with lid to suit CR1641 |
| CR653 | Bracket set for round plastic bedpan to suit CR1641 |
| CR655 | Urine Deflector, urine guard to suit CR1641 |
