CODE: CR1661-36

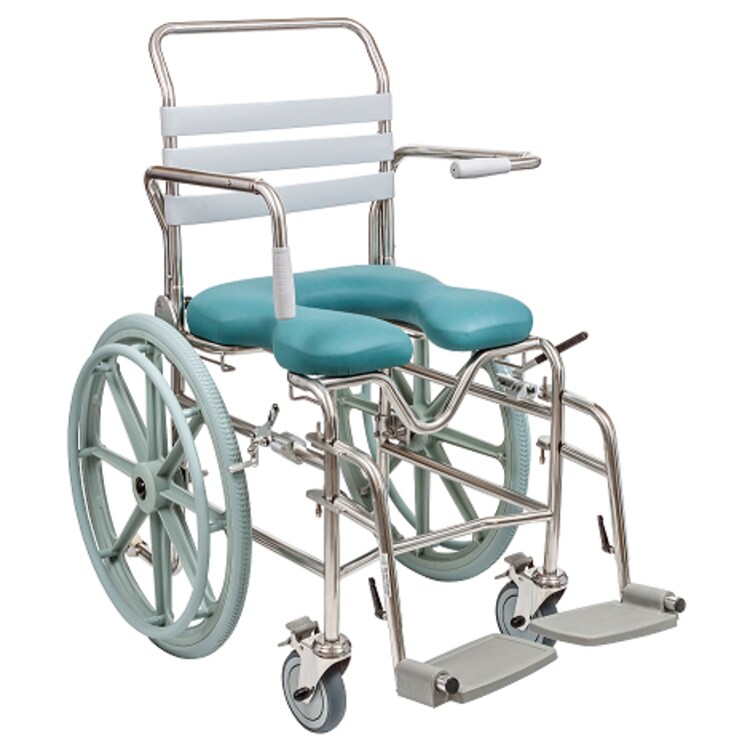

Juvo Self Propelled Shower Commode - 360mm

  • Assists transportation of the patient for showering and toileting
  • Can be positioned over the toilet
  • Durable total stainless steel frame
  • Selection of seamless PU padded seats & Pressure care seats (open or closed fronts)
  • Removable seat
  • Reinforced seat/back frame
  • Swing away, removable & height adjustable legrests with flip-up footplates.
  • Patented tearsafe design, no protrusions
  • Now with braking stainless steel 125mm castors
  • Swing back independent armrests to assist in
  • Side transfer and patient access
  • Two position height adjustable armrests
  • Safety arms provide user security & safety
  • Stainless steel pan rack guides
  • This product is tested and certified to Australian Standards

Hygiene

  • Assists transportation of patient for showering and toileting
  • Clear rear open space enabling positioning over the toilet
  • Easy access for hygiene with open armrest design
  • Deeper access front trough design for easy cleaning
  • Integral pan carrier glides. Back saver design, assists with emptying the bowl, can be removed half way, self supporting while the bowl/pan is removed

Design & Modifications

  • Grade 304 stainless steel heavy wall thickness tubing forming robust frame, durable design to withstand extensive wet area use
  • Open armrest design meaning smaller commode can be used in tight spaces while allowing for natural hip and thigh prominence. Eliminating "pinch point" between armrest and seat
  • Reinforced seat/back frame and armrests - weight bearing.
  • Stylish sturdy base to give confidence to client and carer

Positioning & Comfort

  • Stainless steel 125mm total locking castors for effortless manoeuvring, Juvo Registered Design
  • Easy removable seat, using Juvo Registered Design "Klipps" System
  • Selection of seamless Polyurethane padded seats & pressure care seats (open or closed fronts)
  • Swing-back independent armrests to assist in side transfer and patient access - two position height adjustment
  • Locking safety arms provide user security and safety
  • Flexible impervious non-woven back straps conforming to client shape for support and comfort. Antibacterial and non-suction designed straps to avoid skin tear when client is wet
Code:CR1661-36
Seat Width (mm)360
Width between arms (mm)410
Seat depth (mm)435
Adjustable Seat height
Seat height Anterior  (mm)595
Seat height Posterior (mm)565
Seat to Heel (mm)320x575
Width Overall (mm)610
Height Overall (mm)1020
Depth Overall (mm)950
Armrest height from seat High (mm)240
Armrest height from seat Low (mm)200
Backrest height to top strap (mm)340
Aperture, wall to rear (mm)325
Toilet bowl clearance max width x height (mm)360x500
Toilet bowl clearance underside pan glides max width x height (mm)360x480
Max user weight (kg)200
Chair weight excluding seat, (kg)18.5
Item CodeItem Name
CR148Anti - Tip Bar
CR266Quick Release Rear Wheel Axle
CR270Brake Handle Clamp
CR271Brake Handle Long - Left Hand Side
CR272Brake Handle Long - Right Hand Side
CR280Juvo Commode Rear Wheel
CR293LLower Legrest with Footplate - Left
CR297Legrest Lever, Plastic Black w.S/S Bolt
CR298Legrest Spring & Nut Stainless Steel
CR300Juvo Stainless Steel Castor with Bolt and Expanding Pintle
CR302Handgrip, Grey to suit Juvo Shower Commodes
CR304Safety Arm Button Stainless Steel
CR307Safety Arm with Handgrip , Spring and Button
CR325PLYellow Pintle to suit Juvo Shower Commode
CR342Juvo Arm Retaining Bolt Kit (Ea)
CR343LArmrest Padded - LHS when seated
CR343RArmrest Padded - RHS when seated
CR356Footplate Plastic to suit CR1533/36/38/44
CR296Legrest Assembly Swing away Right - Juvo
