CODE: CR1667-46

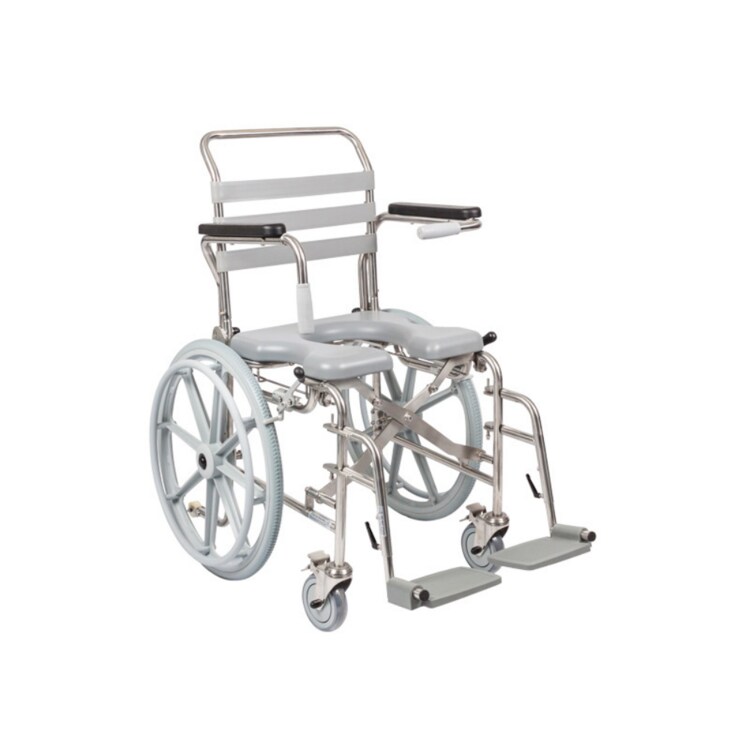

Juvo Attendant Propelled Folding Mobile Shower Commode - 460mm
- Assists transportation of the patient for showering and toileting
- Can be positioned over the toilet
- Durable total stainless steel frame
- Selection of seamless PU padded seats & Pressure care seats (open or closed fronts)
- Removable seat
- Reinforced seat/back frame
- Swing away, removable & height adjustable legrests with flip-up footplates.
- Patented tearsafe design, no protrusions
- Now with braking stainless steel 125mm castors

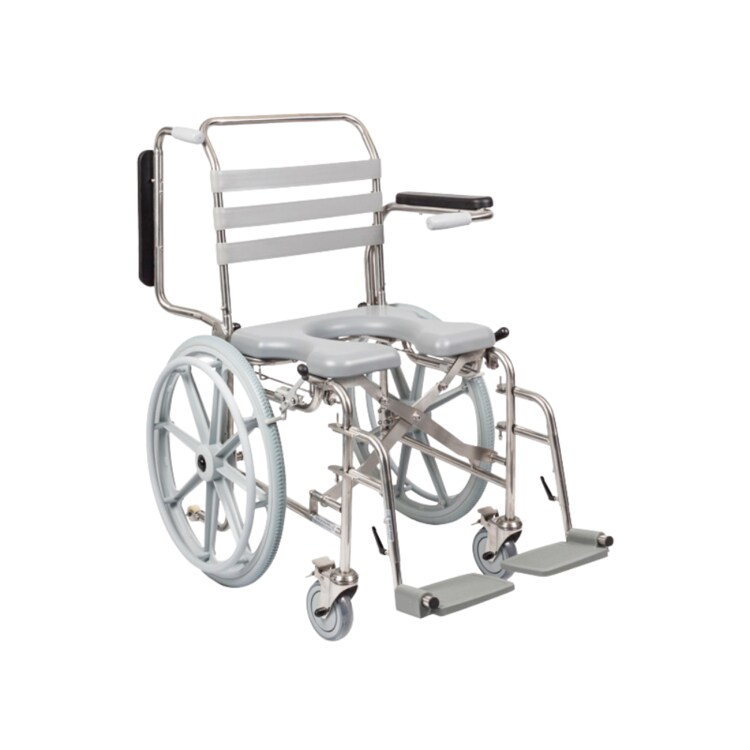

- Swing back independent armrests to assist in
- Side transfer and patient access
- Two-position height adjustable armrests
- Safety arms provide user security & safety
- Stainless steel pan rack guides
- This product is tested and certified to Australian Standards
Hygiene
- Assists transportation of patient for showering and toileting
- Clear rear open space enabling positioning over the toilet
- Easy access for hygiene with open armrest design
- Deeper access front trough design for easy cleaning
- Integral pan carrier glides. Back saver design, assists with emptying the bowl, can be removed halfway, self-supporting while the bowl/pan is removed
Design & Modifications
- Grade 304 stainless steel heavy wall thickness tubing forming robust frame, durable design to withstand extensive wet area use
- Open armrest design meaning smaller commode can be used in tight spaces while allowing for natural hip and thigh prominence. Eliminating "pinch point" between armrest and seat
- Reinforced seat/back frame and armrests - weight bearing.
- Stylish sturdy base to give confidence to client and carer
Positioning & Comfort
- Stainless steel 125mm total locking castors for effortless manoeuvring, Juvo Registered Design
- Easy removable seat, using Juvo Registered Design "Klipps" System
- Selection of seamless Polyurethane padded seats & pressure care seats (open or closed fronts)
- Swing-back independent armrests to assist in side transfer and patient access - two-position height adjustment
- Locking safety arms provide user security and safety
- Flexible impervious non-woven back straps conforming to client shape for support and comfort. Antibacterial and non-suction designed straps to avoid skin tear when client is wet
| Code: | CR1667-46 |
| Seat Width (mm) | 460 |
| Width between arms (mm) | 490 |
| Seat depth (mm) | 430 |
| Adjustable Seat height (mm) | adjustable 4 settings at 30mm |
| Seat height Anterior (mm) | 595 |
| Seat height Posterior (mm) | 565 |
| Seat to Heel Height (mm) | 410-575 |
| Width Overall (mm) | 660 (600 when pushrims removed and axle brackets reversed) |
| Height Overall (mm) | 1020 |
| Depth Overall (mm) | 1000 |
| Armrest height from seat High (mm) | 240 |
| Armrest height from seat Low (mm) | 200 |
| Backrest height to top strap (mm) | 340 |
| Aperture, wall to rear (mm) | 325 |
| Toilet bowl clearance max width x height (mm) | 410x500 |
| Toilet bowl clearance underside pan glides max width x height (mm) | 410x480 |
| Max user weight (kg) | 200 |
| Chair weight excluding seat, (kg) | 14 |

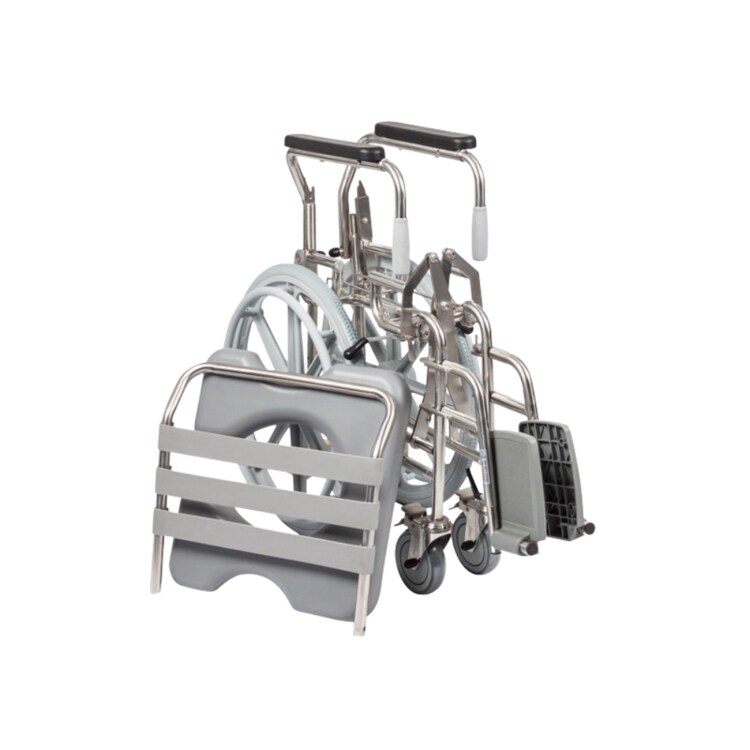

| Folded Width (mm) | 360 |
| Folded Depth (mm) | 1000 |
| Folded Height (mm) | 820 |
| Item Code | Item Name |
|---|---|
| CR293L | Lower Legrest with Footplate - Left |
| CR293R | Lower Legrest with Footplate - Right |
| CR295 | Legrest Assembly Swing away Left - Juvo |
| CR296 | Legrest Assembly Swing away Right - Juvo |
| CR297 | Legrest Lever, Plastic Black w.S/S Bolt |
| CR298 | Legrest Spring & Nut Stainless Steel |
| CR300 | Juvo, Stainless Steel Castor with Bolt and Expanding Pintle |
| CR302 | Handgrip, Grey to suit Juvo Shower Commodes |
| CR303 | Flip Over Arm For Shower Commode |
| CR315 | Safety Arm Spring Stainless Steel |
| CR325PL | Juvo, Yellow Pintle, to suit Juvo Shower Commode Castors, CR300 |
| CR342 | Juvo Arm Retaining Bolt Kit (Ea) |
| CR343L | Armrest Padded - LHS when seated |
| CR343R | Armrest Padded - RHS when seated |
