CODE: CR1668-36

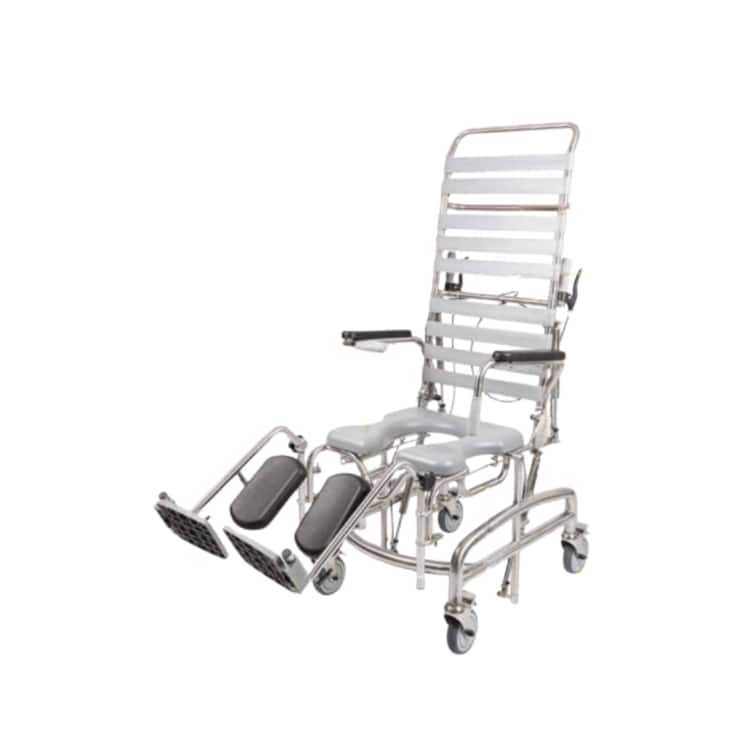

Juvo Tilt & Recline Mobile Shower Commode - 360mm
- Australian Standard Testing (AS/NZS 3973)
- SWL 200kg - 300kg
- Full stainless steel rigid stable frame
- Various widths available, 360mm, 410mm, 460mm, and 510mm
- Adjustable height
- Patented tearsafe design swingaway, removable and height adjustable legrests with flip-up footplates leaving no sharp points or protrusions
- 4 Stainless steel locking castors
- Open or closed front padded seat
- Swing back independent armrests to assist in side transfers and patient access
- Integral 2 position height adjustable armrest
- Restraint flip bars, lock into position
| Code: | CR1668-36 |
| Seat width (mm): | 360 |
| Width between arms (mm): | 410 |
| Seat height - anterior (mm): | 510-660 |
| Seat height - posterior (mm): | 480-630 |
| Seat to heel (mm): | 320-575 |
| Seat tilt angle: | -5° to +38° |
| Overall width (mm): | 410 |
| Overall height (mm): | 1465-1615 |
| Overall depth - tilted (mm): | 940-1600 |
| Armrest height from seat, low-high (mm): | 200-240 |
| Backrest height - to top strap (mm): | 800 |
| Aperture - wall to rear (mm): | 300 |
| Toilet bowl clearance height (mm): | 450-600 |
| Toilet bowl clearance width (mm): | 390 |
| Toilet bowl clearance between pan carrier (mm): | 315 |
| Max user weight (kg): | 200 |
| Chair weight excluding seat (kg): | 28 |
