CODE: CR1668-51

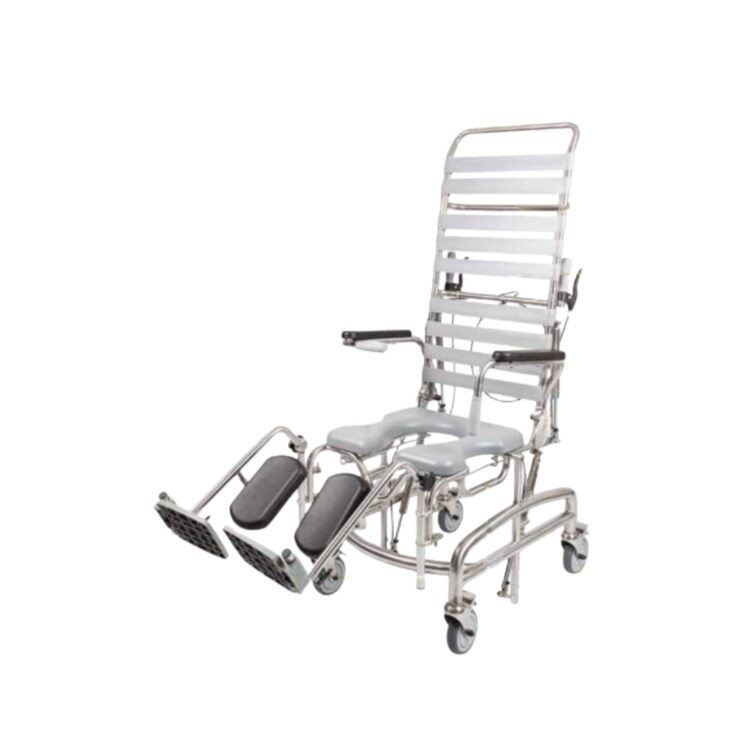

Juvo Tilt & Recline Mobile Shower Commode - 510mm
- Australian Standard Testing (AS/NZS 3973)
- SWL 200kg - 300kg
- Full stainless steel rigid stable frame
- Various widths available, 360mm, 410mm, 460mm, and 510mm
- Adjustable height
- Patented tearsafe design swingaway, removable and height adjustable legrests with flip-up footplates leaving no sharp points or protrusions
- 4 Stainless steel locking castors
- Open or closed front padded seat
- Swing back independent armrests to assist in side transfers and patient access
- Integral 2 position height adjustable armrest
- Restraint flip bars, lock into position
| Code: | CR1668-51 |
| Seat width (mm): | 510 |
| Width between arms (mm): | 540 |
| Seat height - anterior (mm): | 510-660 |
| Seat height - posterior (mm): | 480-630 |
| Seat to heel (mm): | 320-575 |
| Seat tilt angle: | -5° to +38° |
| Overall width (mm): | 560 |
| Overall height (mm): | 1465-1615 |
| Overall depth - tilted (mm): | 940-1600 |
| Armrest height from seat, low-high (mm): | 200-240 |
| Backrest height - to top strap (mm): | 800 |
| Aperture - wall to rear (mm): | 300 |
| Toilet bowl clearance height (mm): | 450-600 |
| Toilet bowl clearance width (mm): | 470 |
| Toilet bowl clearance between pan carrier (mm): | 315 |
| Max user weight (kg): | 300 |
| Chair weight excluding seat (kg): | 26 |
| Item Code | Item Name |
|---|---|
| CR266 | Quick Release Rear Wheel Axle |
| CR293L | Lower Legrest with Footplate - Left |
| CR296C | Right Legrest Assembly with Calf Pad |
| CR297 | Legrest Lever, Plastic Black w.S/S Bolt |
| CR298 | Legrest Spring & Nut Stainless Steel |
| CR299 | Juvo, Replacement Calf Pad, Polyurethane, Black, to suit Elevating Legrest |
| CR300 | Juvo, Stainless Steel Castor with Bolt and Expanding Pintle |
| CR302 | Handgrip, Grey to suit Juvo Shower Commodes |
| CR304 | Safety Arm Button Stainless Steel |
| CR307 | Safety Arm with Handgrip , Spring and Button |
| CR310-1 | Gas Strut to suit CR1665 |
| CR311-1 | Gas Strut Cable to suit CR1665 |
| CR312-2 | Release Head to suit Reclining CR1665 |
| CR325PL | Juvo, Yellow Pintle, to suit Juvo Shower Commode Castors, CR300 |
| CR342 | Juvo Arm Retaining Bolt Kit (Ea) |
| CR343L | Armrest Padded - LHS when seated |
| CR343R | Armrest Padded - RHS when seated |
| CR356 | Footplate Plastic to suit CR1533/36/38/44 |
