CODE: CR1680-61

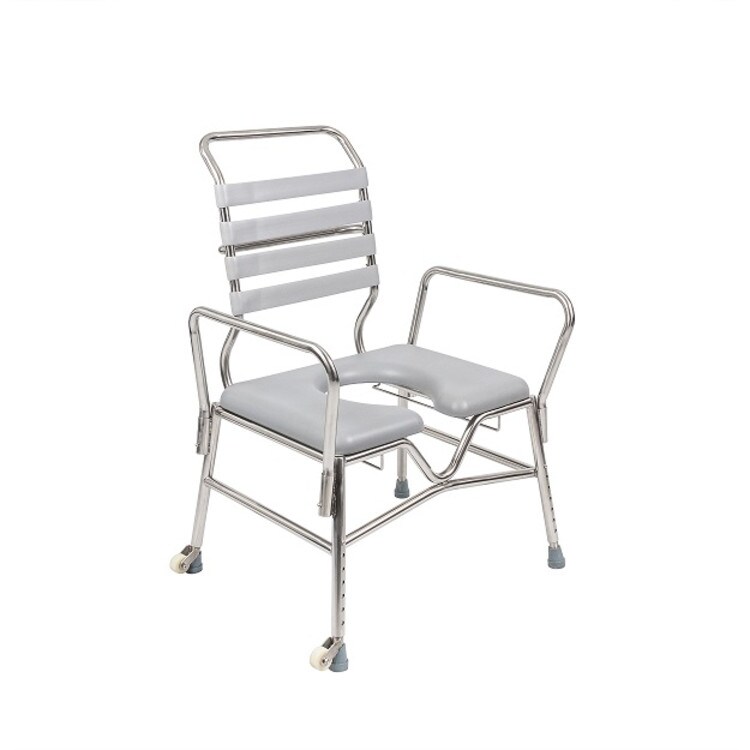

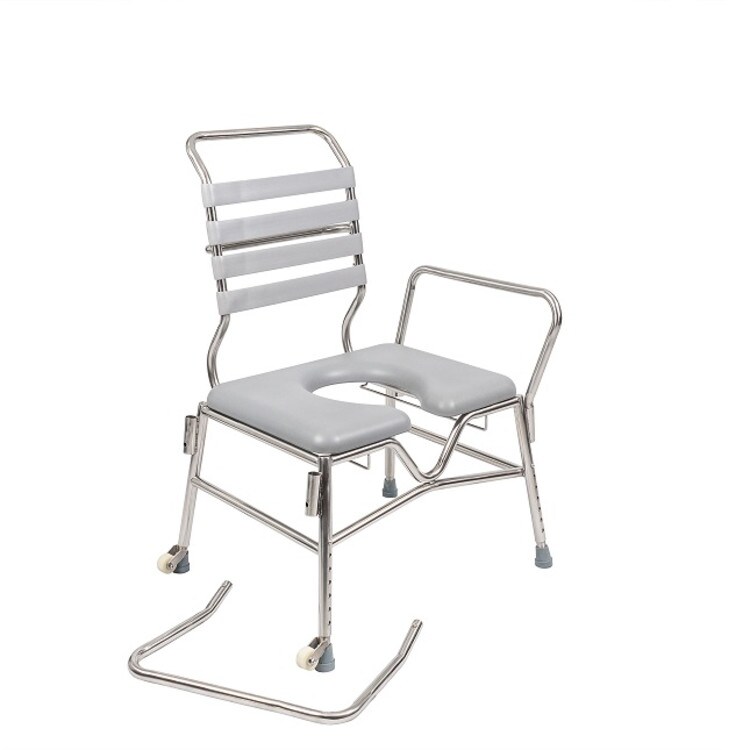

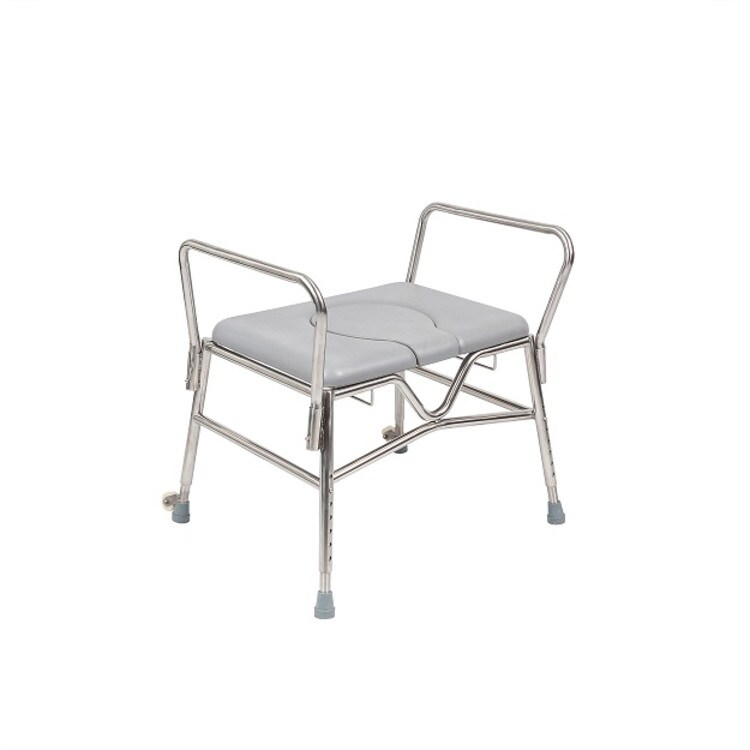

Trix Chair - 610mm

Our Trix System is a combination of an over toilet frame, shower stool and shower chair all in one product. The back saver Design, assists with emptying the bowl, can be removed halfway, and self-supporting while the bowl/pan is removed. With a max load of 400kg it is the perfect Bariatric chair for all your needs.

  • Hygiene
    • Assists patient with showering and toileting
    • Clear rear open space enabling positioning over the toilet
    • Easy access for hygiene with open armrest design
    • Deeper access front trough for easy cleaning
    • Integral pan carrier glides. Back saver design, assists with emptying the bowl, can be removed halfway, self-supporting while the bowl/pan is removed
  • Design & Modifications
    • Grade 304 stainless steel heavy wall thickness tubing forming robust frame to withstand extensive wet area use
    • Reinforced seat/back frame and armrests – weight bearing
    • Easy removable seat, using the Juvo Registered Design “Klipps” System
  • Positioning & Comfort
    • Transportation wheels for effortless maneuvering. Interchangeable so chair can be pulled by back or armrest
    • Adjustable seat height for improved client positioning
    • Fully adjustable seat depth to assist with client positioning
    • Selection of seamless Polyurethane padded seats & pressure care seats (open or closed fronts)
    • Armrests project beyond the seat to assist patient in sitting down and standing up
    • Splayed armrest design to eliminate pinch point to patient when sitting down and standing up
    • Flexible impervious non-woven back straps conforming to client shape for support and comfort. Antibacterial and nonsuction designed straps to avoid skin tear when client is wet
    • Curved Backrest design to allow for natural prominence of the gluteal shelf
Code:CR1680-61
Seat Width (mm):610
Width Between Arms (mm):660
Seat Depth (mm):470-570
Seat Height (mm):410-560
Width overall (mm):780
Height overall (mm):920-1100
Depth overall (mm):650-750
Armrest height, from seat (mm):210
Backrest height, to top strap (mm):430
Aperture, wall to rear (mm):240-340
Toilet bowl clearance, max width x height (mm):540x500
Toilet bowl clearance underside pan glides, max width x height (mm):540x480
Chair weight excluding seat (kg):15.35
SWL (kg):400
