CODE: CR36-41

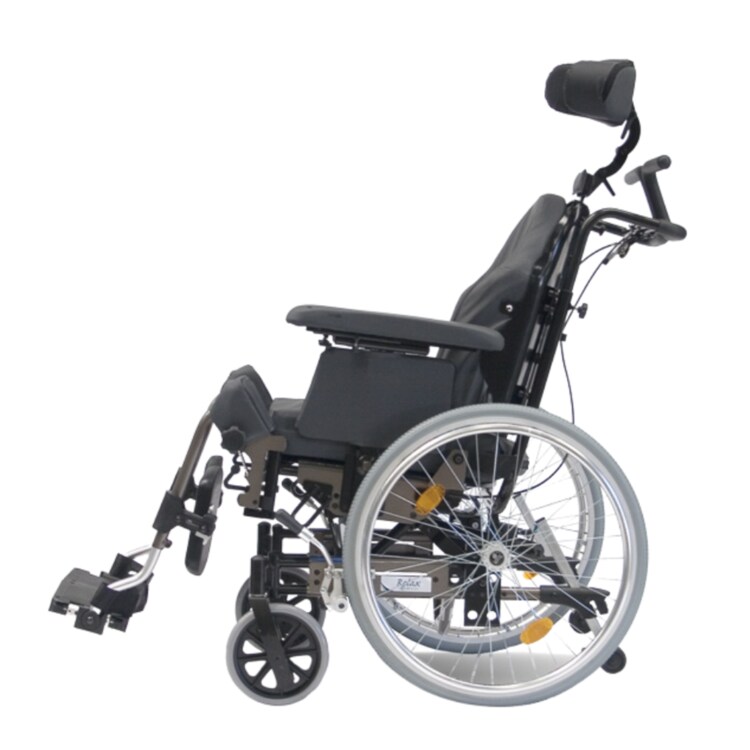

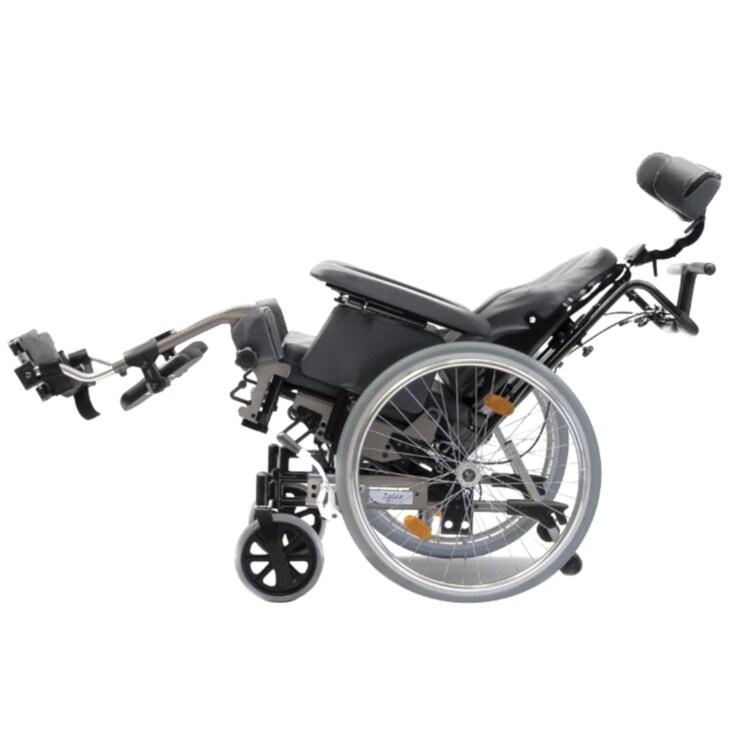

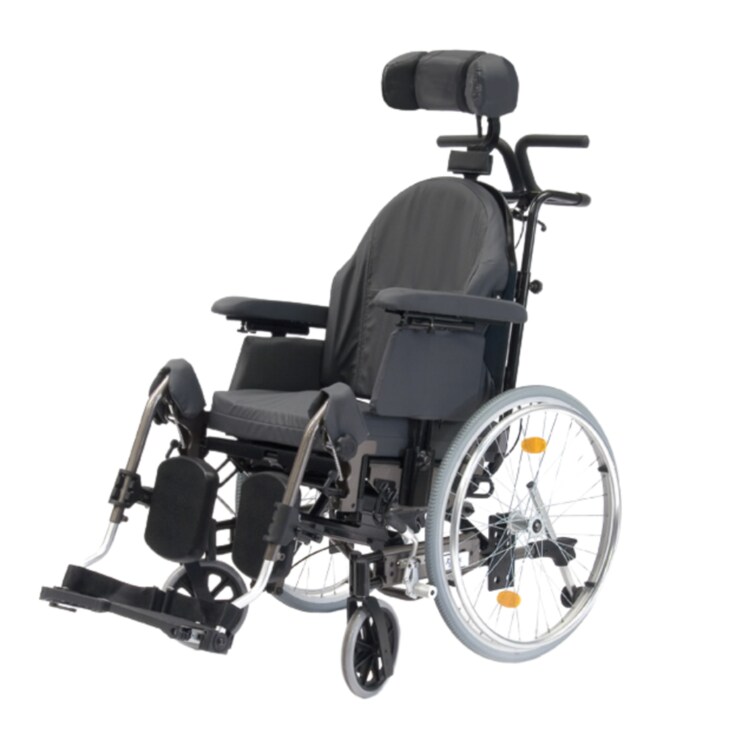

Tilt & Recline Transit Wheelchair - 410mm
- Seat Width 410mm
- Ideal for individual & healthcare requirements
- Aluminium frame with waterproof dartex upholstery
- Cushions - padded, contoured, removable seat & back
- Back rest - gas assisted reclining, infinitely adjustable, folding, height adjustable
- Head rest - padded adjustable, removable
- Seat - gas assisted tilt in space, infinitely adjustable, depth adjustable
- Arm rests - depth adjustable, removable, full length
- Modesty panels
- Leg rests - elevating, swing away, removable
- Calf pads - height & depth adjustable
- Foot plates - height & angle adjustable, plastic flip up with heel loops
- Brakes - pull to lock
- Attendant operated drum brakes
- Wheels - quick release 610 mm solid rear
- Castors - 200 x 25mm solid front
- Anti-tip wheels - removable, height adjustable
- Push Handles - height adjustable
- Crash tested & transit approved
| Code: | CR36-41 |
| Overall width (mm): | 725 |
| Overall depth (mm): | 1120 |
| Overall height (mm): | 1110 |
| Seat width (mm): | 410 |
| Seat depth (mm): | 420-500 |
| Seat height (mm): | 515-545 |
| Seat to heel height (mm): | 360-510 |
| Seat angle adjustment: | 30 degrees |
| Backrest height from seat (mm): | 575-630 |
| Armrest height from seat (mm): | 200 |
| Armrest depth adjustment (mm): | 85 |
| Width between arms (mm): | 515 |
| Headrest height (mm): | 500-950 |
| Headrest depth adjustment (mm): | 160 |
| Max user weight (kg): | 140 |
| Unit weight (kg): | 39 |
| Item Code | Item Name |
|---|---|
| CR36-AC-AP | Armrests for Tilt & Recline Wheelchair (Pair) |
| CR36-AC-BC | Brake Cable for Tilt & Recline Wheelchair |
| CR36-AC-CB | Calf Pad Bracket for Tilt & Recline Wheelchair (Pair) |
| CR36-AC-DBLL | Drum Brake Lever with Cable for Tilt & Recline Wheelchair - Left Side Only |
| CR36-AC-DBLR | Drum Brake Lever with Cable for Tilt & Recline Wheelchair - Right Side Only |
| CR36-AC-DGSR | Dampener Gas Strut for Tilt for Tilt & Recline Wheelchair |
| CR36-AC-DGST | Dampener Gas Strut for Recline for Tilt & Recline Wheelchair |
| CR36-AC-HR | Headrest for Tilt & Recline Wheelchair |
| CR36-AC-HRAK | Headrest Height Adjustment Knob for Tilt & Recline Wheelchair |
| CR36-AC-KP | Knee Pads for Elevating Legrests for Tilt & Recline Wheelchair (Pair) |
| CR36-AC-LRL | Legrest Lever for Tilt & Recline Wheelchair (Pair) |
| CR36-AC-LTS | Lateral Trunk Support for Tilt & Recline Wheelchair (Pair) |
| CR36-AC-RC | Recline / Tilt Release Cable for Tilt & Recline Wheelchair |
| CR36-AC-RL | Release Lever for Tilt & Recline Wheelchair (Pair) |
