CODE: CR36-46

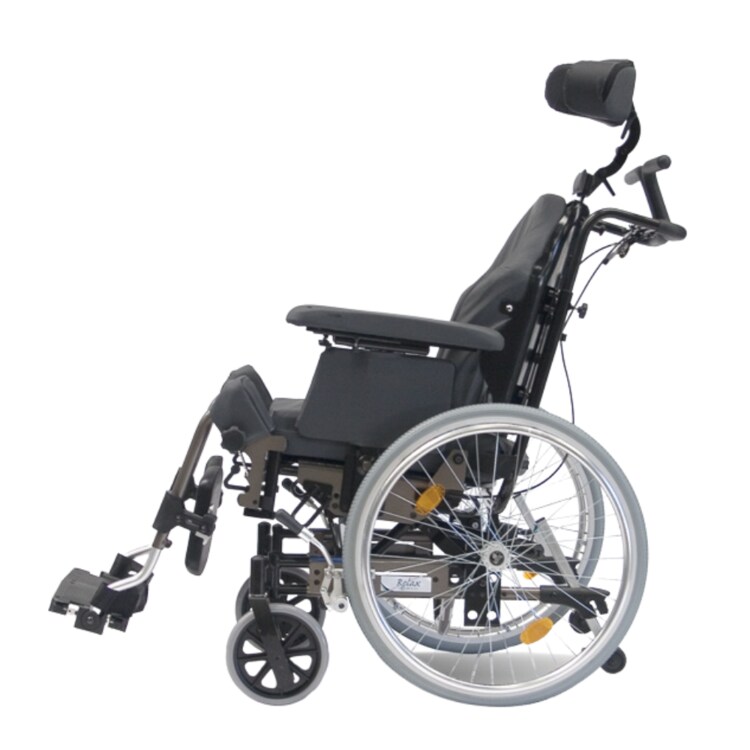

Wheelchair, Tilt & Recline Manual Care Chair - 460mm
- Ideal for individual & healthcare requirements
- Aluminium frame with waterproof dartex upholstery
- Cushions - padded, contoured, removable seat & back
- Backrest - gas assisted reclining, infinitely adjustable, folding, height adjustable
- Headrest - padded adjustable, removable
- Seat - gas assisted tilt in space, infinitely adjustable, depth adjustable
- Armrests - depth adjustable, removable, full length
- Modesty panels
- Leg rests - elevating, swing away, removable
- Calf pads - height & depth adjustable
- Footplates - height & angle adjustable, plastic flip-up with heel loops
- Brakes - pull to lock
- Attendant operated drum brakes
- Wheels - quick release 610 mm solid rear
- Castors - 200 x 25mm solid front
- Anti-tip wheels - removable, height adjustable
- Push Handles - height adjustable
| Code: | CR36-46 |
| Overall Width (mm) | 675 |
| Overall Depth (mm) | 1120 |
| Overall Height (mm) | 1110 |
| Overall Folded W x D x H (mm) | 675 x 1120 x 940 |
| Seat Width (mm) | 455 |
| Seat Depth (mm) | 420-500 |
| Seat Height (mm) | 515-545 |
| Seat to Heel Height (mm) | 360-510 |
| Seat Angle Adjustment | 30° |
| Backrest Height From Seat (mm) | 575-630 |
| Backrest Angle Adjustment | 30° |
| Armrest Height From Seat (mm) | 200 |
| Armrest Depth Adjustment (mm) | 85 |
| Width Between Arms (mm) | 465 |
| Headrest Height (mm) | 500-950 |
| Headrest Depth Adjustment (mm) | 160 |
| SWL (kg) | 140 |
| Unit Weight (kg) | 45 |
| Unit Weight Without Legrests (kg) | 39 |
| Item Code | Item Name |
|---|---|
| CR36-AC-AP | Armrests for Tilt & Recline Wheelchair (Pair) |
| CR36-AC-BC | Brake Cable for Tilt & Recline Wheelchair |
| CR36-AC-CB | Calf Pad Bracket for Tilt & Recline Wheelchair (Pair) |
| CR36-AC-DBLL | Drum Brake Lever with Cable for Tilt & Recline Wheelchair - Left Side Only |
| CR36-AC-DBLR | Drum Brake Lever with Cable for Tilt & Recline Wheelchair - Right Side Only |
| CR36-AC-DGSR | Dampener Gas Strut for Tilt for Tilt & Recline Wheelchair |
| CR36-AC-DGST | Dampener Gas Strut for Recline for Tilt & Recline Wheelchair |
| CR36-AC-HR | Headrest for Tilt & Recline Wheelchair |
| CR36-AC-HRAK | Headrest Height Adjustment Knob for Tilt & Recline Wheelchair |
| CR36-AC-KP | Knee Pads for Elevating Legrests for Tilt & Recline Wheelchair (Pair) |
| CR36-AC-LRL | Legrest Lever for Tilt & Recline Wheelchair (Pair) |
| CR36-AC-LTS | Lateral Trunk Support for Tilt & Recline Wheelchair (Pair) |
| CR36-AC-RC | Recline / Tilt Release Cable for Tilt & Recline Wheelchair |
| CR36-AC-RL | Release Lever for Tilt & Recline Wheelchair (Pair) |
| CR36-AC46-SC | Seat Cushion for Tilt & Recline Wheelchair - 460mm |
| CR36-SP46-BC | Backrest Cushion for Tilt & Recline Wheelchair - 460mm |
