CODE: CR36-51

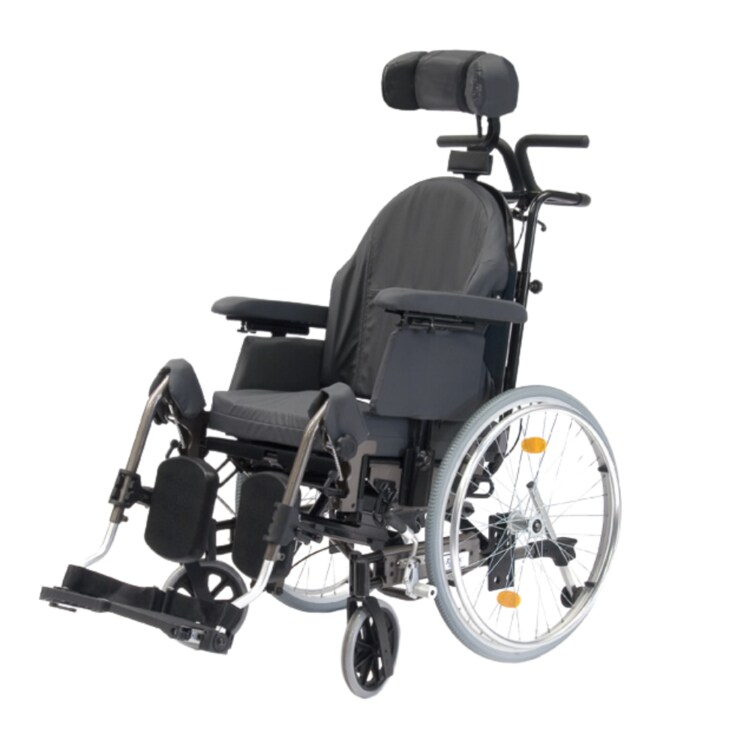

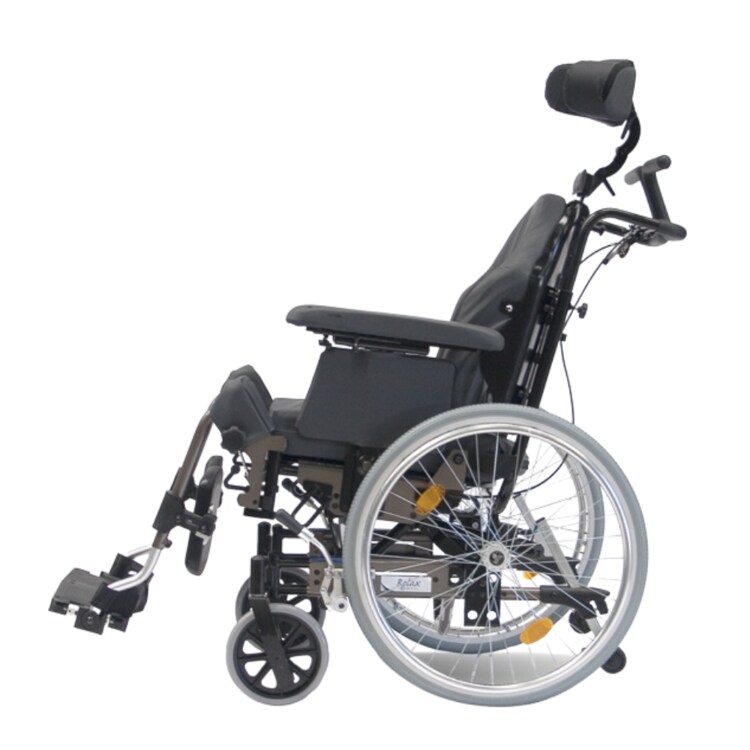

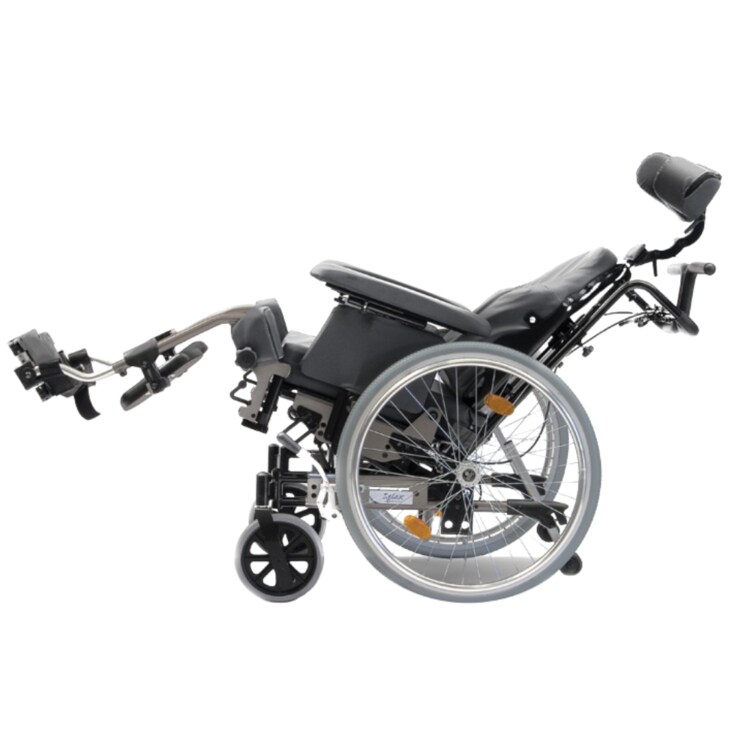

Wheelchair, Tilt & Recline Manual Care Chair - 510mm

  • Seat Width 510mm
  • Ideal for individual & healthcare requirements
  • Aluminium frame with waterproof dartex upholstery
  • Cushions - padded, contoured, removable seat & back
  • Backrest - gas assisted reclining, infinitely adjustable, folding, height adjustable
  • Headrest - padded adjustable, removable
  • Seat - gas assisted tilt in space, infinitely adjustable, depth adjustable
  • Armrests - depth adjustable, removable, full length
  • Modesty panels
  • Leg rests - elevating, swing away, removable
  • Calf pads - height & depth adjustable
  • Footplates - height & angle adjustable, plastic flip-up with heel loops
  • Brakes - pull to lock
  • Attendant operated drum brakes
  • Wheels - quick release 610 mm solid rear
  • Castors - 200 x 25mm solid front
  • Anti-tip wheels - removable, height adjustable
  • Push Handles - height adjustable
  • Crash tested & transit approved
Overall Width (mm)725
Overall Depth (mm)1120
Overall Height (mm)1110
Overall Folded W x D x H (mm)675 x 1120 x 940
Seat Width (mm)510
Seat Depth (mm)420-500
Seat Height (mm)515-545
Seat to Heel Height (mm)360-510
Seat Angle Adjustment30°
Backrest Height From Seat (mm)575-630
Backrest Angle Adjustment 30°
Armrest Height From Seat (mm)200
Armrest Depth Adjustment (mm)85
Width Between Arms (mm)515
Headrest Height (mm)500-950
Headrest Depth Adjustment (mm)160
SWL (kg)140
Unit Weight (kg)45
Unit Weight Without Legrests (kg)39
