CODE: CH9702-3

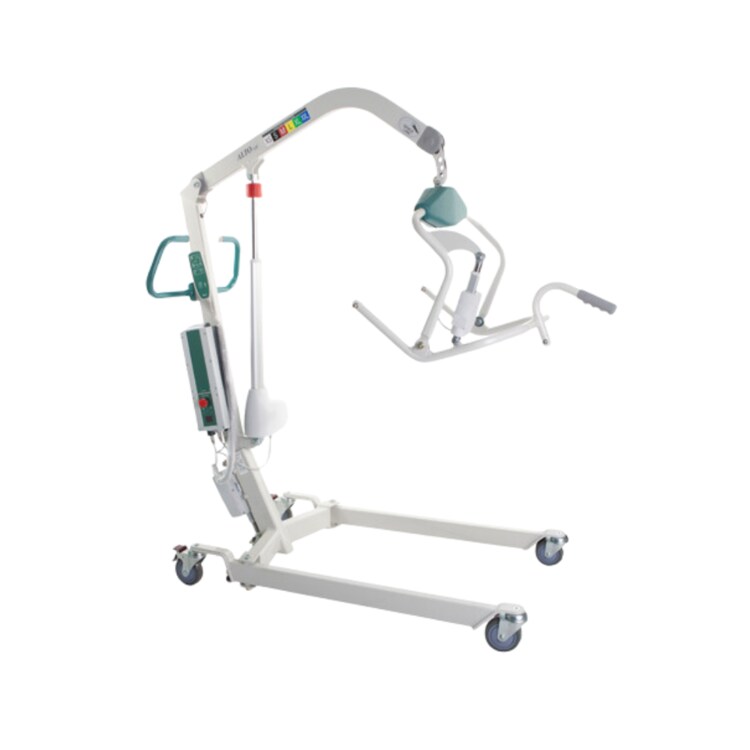

Patient Lifter Alto MKII 200 Power Pivot Frame

The Patient Lifter Alto MKII 200 with Power Pivot Frame is a medium-sized, heavy-duty mobile patient lifting hoist designed to provide exceptional performance in aged care facilities and hospitals. With a safe working load of 200kg, this compact lifter features an ergonomic design and the innovative SPACELINK™ technology for superior patient lift space and optimal lifting capability.

This Australian-made hoist is crafted for durability and compliance with AS ISO 10535-2002, ensuring reliable performance and safety during patient transfers. Featuring maintenance-free bushes and a powered pivot frame, it is a prime choice for those needing a robust and efficient patient lifter.

  • Electric leg adjustment for enhanced manoeuvrability.
  • Battery life indicator on both the lifter and handset.
  • Additional up and down controls on the control box.
  • Equipped with an emergency stop button for added safety.
  • Comes complete with a battery, charger, and instruction manual.

The lifter is designed for seamless under-bed clearance and is easy to maneuver, thanks to its compact yet sturdy build. The inclusion of the powered pivot frame further enhances its usability and versatility.

Code:CH9702-3
Base width min (mm):645
Base width max (mm):1130
Lift range - yoke (mm):362-1785
Lift range - pivot (mm):325-1600
Castor size (mm):100
Under bed clearance (mm):126
Lifter weight (kg):42
Safe working load (SWL, kg):200
