CODE: CR1665-51E

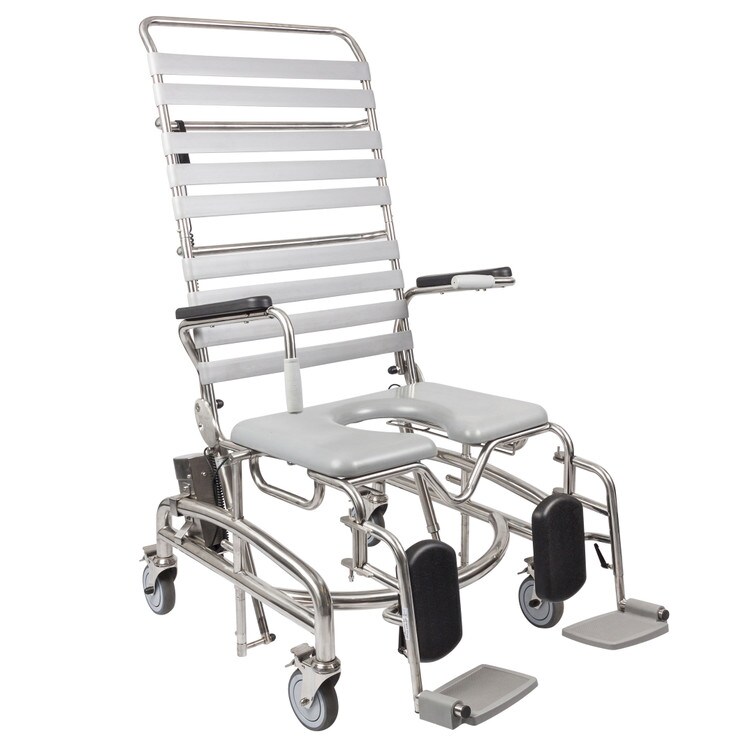

Juvo Tilt'n'Space Mobile Shower Commode - 510mm - Electric
- Assists transportation of the patient for showering and toileting
- Can be positioned over the toilet
- Durable total stainless steel frame
- Selection of seamless PU padded seats & Pressure care seats (open or closed fronts)
- Removable seat
- Reinforced seat/back frame
- Swing away, removable & height adjustable legrests with flip-up footplates.
- Patented tear safe design, no protrusions
- Now with braking stainless steel 125mm castors
- Swing back independent armrests to assist in side transfer and patient access
- Two position height adjustable armrests
- Safety arms provide user security & safety
- Stainless steel pan rack guides
- This product is tested and certified to Australian Standards
Hygiene
- Assists transportation of patient for showering and toileting
- Clear rear open space enabling positioning over the toilet
- Easy access for hygiene with open armrest design
- Deeper access front trough design for easy cleaning
- Integral pan carrier glides. Back saver design, assists with emptying the bowl, can be removed halfway, self supporting while the bowl/pan is removed
Design & Modifications
- Grade 304 stainless steel heavy wall thickness tubing forming robust frame, durable design to withstand extensive wet area use
- Open armrest design meaning smaller commode can be used in tight spaces while allowing for natural hip and thigh prominence. Eliminating "pinch point" between armrest and seat
- Reinforced seat/back frame and armrests - weight bearing.
- Stylish sturdy base to give confidence to client and carer
Positioning & Comfort
- Stainless steel 125mm total locking castors for effortless manoeuvring, Juvo Registered Design
- Easy removable seat, using Juvo Registered Design "Klipps" System
- Selection of seamless Polyurethane padded seats & pressure care seats (open or closed fronts)
- Swing-back independent armrests to assist in side transfer and patient access - two position height adjustment
- Locking safety arms provide user security and safety
- Flexible impervious non-woven back straps conforming to client shape for support and comfort. Antibacterial and non-suction designed straps to avoid skin tear when client is wet
| Code: | CR1665-51E |
| Seat width (mm) | 510 |
| Seat depth (mm) | 435 |
| Width between arms (mm) | 540 |
| Seat height anterior 6 settings at 26mm (mm) | 510-660 |
| Seat height posterior 6 settings at 26mm (mm) | 480-630 |
| Seat to heel (mm) | 320-575 |
| Seat tilt angle - degrees | -5 to +38 |
| Width overall (mm) | 610 |
| Height overall (mm) | 1465-1615 |
| Depth Overall - tilted (mm) | 940-1600 |
| Armrest height from seat, low height (mm) | 200-240 |
| Backrest height to top strap (mm) | 800 |
| Aperture, wall to rear (mm) | 300 |
| Toilet bowl clearance height (mm) | 450-600 |
| Toilet bowl clearance width (mm) | 470 |
| Toilet bowl clearance between pan carrier (mm) | 315 |
| Max user weight (kg) | 300 |
| Chair weight excluding seat (kg) | 26 |
| Item Code | Item Name |
|---|---|
| CR266 | Quick Release Rear Wheel Axle |
| CR293L | Lower Legrest with Footplate - Left |
| CR296C | Juvo, Legrest Assembly Swing-Away with Calf Pad, Right, to suit Juvo Mobile Shower Commode |
| CR297 | Juvo, Legrest Height Adjustment Lever, Plastic, Black, with Stainless Steel Bolt, to suit CR1660, CR1661, CR1662, CR1665 |
| CR298 | Legrest Spring & Nut Stainless Steel |
| CR299 | Juvo, Replacement Calf Pad, Polyurethane, Black, to suit Elevating Legrest |
| CR300 | Juvo, Stainless Steel Castor with Bolt and Expanding Pintle |
| CR302 | Handgrip, Grey to suit Juvo Shower Commodes |
| CR304 | Safety Arm Button Stainless Steel |
| CR307 | Safety Arm with Handgrip , Spring and Button |
| CR310-1 | Gas Strut to suit CR1665 |
| CR311 | Gas Strut Cable Kit to suit CR1665 |
| CR311-1 | Gas Strut Cable to suit CR1665 |
| CR311-1-Obsolete | Gas Strut Cable to suit CR1665 (Discontinued) |
| CR312-2 | Release Head to suit Reclining CR1665 |
| CR312-4 | Release Handle for Tilting Shower commode, suits CR1665 |
| CR325PL | Juvo, Yellow Pintle, to suit Juvo Shower Commode Castors CR300 |
| CR342 | Juvo Arm Retaining Bolt Kit (Ea) |
| CR343L | Armrest Padded - LHS when seated |
| CR343R | Armrest Padded - RHS when seated |
| CR356 | Footplate Plastic to suit CR1533/36/38/44 |
| CR587-1 | Control Box For CR1665E Models |
| CR587-10 | Terminal Cover Support Bracket to suit CR1665E models |
| CR587-2 | LA20 100mm 340 BID to suit CR1665E |
| CR587-3 | Linak Battery Charger to Suit CR1665E Models |
| CR587-4 | Handset Standard Linak to suit CR1665E |
| CR587-5 | LIFT50, BAL50 Battery to suit CR1665E & CR1669 |
| CR587-6 | Cable to suit CR587-2 & CR587-1 (CR1665E) |
| CR587-7 | Power Cable for Battery Charger to suit CR1665E models |
| CR587-8 | Bracket Battery + Charger to suit CR1665E Models |
| CR587-9 | Bracket Battery + Control Box to suit CR1665E Models |
| CR295C | Juvo, Legrest Assembly Swing-Away with Calf Pad, Left, to suit Juvo Mobile Shower Commode |
