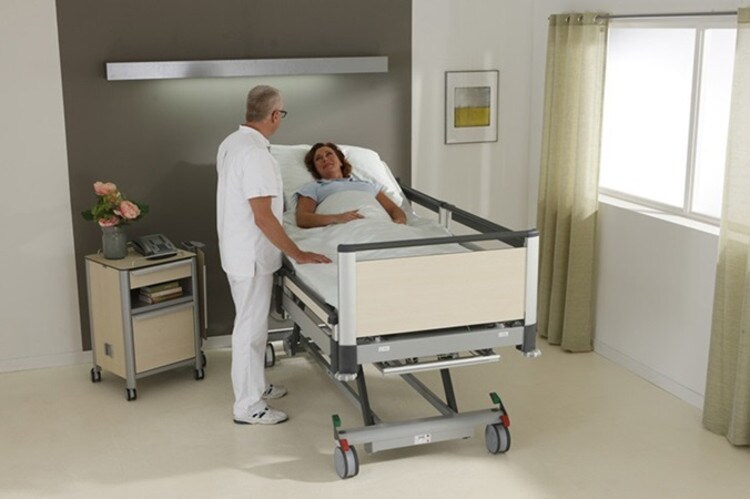

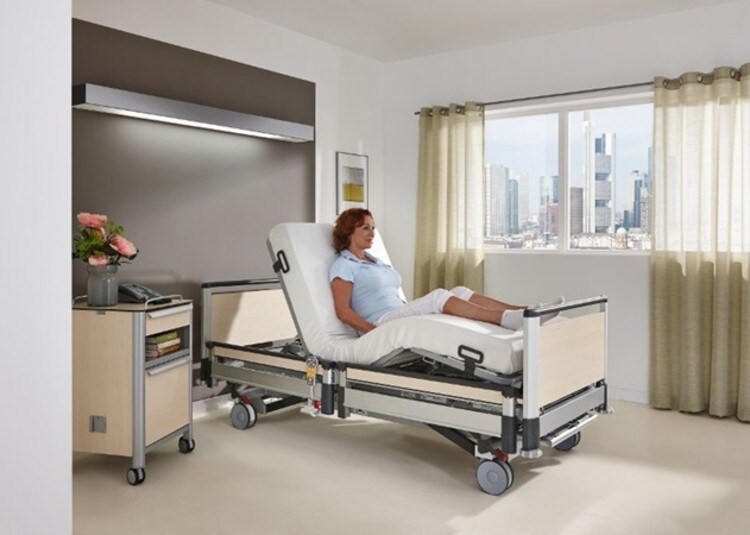

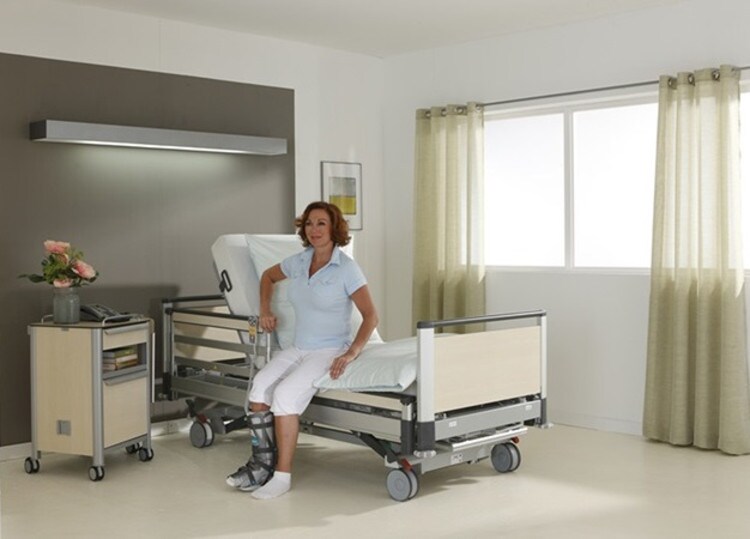

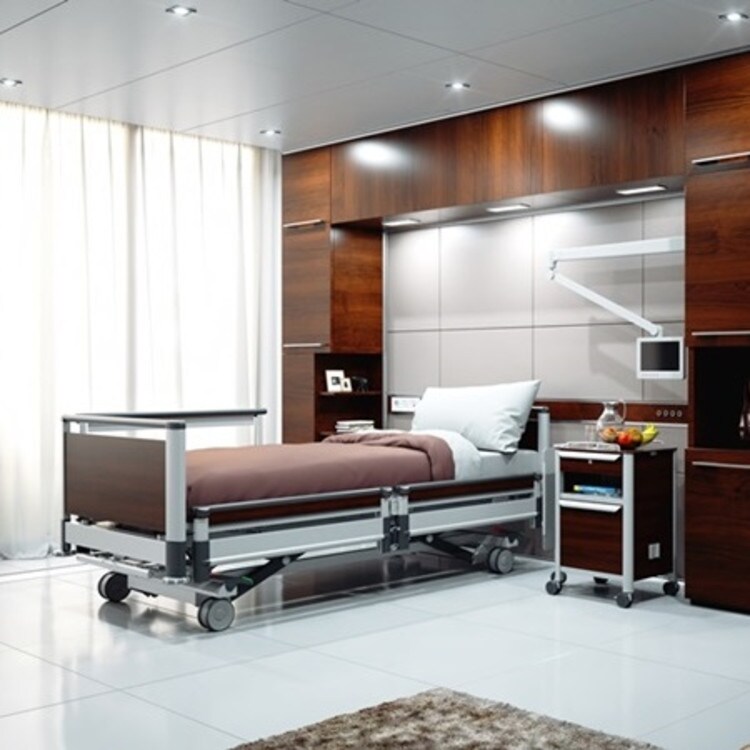

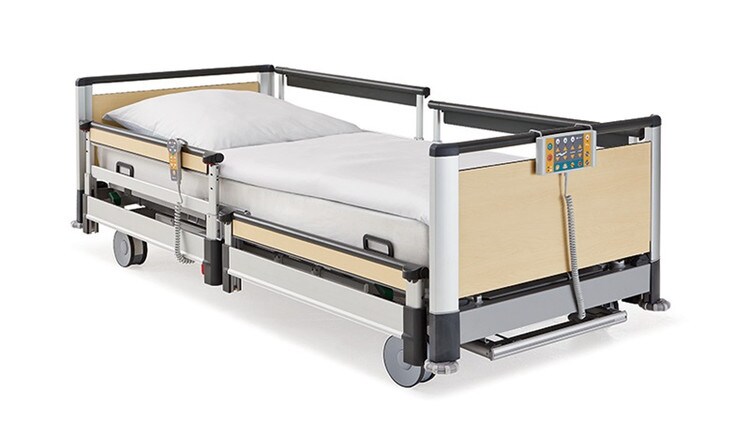

Linet Image 3 Low Low Patient Bed
The Image 3 electrically adjustable hospital bed respects growing demands of patients and nursing staff. The design of the bed is timeless and suitable for a broad spectrum of health care and nursing care.
Your benefits at a glance
Extra low position
An extra low patient positioning (patient surface height is 28 cm) significantly reduces the risk of injuries in case of falling out of the bed, especially during the night.
SafeFree® siderails
4 different adjustable heights of siderails. No required additional space beside the bed folding. Covered full length of bed sides.
Variable design
Universal look design for different types of hospitals and clinics. Flexible solution for all customer wishes.
Mobilization concept

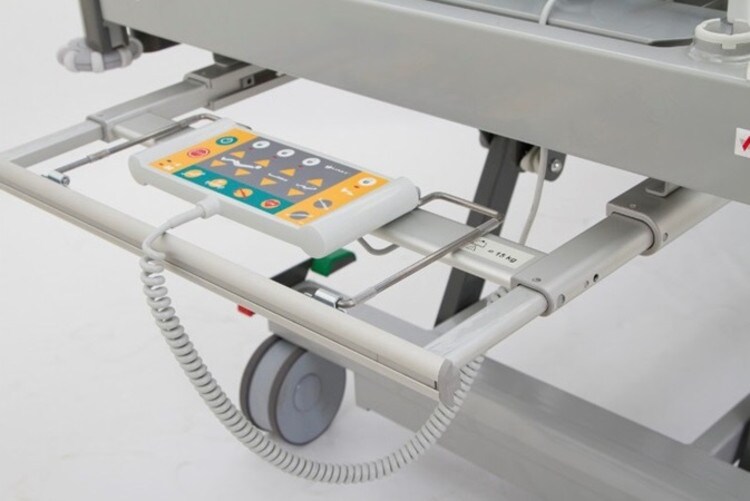

One programmed button for mobilization position. Integrated handle on the siderails. Compatible with bed exit alarm SafeSense Bed Exit Alarm to integrate into Hospital Nurse Calls
3 stop strategy
Automatic stop in 3 different height positions. Intended for safe sleeping. Comfortable examination or easier mobilization of the patient. The ideal position for cleaning in washing machine.
Image 3 Washable
The bed is available in a version suitable for cleaning and disinfection in automatic hospital washing machines (norm AK-BWA). The bed construction undergoes a special technological modification that increases its service life and durability.
Code: | CH7390 |
External dimensions (mm): | 2210 L x 1040 W |
Bed extension (mm): | 100, 220, 305 |
Bed height (Hi-Lo adjustment) (mm): | 280 – 800 |
Internal dimension (mm): | 2000 L x 900 W |
SWL (kg): | 265 |
Backrest angle: | 70° |
Maximum thigh rest angle: | 34° |
TR/ATR angle: | 14°/14° |
Height of siderails (mm): | 40 (4-Part) |
