CODE: CH7396

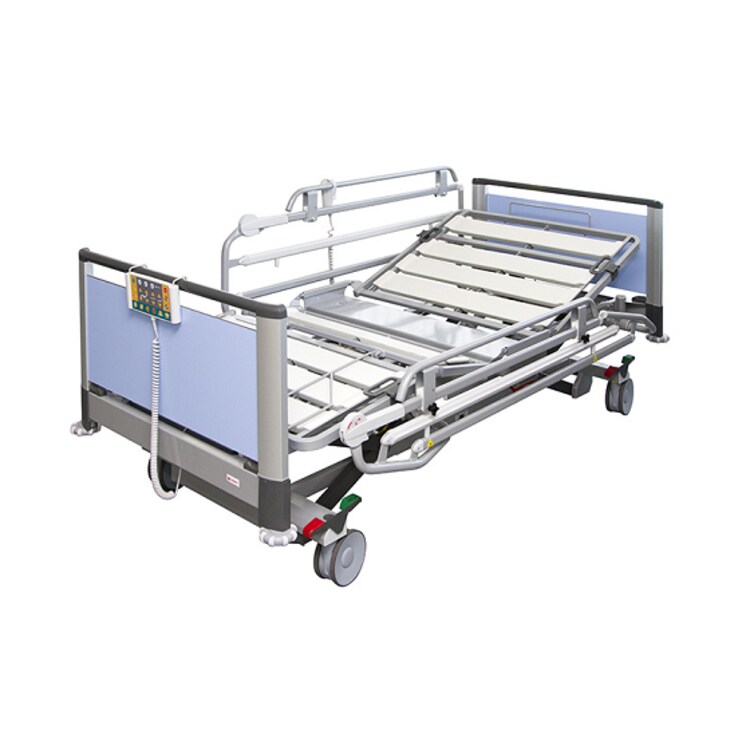

Linet Image 3 XXL Low Low, Bariatric Patient Bed, 320kg

Image 3 XXL is a hospital bed specifically designed for bariatric patients looking for a comfortable, practical and safe healthcare bed with high standards. The main advantage of the Image 3 XXL bed is a high safe working load of 320 kg. Due to its versatility, this bariatric bed can be used in a wide range of hospital departments.

Your benefits at a glance

Extra low position

An extra low patient positioning (patient surface height is 28 cm) significantly reduces the risk of injuries in case of falling out of the bed, especially during the night.


Ergoframe® significantly reduces negative effects (shear, friction) of patient positioning and increases patient comfort. It decreases pressure ulcers development in high risk areas.

3 stop strategy

Automatic stop in 3 different height positions. Intended for safe sleeping. Comfortable examination or easier mobilization of the patient.

Bed extension

is possible at three levels according to the client's individual needs.

Brake alarm

The brake alarm automatically signals an unbraked bed and notifies hospital staff about possible danger. This prevents patient falls caused by leaning against an unbraked bed when exiting or entering the bed.

External dimensions (mm):2200 L x 1100 W
Bed extension (mm):100, 220, 305
Bed height (Hi-Lo Adjustment) (mm):280 – 800
Internal dimension (mm):2000 L x 1000 W
SWL (kg):320
Backrest angle:70°
Maximum thigh rest angle:34°
TR/ATR angle:14°/14°
