CODE: CH7398

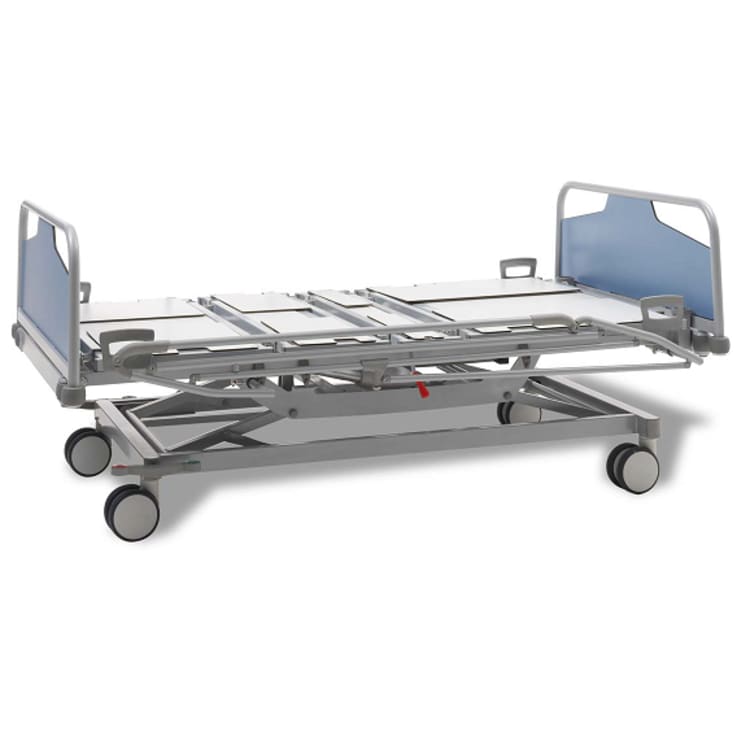

Bariatric Width Adjustable 500kg Hospital Bed
- High/low adjustment by means of a support arm system (lifting capacity of 500 kg).
- Trendelenburg and Reverse Trendelenburg adjustment up to ±17°.
- Electric Knee Break ±34°.
- Twin castors Ø 150 mm with a directional castor.
- Double design pedal to activate the central brake.
- The open carriage improves the accessibility under the bed and the ease of cleaning

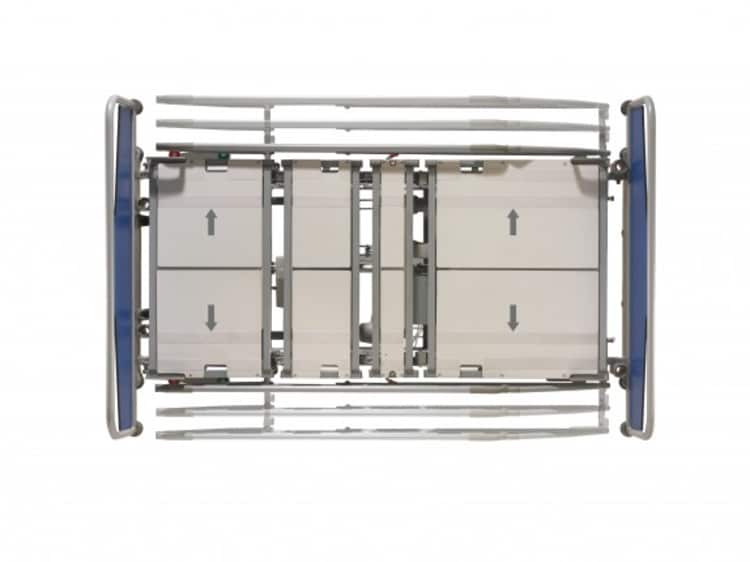

- Mattress platform with 4 sections, adjustable in width (910 - 1110 - 1310mm).
- Manual quick release (CPR) of the backrest.
- Battery Back-up with alarm signal.
- Mattress platform with solid laminate sections, equipped with cut-outs for patient’s restraint straps.
- Backrest and footrest are equipped with 2 integrated mattress holders.
- Equip Potential connection.
- Bed corners with integrated bumpers.
- IV rod and lifting pole
- Mattress and Bolsters to suit
| Code: | CH7398 |
| External dimensions (mm): | 2140 x 1040, 1240, 1440 |
| Bed extension (mm): | 200 |
| Bed height, hi-lo adjustment (mm): | 420–820 |
| SWL (kg): | 500 |
| Backrest angle: | 70° |
| Maximum thigh rest angle: | 34° |
| TR/ATR angle: | 15°/15° |
