CODE: CH7410

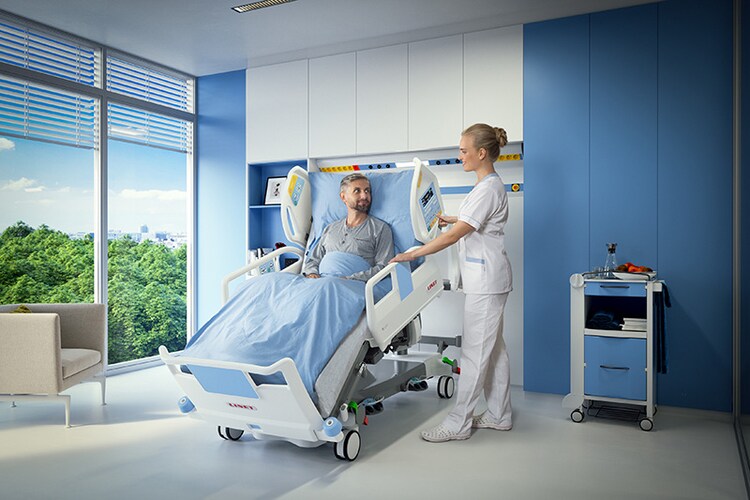

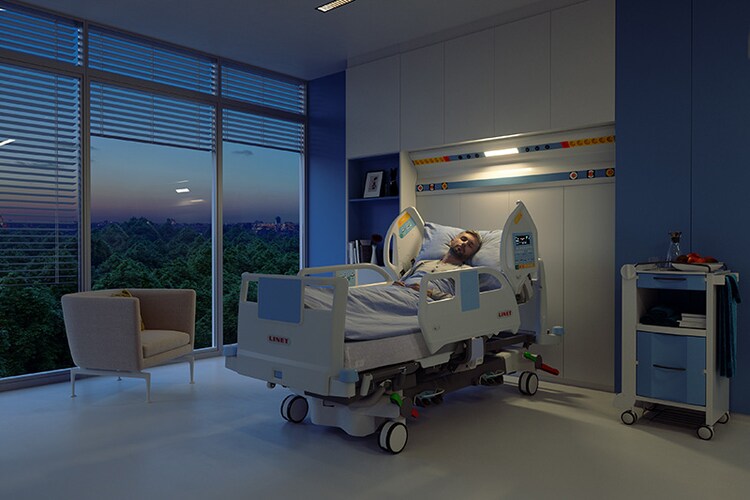

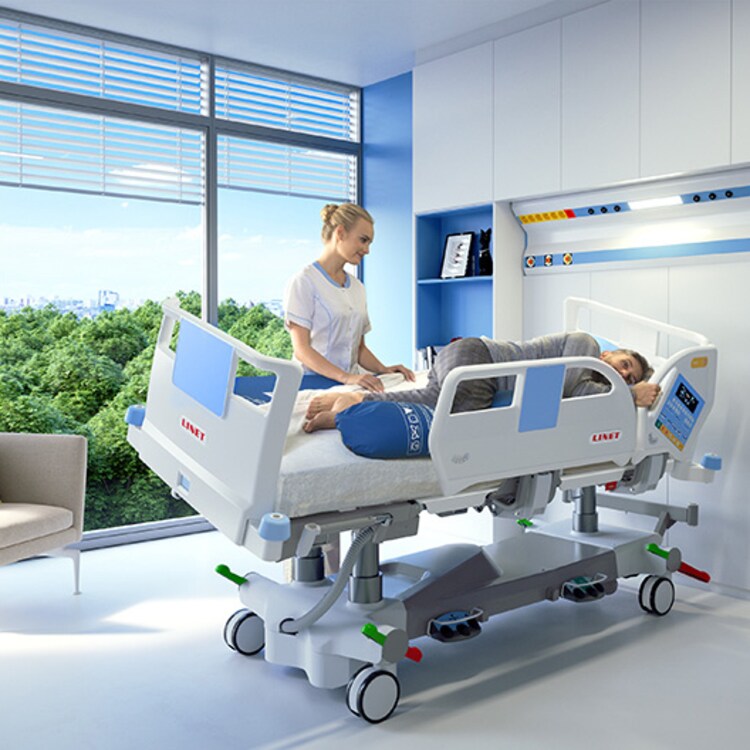

Linet Eleganza 5 ICU/CCU/HDU Bed

The Eleganza 5 bed and its highly sophisticated features and functions help maintain patient vital signs and enable staff to treat the patient safely and with minimal effort.

Benefits at a glance

Turning

Innovative tilting technology with smooth columns helps turn the patient gently with less effort.

Nurses carry out routine procedures ergonomically and effortlessly.
Improves pressure ulcer prevention – easy regular patient positioning.
New technology: smooth bed tilting for even more sensitive care.

Safety

Sophisticated safety features controlled by the monitoring system.

Safety under control - The BedMonitor system continuously monitors the main safety features of all beds in the department.
Siderails Concept - Reduced side space needed for siderails release.
i-Brake - Automatic brake prevents falls caused by unstable beds, mainly during bed exit.
Safe Stop - Prevents injuries due to crushing by the lowered mattress platform .
Multizone bed exit alarm - Prevent falls by monitoring the patient’s motion activity and presence in the bed.
30 degree autostop - Automatic backrest stops at 30 degrees, helps improve respiration.
Lowest height - Lowest bed height helps minimise the severity of fall consequences.

Mobilisation

New progressive features work in symbiosis for early patient mobilisation.

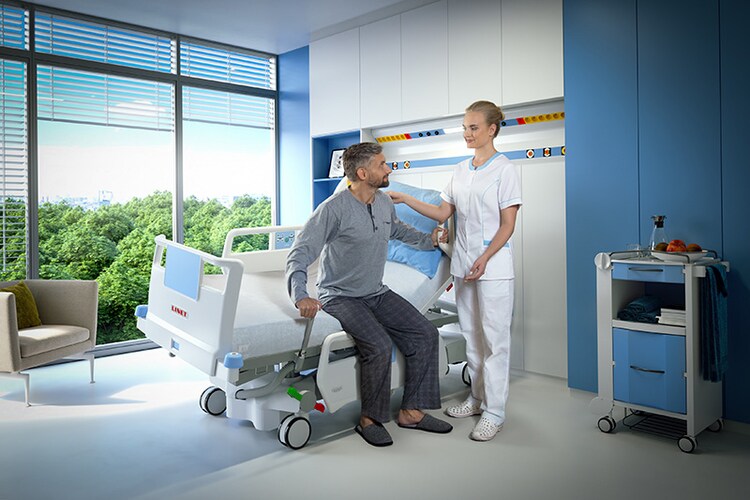

MobiLift® - Patient controls bed height with the MobiLift® handle.

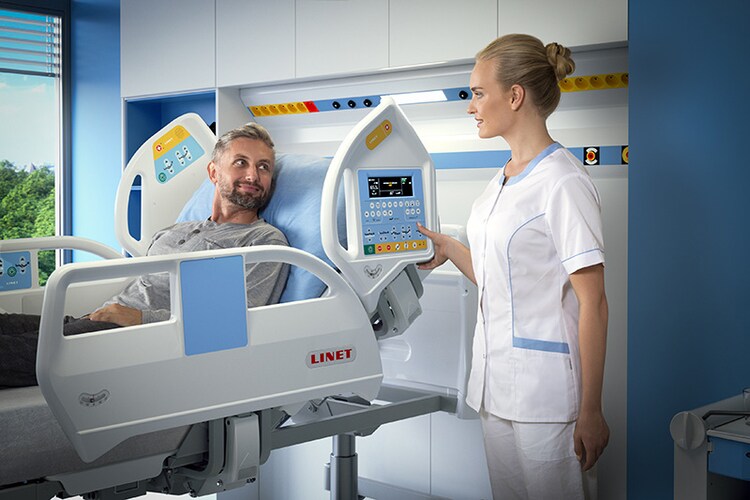

MobiRails - Ergonomically shaped handles in siderails.

Lateral Tilt - Height setting and side tilt assist patient’s bed exit.

Positioning

Cardiac chair position - Provides relief during respiratory problems and pleasant for when the patient reads, eats, watches TV, etc

Fowler position 30/30 with Ergoframe - Equal pressure distribution to prevent skin damage, minimised friction and shear effect during thighrest and backrest elevation. Less pressure on the tissue due to the extended pelvic area space.

Tilt table position - Improves the patient’s breathing and maintains arterial blood pressure at a more stable range.

Vascular position - A position with legs at heart level: optimised venous return and positive impact on swelling (edema) reduction. Helps with backache relief.

Full vascular position - Full access for skin inspection & wound care in the heel area. Passive Leg Raise (PLR) – only used when ordered by a physician to assess fluid status without the use of a central line.

Communication

Smart technology and bed connectivity.

Bed Monitor system - Using sensors built into the bed it monitors safety parameter settings.

Connectivity - The bed sends data to the hospital information system via integration module. Wifi or LAN connection.

Code:	CH7410
External dimensions (mm):	2190 L x 1000 W
Bed extension (mm):	220
Bed height (Hi-Lo adjustment) (mm):	435 – 815
SWL (kg):	250
Lateral tilt:	15°
TR/ATR angle:	14°/14°
