CODE: CH7510

Tom 2 Childrens Cot

A state-of-the art children's bed for patients to further meet the demands in healthcare facilities and environments Features and Benefits:

Extra Safety

  • Zero Gap when positioning the backrest the mattress platform slides out towards the head-end, so Tom 2 is the only bed on the market where a dangerous gap does not appear between the head and backrest. (Ref. to page 5 of Tom 2 Brochure) Modern Contemporary Design Creating pleasant and credible impressions on small patients and their parents. Exceptional Height Adjustment Height adjustment extending from 580
  • 830 mm allowing nursing procedures to be performed ergonomically. Fully Electric with "GO" button for added safety Hi-Lo Backrest Trendelenburg

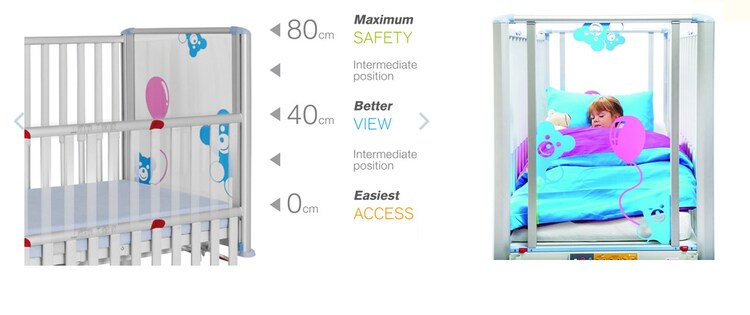

  • R/Trendelenburg Unique Telescopic Side Rails to prevent falls and provide free access to child's patients. Free Access to Patient (Ref to page 11 of Brochure)
  • Includes:
    • Mattress to Suit
    • Battery-Back-up
    • CPR Release
    • Storage Box under footend
    • Decorative Paintings on Head and Foot End
  • Optional Extras:
    • Telescopic IV Pole
    • C02 Bottle Holder

The Tom 2 bed fully complies with the new standard for hospital children's beds. DIN 32623:2009-11, 50637 and its construction guarantees perfect protection against children's falls. Other standards: EN 60601-1, EN 60601-1-2, EN 60601-1-6.

Code:CH7510
Outer dimensions (mm):1510 x 830
Recommended mattress dimensions (mm):1370 x 700
Maximum recommended mattress height (mm):100
Bed height (Hi-Lo Adjustment) (mm):580-830
Maximum siderail height above mattress platforms (mm):800
Autoregression of backrest (mm):125
Maximum backrest angle:41°
Trendelenburg/Reverse Trendelenburg position:15°/15°
SWL (kg):80
