CODE: CH9701

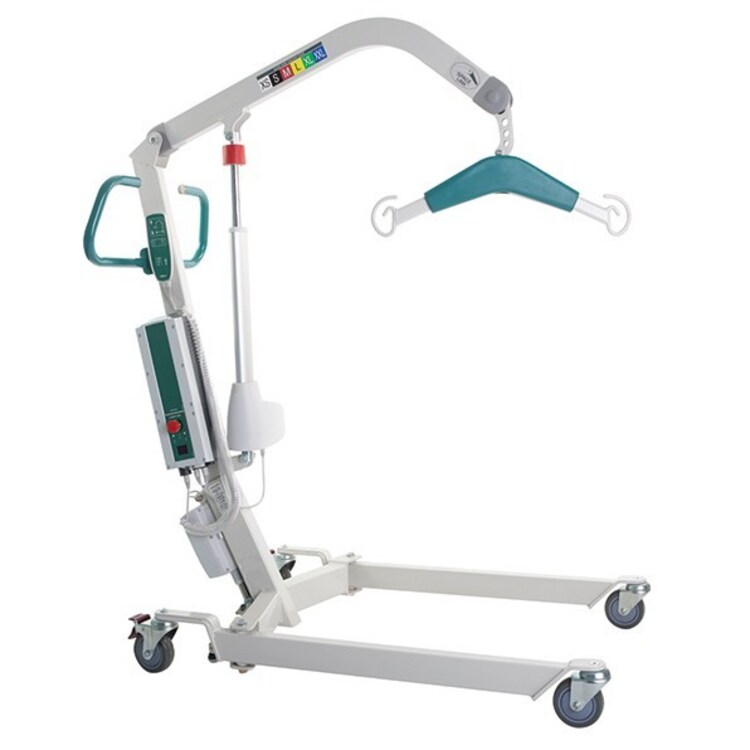

150kg Hoist Electric Leg Spread - with Standard Yoke
A lightweight compact mobile patient lifting hoist with innovative and ergonomic design.
An easy to use everyday lifter. With a safe working load of 150kg this offers an outstanding lift capacity in a small patient hoist.
- Easy to use everyday lifter
- Offers an outstanding lift capacity in a small patient hoist
- This allows for ease of lifter leg adjustment on carpeted surfaces and/or with the heavier client on board

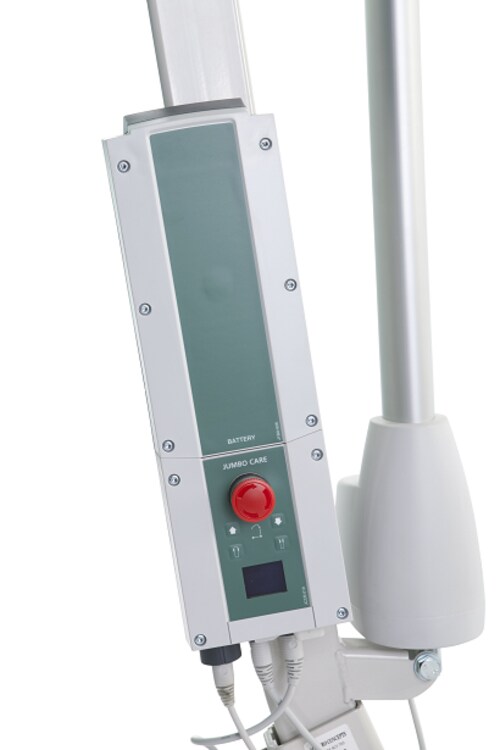

- Featuring Linak Jumbo Care advanced diagnostic control system
- Powered by LA44 European Standards compatible linear actuator
- SPACE LINK™ Technology
- Increases maximum lifting height
- A breakthrough for optimised patient space
- Enhances floor lift capability
- Compatible with standard spreader bar or tilt/pivot frame
| Code: | CH9701 |
| Base length (mm): | 1100 |
| External base width closed (mm): | 670 |
| External base width open (mm): | 1075 |
| Internal base width closed (mm): | 570 |
| Internal base width open (mm): | 970 |
| Base width adjustment: | Electric |
| Under bed clearance (mm): | 130 |
| Minimum height yoke (mm): | 400 |
| Maximum height yoke (mm): | 1735 |
| Average lift range (mm): | 880 |
| Lifter weight (kg): | 41 |
| Minimum storage height (mm): | 1250 |
| Under base height (mm): | 55 |
| Maximum hoist reach (mm): | 865 |
| Minimum hoist reach (mm): | 515 |
| Hoist reach at maximum height (mm): | 515 |
| Mass of heaviest part (kg): | 21 |
| Maximum user weight (kg): | 150 |
