CODE: CH9702

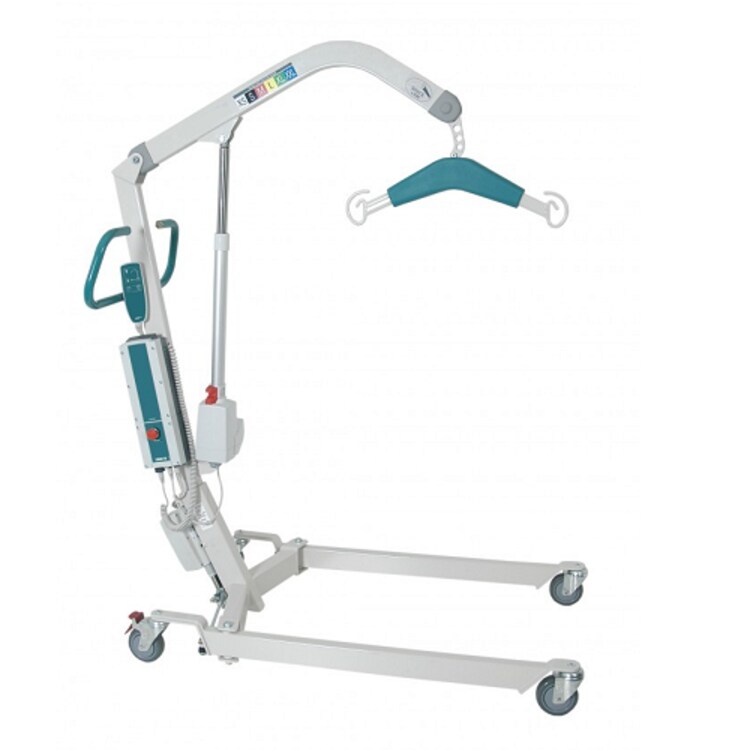

Heavy Duty 200kg Hoist, Electric Leg Spread - with Standard Yoke
A medium sized heavy duty mobile patient lifting hoist with a safe working load of 200kg and a compact ergonomic design.
Whilst being compact, provides superior patient lift space through the use of SPACE LINK technology.
The lifter is a choice for institutional use or home care where a high capacity lift is required. Safe working load of 200kg and an innovative and ergonomic design.
- Increased maximum lifting height
- A breakthrough for optimised patient space
- Enhanced floor lift capability
- Compatible with standard spreader bar or tilt /pivot frame
Complete with Standard Yoke
| Code: | CH9702 |
| Safe working load (kg): | 200 |
| Base length (mm): | 1150 |
| External base width (mm): | 645 |
| Internal base width closed (mm): | 578 |
| Internal base width open (mm): | 1130 |
| Base width adjustment: | Electric adjustment |
| Under bed clearance (mm): | 125 |
| Minimum height spreader bar (mm): | 362 |
| Maximum height spreader bar (mm): | 1785 |
| Average lift range* (mm): | 1060 |
| Lifter weight (kg): | 43 |
| Minimum storage height (mm): | 1350 |
| Under base height (mm): | 50 |
| Maximum hoist reach (mm): | 875 |
| Minimum hoist reach (mm): | 445 |
| Maximum hoist reach at maximum height (mm): | 610 |
| Minimum hoist reach at minimum height (mm): | 435 |
| Turning radius (mm): | 1210 |
| Mass of heaviest part (kg): | 17.5 (base assembly) |
| *with General Purpose Large Sling | |
