CODE: CH9705

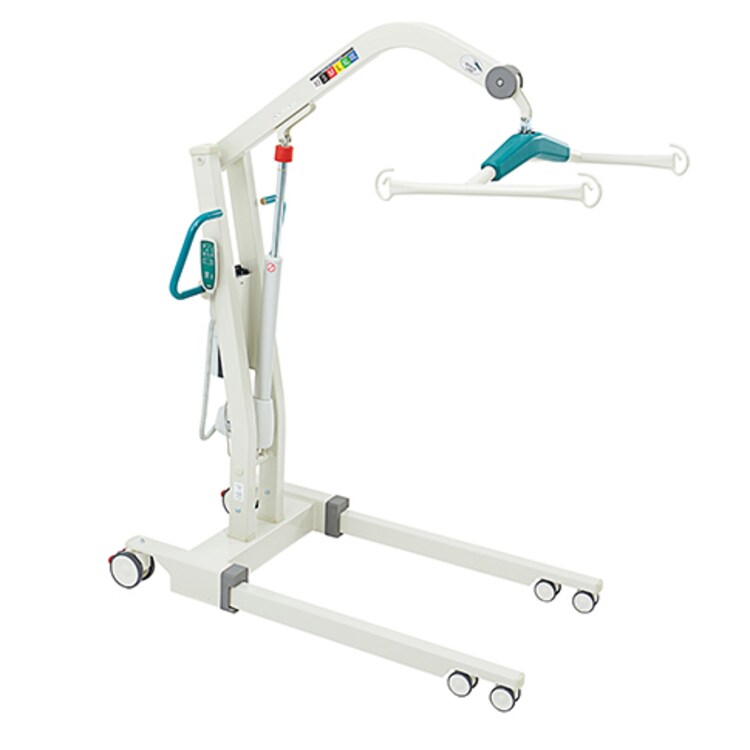

Forte 320kg Bariatric Hoist
With a safe working load of 320kg this extremely heavy duty mobile patient lifting hoist provides full bariatric capability whilst remaining a compact and ergonomic design. Manoeuvrability and exceptional under bed clearence are key design features.
This provides superior patient lift space through the combination of the recessed actuator and the use of SPACE LINK technology. The aesthetic design of the concealed electric leg mechanism provides infection control advantages.
Ideal hoist for institutional use where a high capacity bariatric lifter is required.
SPACE LINK:
- Breakthrough for optimised patient space
- Enhances floor lift capacity
| Code: | CH9705 |
| SWL (kg): | 320 |
| Base length (mm): | 1420 |
| External base width closed (mm): | 715 |
| External base width open (mm): | 1200 |
| Internal base width closed (mm): | 600 |
| Internal base width open (mm): | 1080 |
| Base width adjustment: | Electric |
| Under bed clearance (mm): | 111 |
| Minimum yoke height (mm): | 245 |
| Maximum yoke height (mm): | 1940 |
| Overall height (boom raised) (mm): | 2243 |
| Lifter weight (kg): | 63 |
| Minimum storage height (mm): | 1445 |
| Under base height (mm): | 15 |
| Maximum hoist reach (mm): | 810 |
| Mass of heaviest part (chassis) (kg): | 37 |
