Mobile 2 Post Gantry, 4M
Primary application:
- Home care
- Institutional
- Hospital
Suitable for people who need an immediate and/or temporary lifting solution that can be easily and simply fitted, used and removed. The Mobile Flex is easy to assemble. No tools are required to adjust the height and width to provide reliable temporary solutions.
Adjusting the height via gas spring is carried out in just a few seconds providing immediate use for the carer and client. The telescopic tracks give enough lifting height to provide solutions that are suitable for most care rooms and most transfer situations.
The Mobile Flex is when combined with Ergolet’s innovative Luna ceiling lift, is a simple and functional lifting system and the ideal choice for either home care or institutional use. The Mobile Flex provides a lifting capacity up to 275kg thus utilising the full range of the Luna ceiling lift.
Key standard functions:
- Weight capacity of 275kg
- Easy assembly and adjustments
- Two widths: Mobile 3m & 4m
- Utilises full functionality of the Luna ceiling lift
- Telescopic width adjustability
- Only 1150mm in depth
- Instant height adjustment assisted by gas spring
- Mounted on wheeled base
Product highlights:
- Practical design and simple functionality
- Full width adjustability to maximise room coverage
- Easy assembly
- Quick height and width adjustment
- Easy to clean

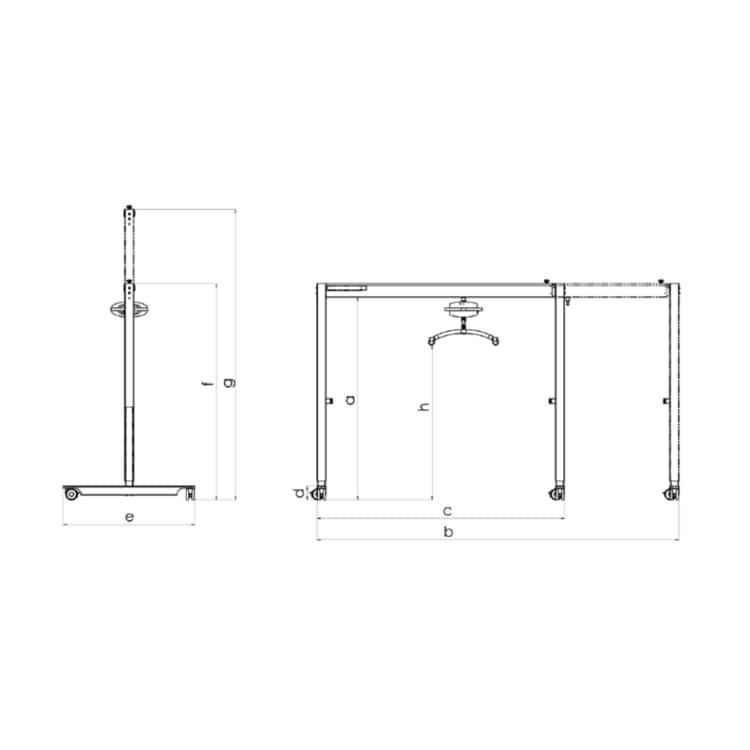

Code: | CH9716 |
A (mm): | 1774 |
B (mm): | 3160 |
C (mm): | 4160 |
D (mm): | 122 |
E (mm): | 1150 |
F (mm): | 1891 |
G (mm): | 2541 |
H (mm): | 1770-2420 |
Max load, SWL (kg): | 275 |
Item Code | Item Name |
---|---|
CH9710-1 | Luna 275kg, Weigh Scale Module, M-class Strap Mount |
CH9727 | Luna 275kg Gantry Ceiling Hoist Complete inc charger Handset & Spreader Bar |
CH9847-36 | Yoke, 2 hook, for Strap, 360mm, 275kg, to suit CH9727, Luna |
CH9847-48 | Yoke, 2 hook, for Strap, 480mm, 275kg, to suit CH9727, Luna |
CH9847-58 | Yoke, 2 hook, for Strap, 580mm, 275kg, to suit CH9727, Luna |
CH9848 | 4-Point yoke, spreader bar with Strap, 275kg, to suit CH9727, Luna |
CH9849 | 3-Point yoke, spreader bar with Strap, 275kg, to suit CH9727, Luna |
CH9850 | Luna Replacement Safety Key for Emergency Lowering |
CH9851 | Charger for Luna, charger only |
CH9852 | Luna Replacement Handset Docking station |
CH9854-132 | Luna replacement Hand Control 1320mm, bottom exit cable |
CH9854-162 | Luna replacement Hand Control 1620mm K1.1 (015-03102) |
CH9854-190 | Luna replacement Hand Control 1900mm K1.1 (015-03103) |
CHE01502025 | Replacement Battery Set for Luna (3x12V) |
CHE01601210 | Luna T-Hand with Bayonet Service Tool |
CHE018-10112 | Bayonet with Microswitch and cable to suit Luna Gantry Hoist |
CHE01810017 | Main PCB, Print Card for Luna Hoist, 1 Channel, 275kg |
CHE01810018 | Main PCB, Print Card for Luna Hoist, 1 Channel, 200kg |
CHE01810030 | Potentiometer for Luna Gantry Hoist |
CHE01810101 | Luna Plastic Cover Mounting Rings with screws |
CHE01810106 | Side Foil for Luna, IPx4, without Buttons |
CHE01810107 | Side Foil for Luna IPx4, with 8 Pin Plug for Hand Control |
CHE01810109 | Thermostat to suit Luna |
CHE01810113 | Luna Strap outlet IPx4, Service pack |
CHE26300201 | Cable 1850mm incl. RJ plugs for charger holster Luna Hoist |
CHE26300812 | PCB to Battery Cable with Fuse Holder to suit Luna |
CHE26501500 | Fuse Kit for Luna print card 15A |
CHE71030563 | Luna Gantry Hoist - Strap Wheel |
CHE71060135 | Lifting Strap with Hook for Luna Gantry Hoist |
