CODE: CNTRPORT
Contour Portare Patient Trolley
An all-purpose electric transport and recovery stretcher where Modsel design meets budget constraints.
Helping patients on and off a general purpose stretcher has never been this easy or safe with a design that allows the mattress base down to 400mm, lower than a standard office chair height!
Transport must always be considered and with our new E-Point system, a strong grip with the floor and solid, perfectly centred steer wheel ensures the stretcher always accurately tracks and turns. We are now able to bring Modsel stretcher design into department areas such as emergency, theatre and day surgery at our most affordable price ever, helping to meet tighter budget constraints and maximising the number of working units available.
- Economical transfer trolley
- E-Point steering system
- Emergency CPR backrest release

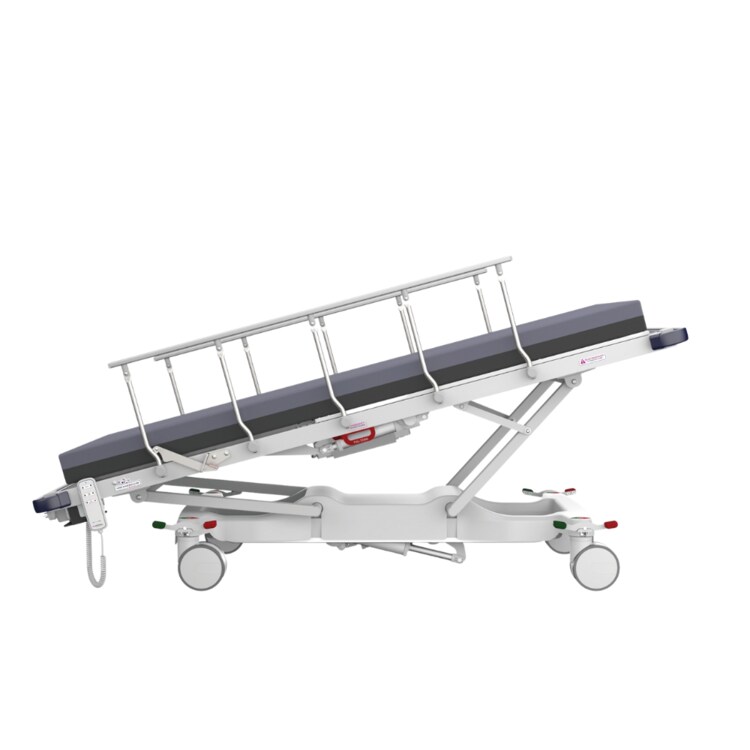

- 15° head and foot down Trendelenburg
- 300kg safe working load
- 400 - 830mm height range
- Fully electric operation
- 150mm twin wheel castors
- 2135 x 815mm overall size
- 965mm wide top option
- Dropside handrail PVC upgrade option
- Includes foot end rail & electric knee break
- Choice of dropside armrest/end rail colours for easy identification: Flame Red, Midnight Blue, Deep Violet
- MADE IN AUSTRALIA
| Code: | CNTRPORT |
| Dimensions (mm): | 2135 L x 815 W |
| Mattress (mm): | 1900 L x 680 W |
| SWL (kg): | 300 |
| Castor size (mm): | 150 |
| Height range (mm): | 400-830 |
| Wide top option (mm): | 965 |
| Colours: | Flame Red, Midnight Blue, Deep Violet |
| Item Code | Item Name |
|---|---|
| CNTMLT | Meal Tray to suit Contour Patient Trolley |
| CNTRDOC | Document Holder to suit Patient Trolleys |
| CNTRFRS | Footrail Support for Patient Trolley |
| CNTRHPL | Patient Trolley Hand Control 6 Button |
| CNTRIVP | Contour Folding IV Poles |
| DPH | Modsel, Ergonomic Drop Down Push Handles, to suit Contour Patient Trolleys |
| SC0752-AC-2mIEC-8 | 2m IEC Female to Fig 8 with Earth to suit SC0752 |
| SC0752-CSC | Modsel, Cable Stop Clamp, to suit Retractor Power Cable |
| SC0752-V2 | Replacement IEC Main power cable retracta-cable, includes plastic mount |
| SC0752-V2-K | Replacement IEC Main power cable retracta-cable, includes plastic mount- Kit |
| SC0753 | Modsel, Breakaway Cable AU Mains Power / IEC C13 |
| SC0753-BL | Modsel, Breakaway Lanyard, to suit Cable Retractor Breakaway Cable |
| SC0757 | Handset Extender Cable, 13-pin |
| SC0758 | Y-Cable for Dual Handset, Plug n Play, 13 Pin |
| SC0758-AC-MP | Steel Mounting Plate to attach Dewert Handset Mounting Block |
| SC0770-SP-CAH-Clip | Column, Actuator, Handset Clip to suit MCLII Control Box |
| SC0771 | Control Box to suit Portare |
| SC0772 | Charging Station/Battery Interface |
| SC0775 | Battery to suit Patient Trolley |
| SC0775-C | Battery Cell Replacement |
| SC0779 | Mainspower Cable for Patient Trolleys/Recline Chairs |
| SC0784-S | Patient Trolley Hand Control 6 Button(D) - Short Cable |
| SC0787 | Backrest Actuator |
| SC0790 | Hi-Lo Actuator to suit Portare (AC-81159) |
| SC0790.V1 | Hi-Lo Actuator to suit Portare (AC-74108) |
| SC081604 | Patient Trolley - Extrusion End Cap - Red |
| SC081605 | Patient Trolley - Extrusion End Cap - Green |
| SC081609 | Patient Trolley - Extrusion End Cap - Purple |
| SC081610 | Patient Trolley - Extrusion End Cap - Pastel Blue |
| SC081630 | Patient Trolley - Extrusion End Cap - Orange |
| SC081631 | Patient Trolley - Extrusion End Cap - Dark Blue |
| SC081632 | Patient Trolley - Extrusion End Cap - Pink |
| SCP0050 | Portare Hi/Low Arm Foot End (New Style) |
| SCP0055 | Portare Hi/Low Arm Head End (New Style) |
| SCP0060 | Wide Portare Hi/Low Arm Foot End (New Style) - With holes |
| SCP0065 | Wide Portare Hi/Low Arm Head End (New Style) - No holes |
| SCP0070 | 150mm Braking Castor to suit Portare/Portare-X. |
| SCP0074 | 150mm Braking Castor to suit Energy Chair |
| SCP0075 | Steer/Brake Pedal Assembly-RH to suit Contour Portare/-X |
| SCP0080 | Steer/Brake Pedal Assembly-LH to suit Contour Portare/-X |
| SCP0105 | Plastic Pedal Spacer to suit Portare Patient Trolley |
| SCP0117 | 5th Wheel Actuation Cam - Small (2piece) |
| SCP0122 | 5th Wheel Steer Release Actuation Lug (2 piece) |
| SCP0135 | Hi-Lo Actuator to suit Contour Portare Patient Trolley |
| SCP0135.SDS.355 | Hi-Lo Actuator to suit Contour Portare Patient Trolley |
| SCP0141 | Modsel, Replacement Portare Hi/Lo Wiring Harness |
| SCP0200 | CPR Release Handle suits Portare - Standard |
| SCP0201 | CPR Release Handle suits Portare - Wide |
| SCP0320 | Assembled Portare Tee bar bracket (New Style) |
| SCP0325 | Black Tee Bar Bush, Stepped(New Style) |
