CODE: CR1524-41

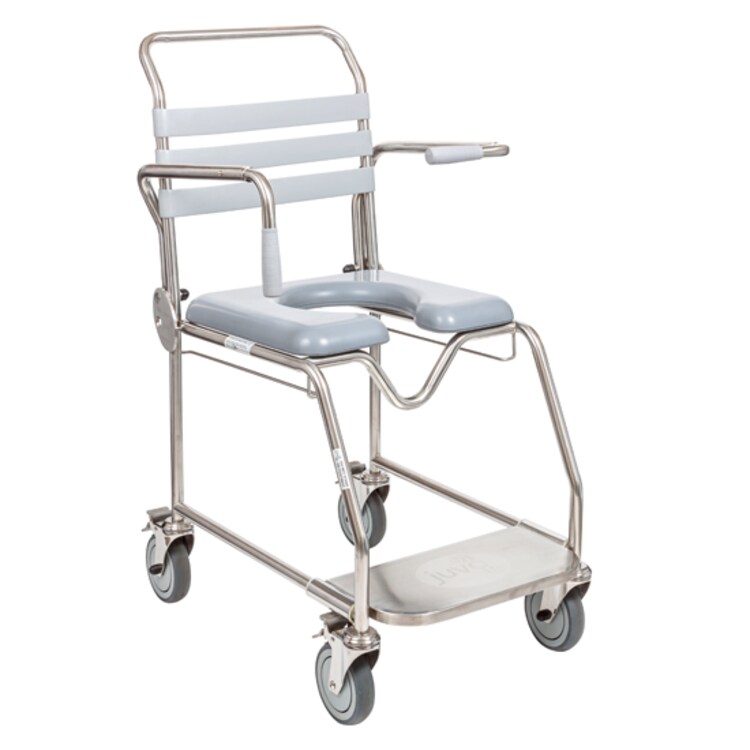

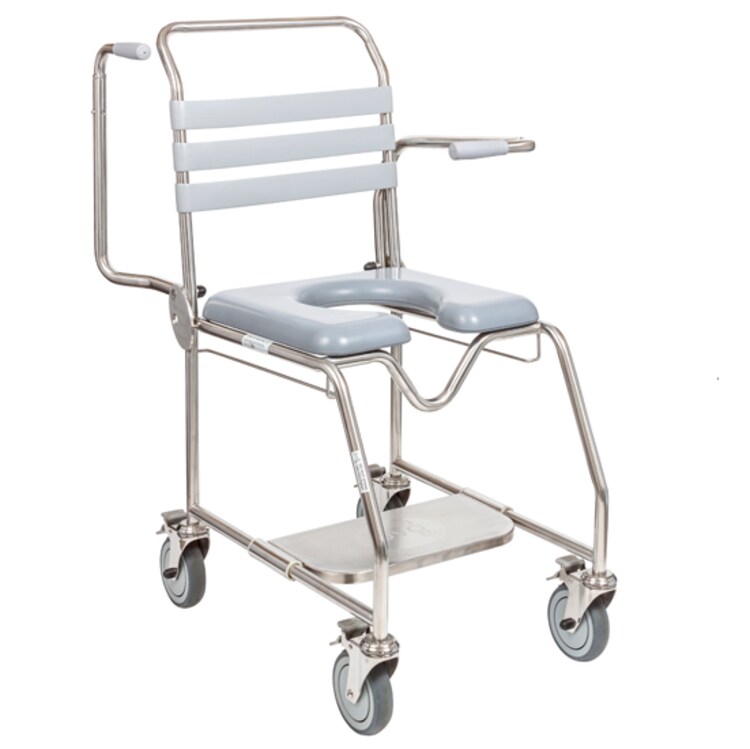

Juvo Attendant Propelled Shower Commode - Sliding Footplate - 410mm
- Assists transportation of the patient for showering and toileting
- Can be positioned over the toilet
- Durable total stainless steel frame
- Selection of seamless PU padded seats & Pressure care seats (open or closed fronts)
- Removable seat
- Reinforced seat/back frame
- Easy foot operated sliding, non-slip, weight bearing footrest platform
- Now with braking stainless steel 125mm castors
- Swing back independent armrests to assist in side transfer and patient access
- Two position height adjustable armrests
- Safety arms provide user security & safety
- Stainless steel pan rack guides
- Max User Weight 200kg
- This product is tested and certified to Australian Standards
Hygiene
- Assists transportation of patient for showering and toileting
- Clear rear open space enabling positioning over the toilet
- Easy access for hygiene with open armrest design
- Deeper access front trough design for easy cleaning
- Integral pan carrier glides. Back saver design, assists with emptying the bowl, can be removed half way, self supporting while the bowl/pan is removed
Design & Modifications
- Grade 304 stainless steel heavy wall thickness tubing forming robust frame, durable design to withstand extensive wet area use
- Open armrest design meaning smaller commode can be used in tight spaces while allowing for natural hip and thigh prominence. Eliminating "pinch point" between armrest and seat
- Reinforced seat/back frame and armrests - weight bearing.
- Comfort grip sliding footrest
- Stylish sturdy base to give confidence to client and carer
Positioning & Comfort
- Stainless steel 125mm total locking castors for effortless manoeuvring, Juvo Registered Design
- Easy removable seat, using Juvo Registered Design "Klipps" System
- Selection of seamless Polyurethane padded seats & pressure care seats (open or closed fronts)
- Swing-back independent armrests to assist in side transfer and patient access - two position height adjustment
- Locking safety arms provide user security and safety
- Flexible impervious non-woven back straps conforming to client shape for support and comfort. Antibacterial and non-suction designed straps to avoid skin tear when client is wet
Code: | CR1524-41 |
Seat width (mm): | 410 |
Width between arms (mm): | 440 |
Seat depth (mm): | 435 |
Seat height anterior (mm): | 595 |
Seat height posterior (mm): | 565 |
Seat to heel (mm): | 400 |
Width overall (mm): | 490 |
Height overall (mm): | 1020 |
Depth overall (mm): | 800 |
Armrest height from seat high (mm): | 240 |
Armrest height from seat low (mm): | 200 |
Backrest height to top strap (mm): | 340 |
Aperture, wall to rear (mm): | 225 |
Toilet bowl clearance max width x height (mm): | 360x500 |
Toilet bowl clearance underside pan glides max width x height (mm): | 360x480 |
Max user weight (kg): | 200 |
Chair weight excluding seat (kg): | 12.4 |
Item Code | Item Name |
---|---|
CR343R | Armrest Padded - RHS when seated |
CR343L | Armrest Padded - LHS when seated |
CR304 | Safety Arm Button Stainless Steel |
CR315 | Safety Arm Spring Stainless Steel |
CR307 | Safety Arm with Handgrip , Spring and Button |
CR302 | Handgrip, Grey to suit Juvo Shower Commodes |
CR342 | Juvo Arm Retaining Bolt Kit (Ea) |
CR325PL | Yellow Pintle to suit Juvo Shower Commode |
CR266 | Quick Release Rear Wheel Axle |
CR300 | Juvo Stainless Steel Castor with Bolt and Expanding Pintle |
