CODE: CR1524-46E

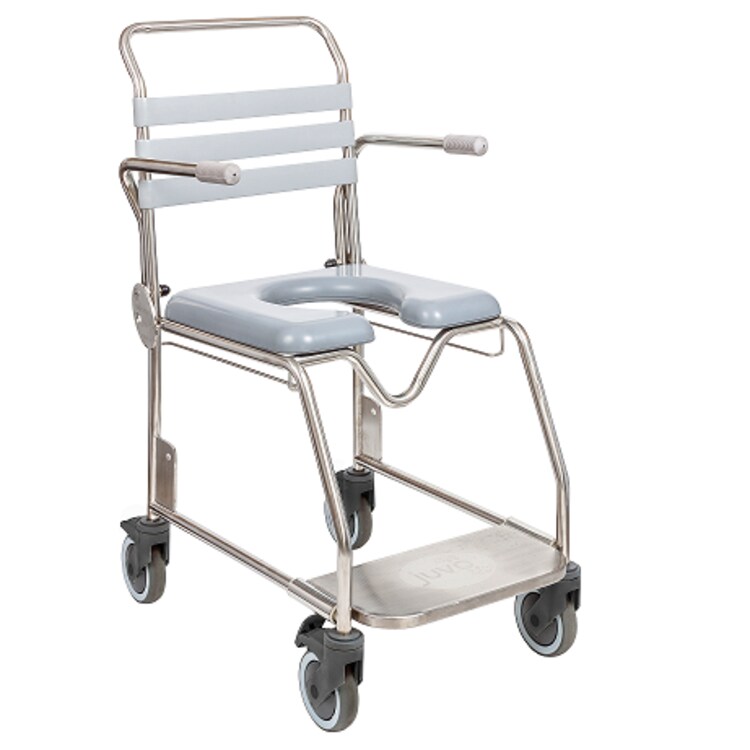

Juvo Hybrid Shower Commode With Sliding Footplate - 460mm
- Assists transportation of the patient for showering and toileting
- Can be positioned over the toilet
- Durable total stainless steel frame
- Selection of seamless PU padded seats & Pressure care seats (open or closed fronts)
- Removable seat
- Reinforced seat/back frame
- Easy foot operated sliding, non-slip,weight bearing footrest platform
- Now with braking stainless steel 125mm castors
- Swing back independent armrests to assist in side transfer and patient access
- Two position height adjustable armrests
- Safety arms provide user security & safety
- Stainless steel pan rack guides
- Max User Weight 200kg
- This product is tested and certified to Australian Standards
Hygiene
- Assists transportation of patient for showering and toileting
- Clear rear open space enabling positioning over the toilet
- Easy access for hygiene with open armrest design
- Deeper access front trough design for easy cleaning
- Integral pan carrier glides. Back saver design, assists with emptying the bowl, can be removed half way, self supporting while the bowl/pan is removed
Design & Modifications
- Grade 304 stainless steel heavy wall thickness tubing forming robust frame, durable design to withstand extensive wet area use
- Open armrest design meaning smaller commode can be used in tight spaces while allowing for natural hip and thigh prominence. Eliminating "pinch point" between armrest and seat
- Reinforced seat/back frame and armrests - weight bearing.
- Comfort grip sliding footrest
- Stylish sturdy base to give confidence to client and carer
Positioning & Comfort
- Stainless steel 125mm total locking castors for effortless manoeuvring, Juvo Registered Design
- Easy removable seat, using Juvo Registered Design "Klipps" System
- Selection of seamless Polyurethane padded seats & pressure care seats (open or closed fronts)
- Swing-back independent armrests to assist in side transfer and patient access - two position height adjustment
- Locking safety arms provide user security and safety
- Flexible impervious non-woven back straps conforming to client shape for support and comfort. Antibacterial and non-suction designed straps to avoid skin tear when client is wet
Code: | CR1524-46E |
Seat Width (mm) | 460 |
Width between arms (mm) | 490 |
Seat depth (mm) | 435 |
Seat height Anterior (mm) | 595 |
Seat height Posterior (mm) | 565 |
Seat to Heel (mm) | 400 |
Width Overall (mm) | 540 |
Height Overall (mm) | 1020 |
Depth Overall (mm) | 800 |
Armrest height from seat High (mm) | 240 |
Armrest height from seat Low (mm) | 200 |
Backrest height to top strap (mm) | 340 |
Aperture, wall to rear (mm) | 225 |
Toilet bowl clearance max width x height (mm) | 410x500 |
Toilet bowl clearance underside pan glides max width x height (mm) | 410x480 |
Max user weight (kg) | 200 |
Chair weight excluding seat, (kg) | 12.8 |
