CODE: CR1536

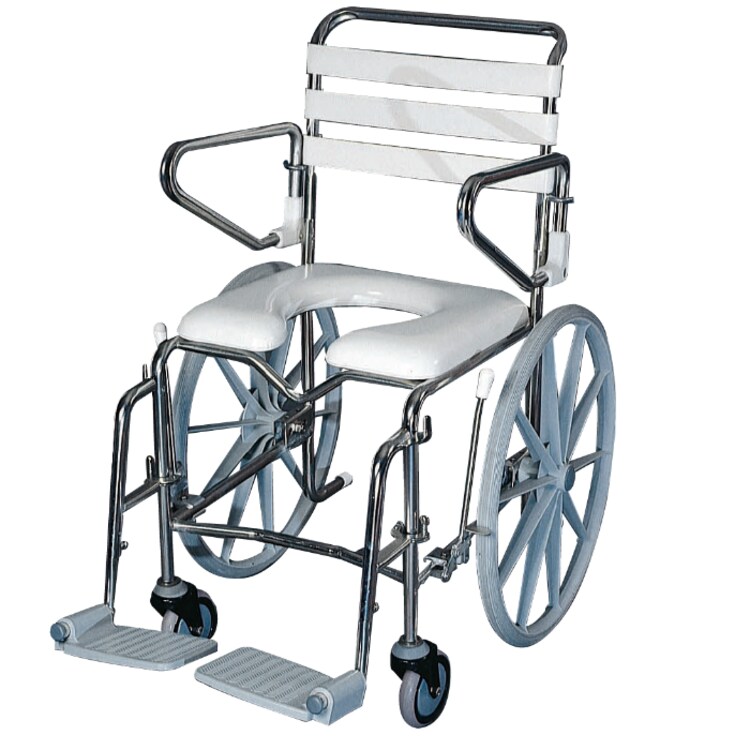

Self Propelled Shower Commode - 440mm

  • Full stainless steel rigid frame 440mm width
  • Swing away adjustable footplates
  • Front locking castors
  • Open or closed front polyurethane padded seat
  • Swing back arms
Code:CR1536
Back of chair to back of seat aperture (mm):190
Floor to seat (mm):590
Footrest height (mm):(380) 480-530
Overall depth (mm):945-1015
Overall height (mm):1000
Overall width (mm):615
Push bar handle height (mm):1000
Toilet bowl clearance (mm):505
Top of arm above seat (mm):240
Top of back rest above seat (mm):365
User weight (kg):160
Width between arms (mm):460
Item CodeItem Name
CR125Pan Carrier Stainless Steel to suit CR1533, CR1536
CR149Elevating Legrest - Left
CR150Elevating Legrest - Right
CR154Stump Support - Right Hand Side
CR154LStump Support - Left Hand Side
CR280Juvo Commode Self Propelled Replacement Rear Wheel 22"
CR297-1Legrest Height Adjustment Lever, Plastic, Red, with Stainless Steel Bolt, to suit CR1533, CR1536, CR1538, CR1544
CR300Juvo, Stainless Steel Castor with Bolt and Expanding Pintle
CR301Juvo, Padded Arms, Polyurethane, Black, to suit Juvo Shower Commodes
CR320Removable Arms to Suit CR1533-55/60/65 (Discontinued)
CR355Footrest Swing Away (Pair) to suit CR1533/36/38
CR356Footplate Plastic to suit CR1533/36/38/44
CR360Pan Carrier/Seat Clips (Pair)
CR361Brake Pair for CR1536/38/40
CR286Juvo, Arm Trough (Each)
