CODE: CR1660-46A

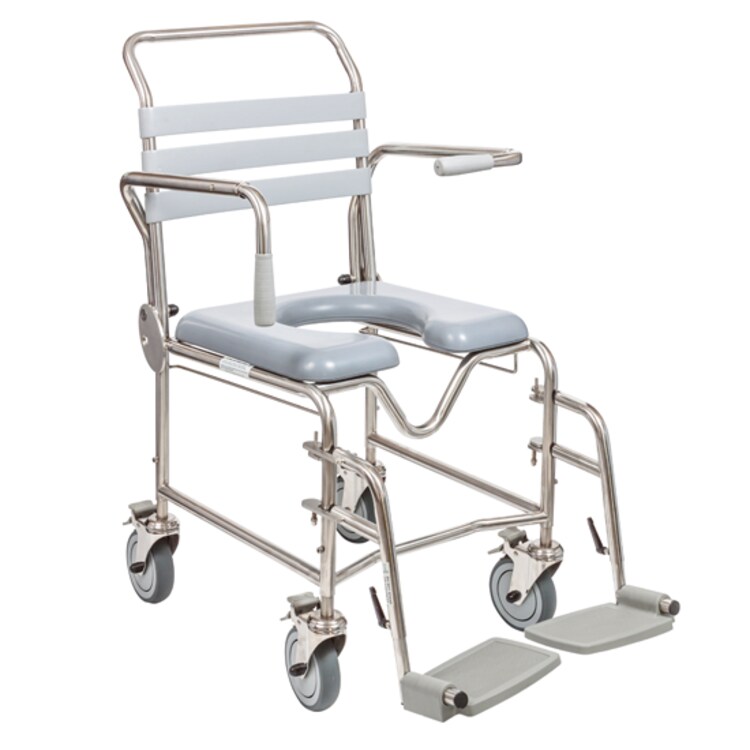

Juvo Attendant Propelled Shower Commode - 460mm (Adjustable Height)
- Assists transportation of the patient for showering and toileting
- Can be positioned over the toilet
- Durable total stainless steel frame
- Selection of seamless PU padded seats & Pressure care seats (open or closed fronts)
- Removable seat
- Reinforced seat/back frame
- Swing away, removable & height adjustable legrests with flip-up footplates.
- Patented tearsafe design, no protrusions
- Now with braking stainless steel 125mm castors
- Swing back independent armrests to assist in
- Side transfer and patient access
- Two position height adjustable armrests
- Safety arms provide user security & safety
- Stainless steel pan rack guides
- This product is tested and certified to Australian Standards
Hygiene
- Assists transportation of patient for showering and toileting
- Clear rear open space enabling positioning over the toilet
- Easy access for hygiene with open armrest design
- Deeper access front trough design for easy cleaning
- Integral pan carrier glides. Back saver design, assists with emptying the bowl, can be removed half way, self supporting while the bowl/pan is removed
Design & Modifications
- Grade 304 stainless steel heavy wall thickness tubing forming robust frame, durable design to withstand extensive wet area use
- Open armrest design meaning smaller commode can be used in tight spaces while allowing for natural hip and thigh prominence. Eliminating "pinch point" between armrest and seat
- Reinforced seat/back frame and armrests - weight bearing.
- Stylish sturdy base to give confidence to client and carer
Positioning & Comfort
- Stainless steel 125mm total locking castors for effortless manoeuvring, Juvo Registered Design
- Easy removable seat, using Juvo Registered Design "Klipps" System
- Selection of seamless Polyurethane padded seats & pressure care seats (open or closed fronts)
- Swing-back independent armrests to assist in side transfer and patient access - two position height adjustment
- Locking safety arms provide user security and safety
- Flexible impervious non-woven back straps conforming to client shape for support and comfort. Antibacterial and non-suction designed straps to avoid skin tear when client is wet
Code: | CR1660-46A |
Seat Width (mm) | 460 |
Width between arms (mm) | 490 |
Seat depth (mm) | 435 |
Adjustable Seat height | adjustable 4 settings at 30mm |
Seat height Anterior (mm) | 505-595 |
Seat height Posterior (mm) | 475-565 |
Seat to Heel (mm) | 320-575 |
Width Overall (mm) | 540 |
Height Overall (mm) | 1020 |
Depth Overall (mm) | 850 |
Armrest height from seat High (mm) | 240 |
Armrest height from seat Low (mm) | 200 |
Backrest height to top strap (mm) | 340 |
Aperture, wall to rear (mm) | 225 |
Toilet bowl clearance max width x height (mm) | 410x500 |
Toilet bowl clearance underside pan glides max width x height (mm) | 410x480 |
Max user weight (kg) | 200 |
Chair weight excluding seat, (kg) | 14 |
Item Code | Item Name |
---|---|
CR343R | Armrest Padded - RHS when seated |
CR343L | Armrest Padded - LHS when seated |
CR315 | Safety Arm Spring Stainless Steel |
CR303 | Flip Over Arm For Shower Commode |
CR302 | Handgrip, Grey to suit Juvo Shower Commodes |
CR298 | Legrest Spring & Nut Stainless Steel |
CR297 | Legrest Lever, Plastic Black w.S/S Bolt |
CR342 | Juvo Arm Retaining Bolt Kit (Ea) |
CR325PL | Yellow Pintle to suit Juvo Shower Commode |
CR266 | Quick Release Rear Wheel Axle |
CR300 | Juvo Stainless Steel Castor with Bolt and Expanding Pintle |
CR296 | Legrest Assembly Swing away Right - Juvo |
CR293L | Lower Legrest with Footplate - Left |
CR293R | Lower Legrest with Footplate - Right |
