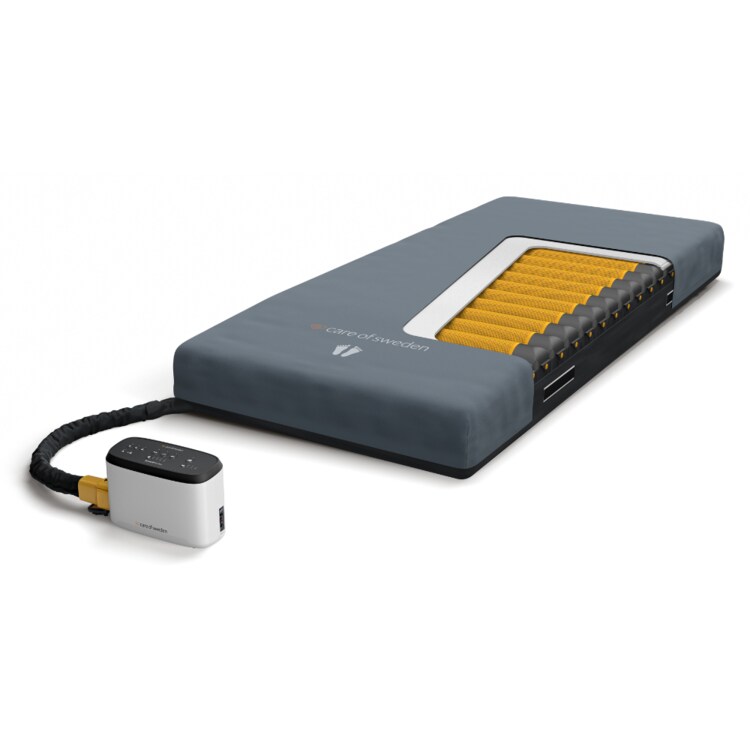

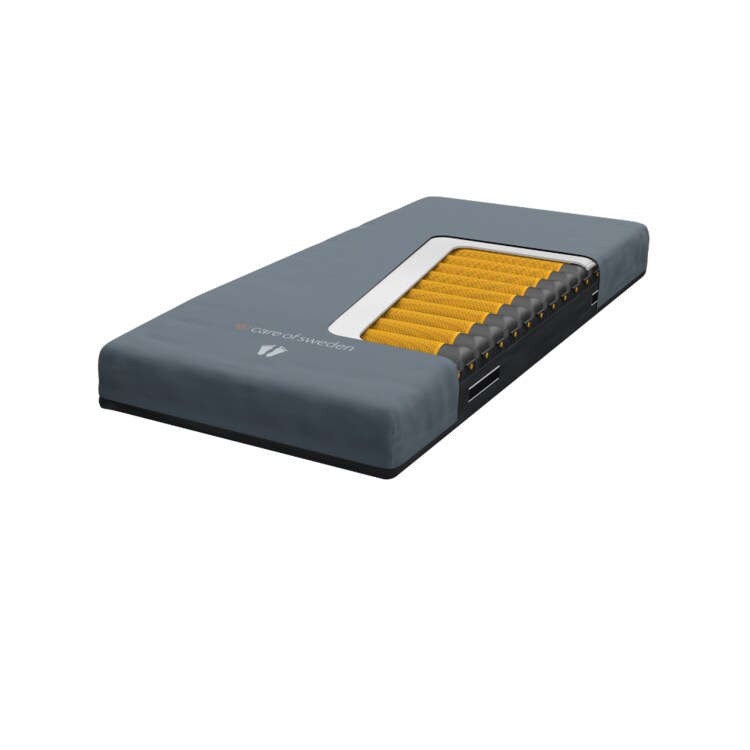

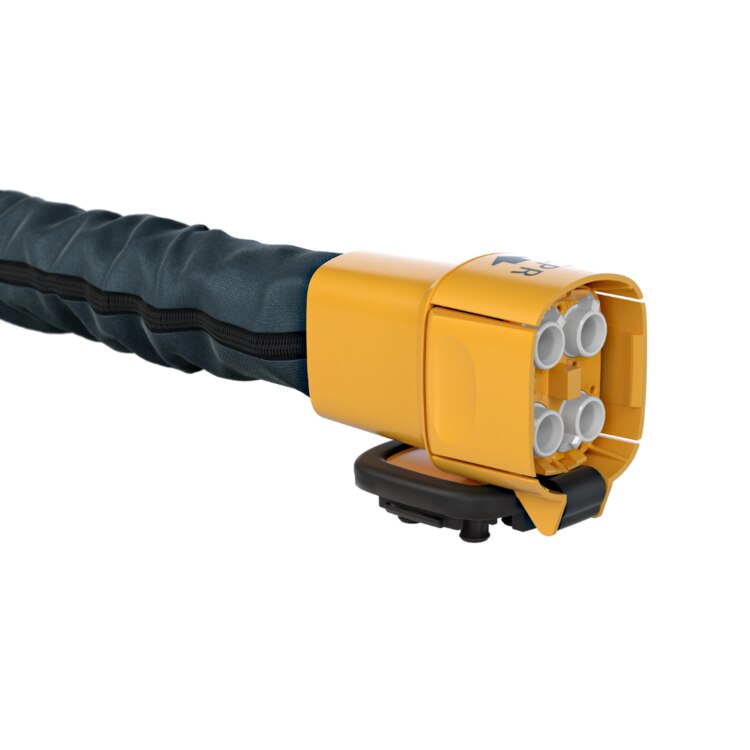

Care of Sweden, CuroCell A4 Plus Mattress System with 1.1m Hose, 1050mm x 2000mm, (SWL: 160kg–454kg)
The CuroCell® A4 CX20 Plus has been developed to support the prevention and treatment of pressure injuries, especially for individuals living with higher body weights—people who are too often overlooked in standard care. It’s more than a mattress replacement system; it’s a responsive, intelligent solution designed to improve quality of life.
Using advanced AI and high-precision sensors, the system automatically adjusts to the individual’s weight, height, and position—delivering tailored pressure redistribution and reducing the need for manual handling. This ensures not only better comfort but a safer, more dignified experience for the patient, and peace of mind for caregivers.
At its heart is the clinically proven Pulsating Mode™, which has been shown to reduce healing time for pressure injuries from 155 days to just 30. Combined with silent operation and minimal surface movement, the system supports restful, uninterrupted sleep—crucial for healing and wellbeing.
With a weight capacity of up to 454 kg, the CuroCell® A4 CX20 Plus brings clinical excellence and human compassion together in one dependable solution.
It integrates:
- Gentle Alternating Low Pressure™ (GALP)
- Constant Low Pressure (CLP)
- Maximum Pressure (Caring Mode)
- Pulsating Mode™
Each program has been designed to deliver optimal pressure relief, stability, and comfort.
The system also features a vapour-permeable, liquidproof hygiene cover with welded seams to reduce skin breakdown, integrated heel relief, and CPR deflation for emergencies. With its modular design, components like the control unit can be replaced independently—streamlining servicing and reducing disruption to care.
Code: | CH7485 |
Pressure Ulcer Category: | Up to and including Category IV |
Recommended User Weight: | 160 kg to 454 kg |
Type of Support Surface: | Replacement mattress |
Size – Support Surface (W x L x H): | 90/100/105/120 x 200 x 20 cm |
Material – Air Cells: | TPU-coated nylon |

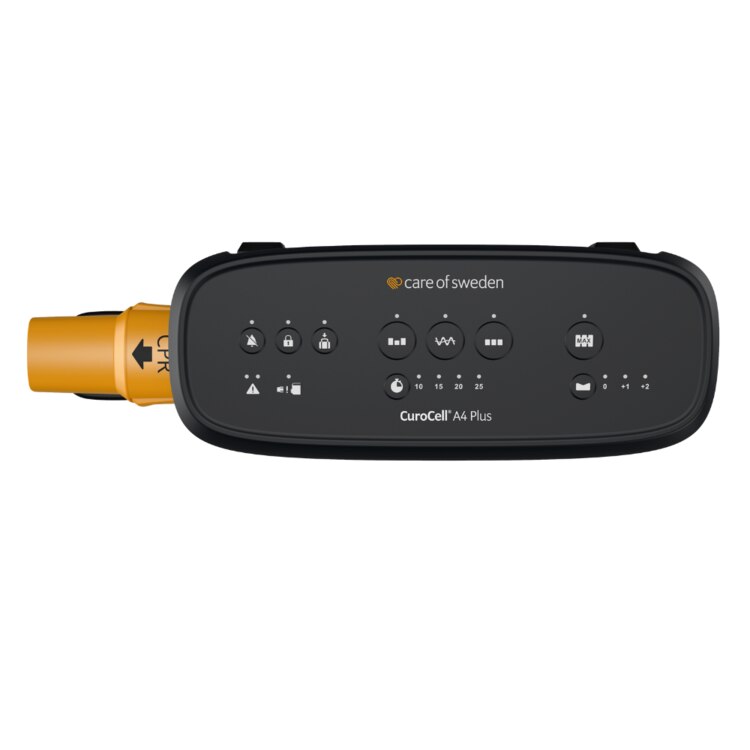

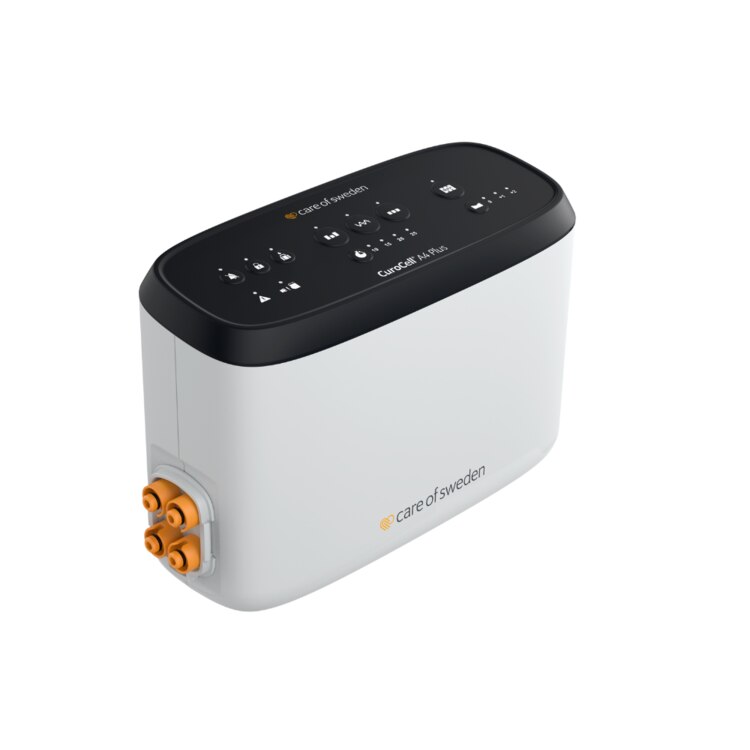

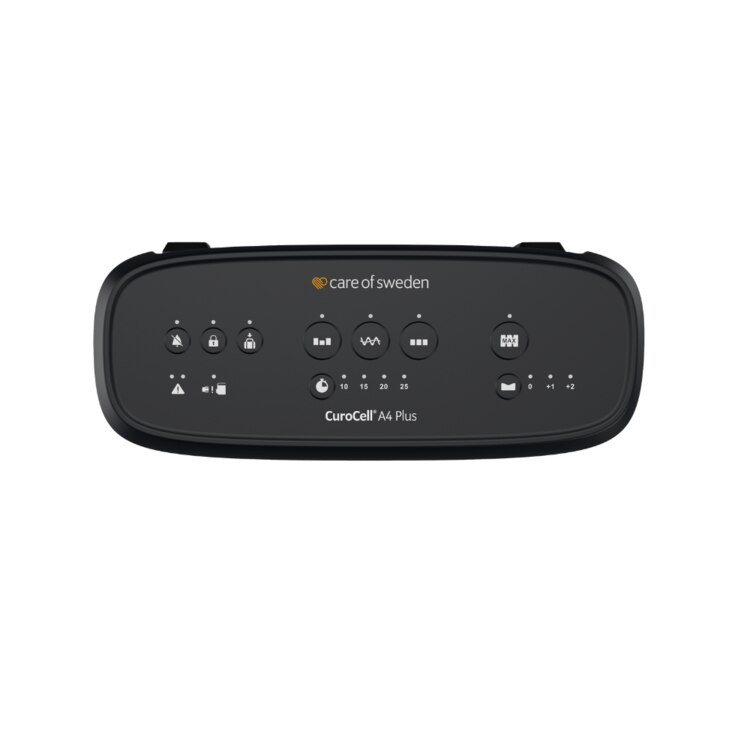

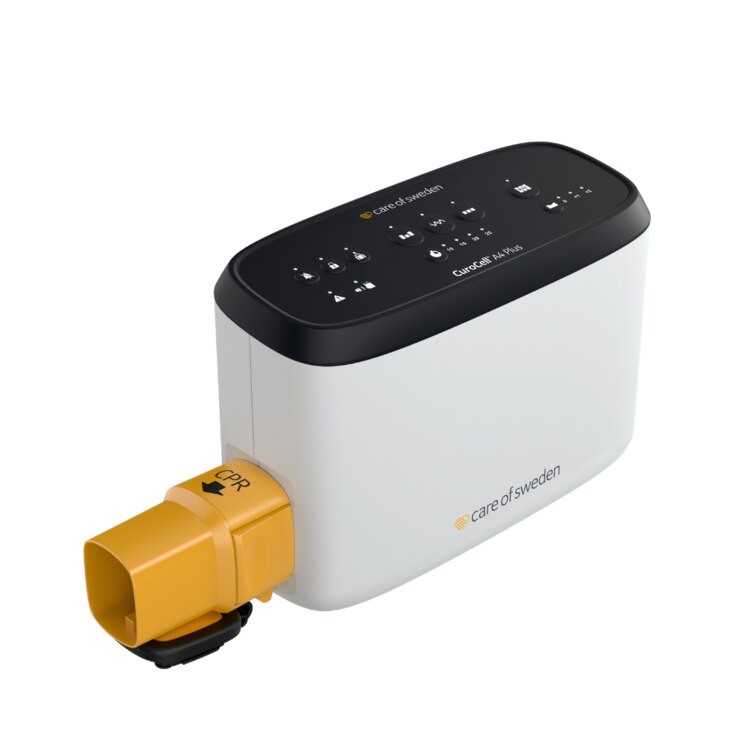

Size – Control Unit (D x L x H): | 11 x 30 x 20 cm |
Sound Level – Control Unit: | Max 17 dBA (silent), 25 dBA (max) |
Input Voltage: | AC100–240V, 50–60Hz |
Output Voltage: | 12V DC (external power supply) |
Cleaning Instructions: | Wipe with disinfectant or wash up to 95°C, tumble dry |
Optional Accessories: | Transport bag |
Other Features: | Integrated heel function, individual replaceable cells, CPR valve, safety air mattress, soft inner cover, mesh innercover, cable holder, PVC-free, service-free for 5 years |
Cover Type: | Hygiene cover, 61% polyester / 39% polyurethane, welded seams, vapour permeable |
CE Marking: | Control unit and surface separately registered, MDR (EU) 2017/745 compliant |
