CODE: CNTREN

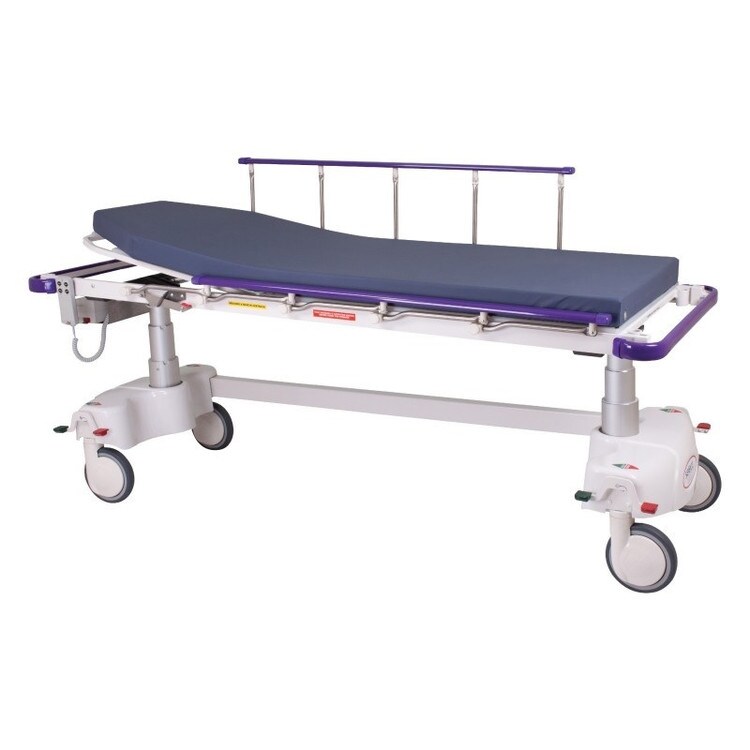

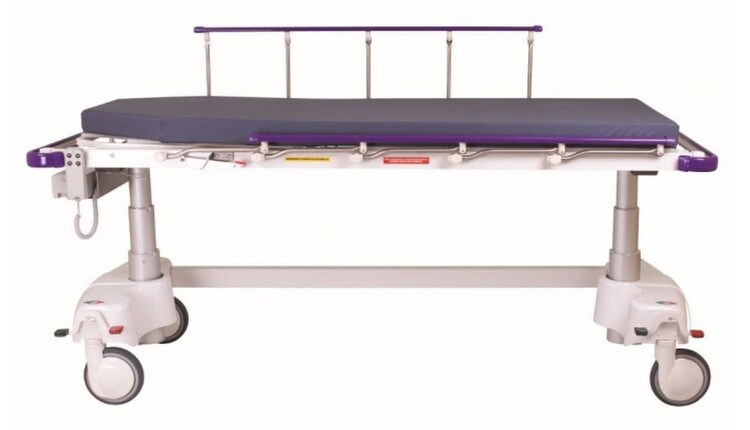

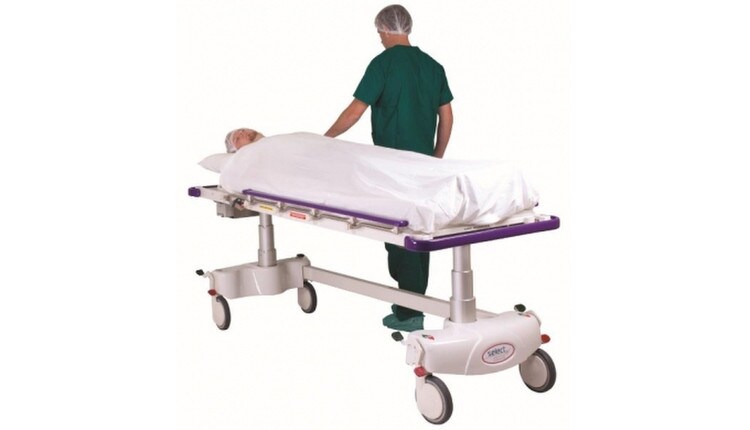

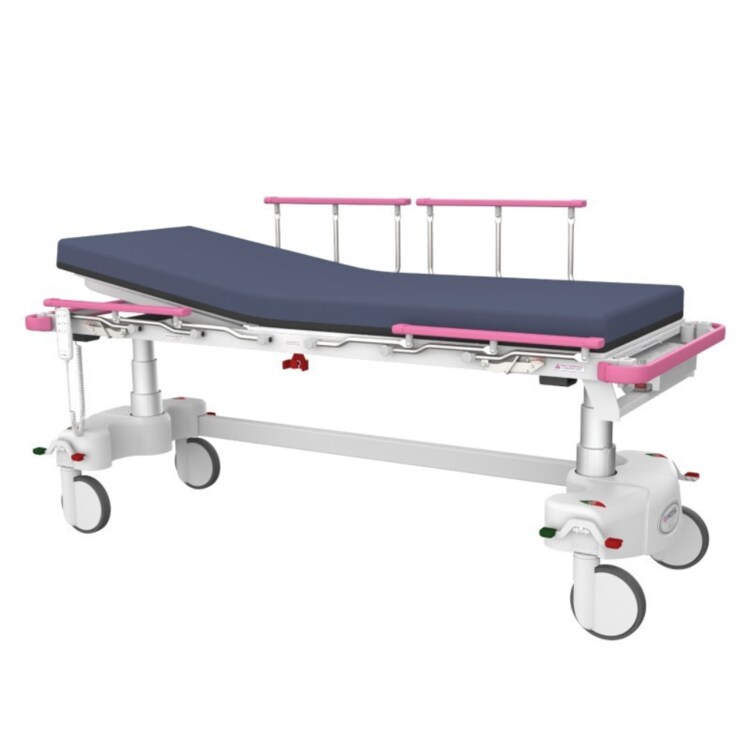

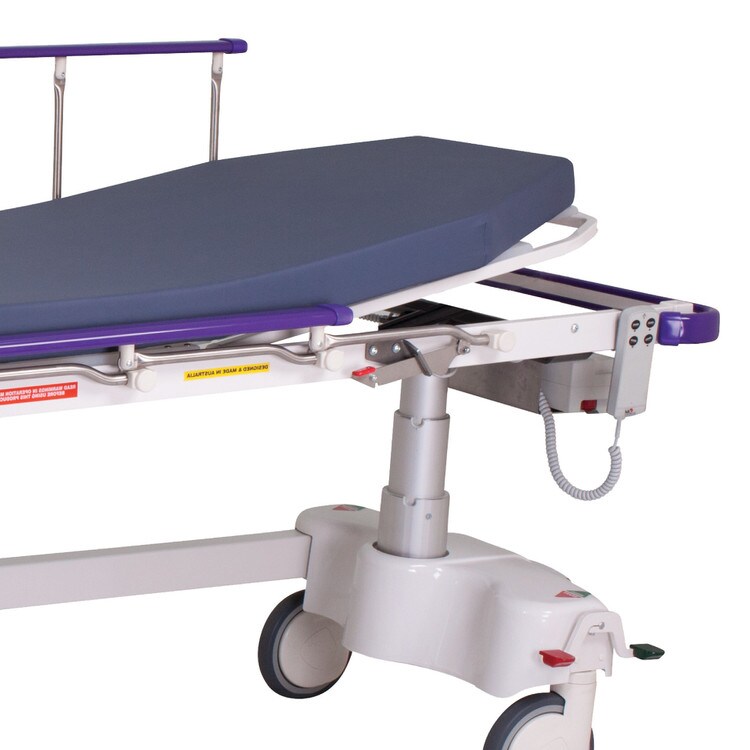

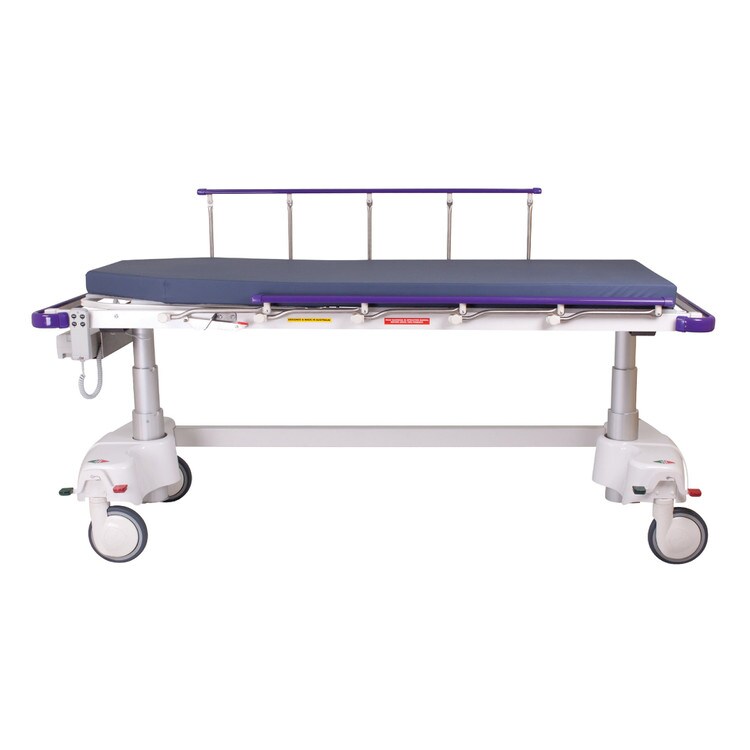

Contour Endo-X Patient Trolley
The endoscopy imaging stretcher with a 'C' base for complete freedom of camera movement.
An increased distance between the lifting columns of this stretcher allows excellent coverage with the C-Arm X-Ray camera, avoiding the risks of re-positioning and moving patients during procedures.
Complete freedom of movement is also facilitated by the single rear bar joining the stretcher base, which creates ample space for the camera and leaves no restriction to the working height required by staff.
- Increased column spacing with left or right hand chassis
- C shaped base for maximum camera clearance
- Emergency CPR backrest release
- 15° head and foot down Trendelenburg
- Split dropside option (shown) and mid-position catch upgrades
- 300kg safe working load
- Electric height range: 570 - 940mm
- 200mm large bearing castors
- 2135 x 815mm overall size
- 705 narrow and 965mm wide top options
- Choice of dropside armrest/end rail colours for easy identification: Flame Red, Midnight Blue, Deep Violet
- MADE IN AUSTRALIA
Code: | CNTREN |
Dimensions (mm): | 2135 L x 815 W |
Mattress (mm): | 1900 L x 680 W |
SWL (kg): | 300 |
Castor size (mm): | 200 |
Electric height range (mm): | 570-940 |
Narrow top option (mm): | 705 |
Wide top option (mm): | 965 |
Trendelenburg, hand and foot down: | 15° |
Colours: | Flame Red, Midnight Blue, Deep Violet |
